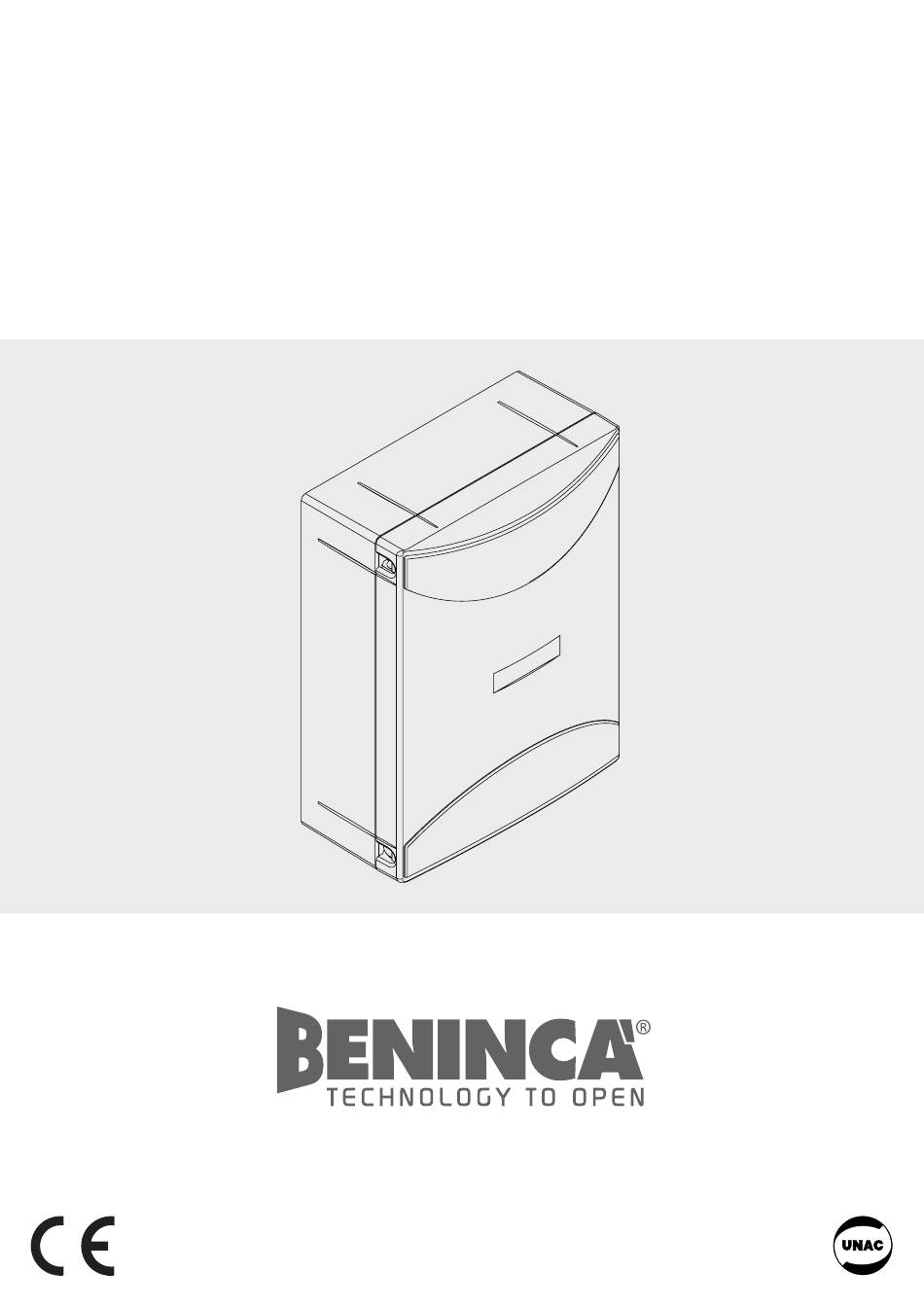

- Page 1 L8542589 02/2012 rev 1 BRAINY 24 UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 F2:1.6AT (230V) F2:3.2AT (115V) II°CH/SERL 24Vac Code _ _ _ _ J1 DAS Close DAS 8K2 J1 DAS Open DAS N.C. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 24Vac/dc PHOTO LAMP...
-
Page 3: Encoder Wiring
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Collegamento ENCODER ENCODER WIRING + s - + s - 3+3 x 0.5mm max 10m test1:on test2:ON 24Vac... - Page 4 Via Capitello, 45 - 36066 Sandrigo (VI) - Italy Declares that the product: Command central for 1/2 24Vdc motor, for single or sliding doors: BRAINY 24 is compliant with the conditions of the following EC Directives: • DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND COUNCIL of December 15 2004 regarding...
-
Page 5: Technical Data
433,92 MHz confgurabile (rolling-code or programmable + rolling-code) Rolling code transmitters supported BRAINY 24 CONTROL UNIT AUTOSET FUNCTION IMPORTANT: The control unit is equipped with the Autoset function to automatically set the main functioning values based on the type of installation. - Page 6 Step-by-Step Input, step-by-step push button (Normally open contact) COM/ENC+ Common for Limit switch and all the command inputs or encoder power supply. ENC- Input for GND Encoder connection (see Fig.2). Input, sensitive edge contact SENSITIVE Resistive edge: “DAS” Jumper closed 27-28 EDGE Mechanical edge: “DAS”...
-
Page 7: Parameters (Par)
PARAMETERS, LOGIC AND SPECIAL FUNCTIONS The tables below describe the individual functions available in the control unit. PARAMETERS (PAR) MENU FUNCTION MEMO MIN-MAX-(Default) Automatic closing time. Active only with logic “TCA”=ON. 1-240-(40s) At the end of the set time the control unit orders a closing manoeuvre. Operating time, motor 1. - Page 8 The intervention threshold of the anti-crashing device (Encoder) during the phase SeaU at normal speed is adjusted.* 0-99-(0%) 0:Off-1:minimum sensitivity - 99: maximum sensitivity The intervention threshold of the anti-crashing device (Encoder) during braking SEAR is adjusted *. 0-99-(0%) 0:Off-1:minimum sensitivity - 99: maximum sensitivity This parameter is enabled only for motors equipped with Encoder.
- Page 9 Enables or disables start at decreased speed. On: Executes start ups at decreased speed for 2 seconds to then shift to normal SOFT (OFF) speed. Off: Start at decreased speed not active. Selects the operating mode of the blinking light during the time TCA LTCA On: Blinking light on during TCA (OFF)
- Page 10 RADIO (RAD) MENU FUNZIONE By selecting this function, the receiver goes in waiting (Push) for a transmitter code to assign to the step-step func- tion. Press the key of the transmitter to assign to this function. If the code is valid, it is memorised and the message OK is displayed If the code is not valid, the message Err is displayed By selecting this function, the receiver goes into waiting (Push) for a transmitter code to assign to the second radio channel.
-
Page 11: Emergency Battery
PROTECTION CODE (CODE) It allows to type in an access protection code to the programming of the control unit. A four-character alphanumeric code can be typed in by using the numbers from 0 to 9 and the letters A-B-C-D-E-F. The default value is 0000 (four zeros) and shows the absence of a protection code. While typing in the code, this operation can be cancelled at any moment by pressing keys + and –... -
Page 12: Error Messages
DIAGNOSTICS SWO1 SWO2 SWC1 SWC2 One segment of the display is linked to each input. In the event of failure it switches on according to the following scheme. P.P. OPEN CLOSE N.C. inputs are represented by the vertical segments. N.O. inputs are represented by the horizontal segments.
