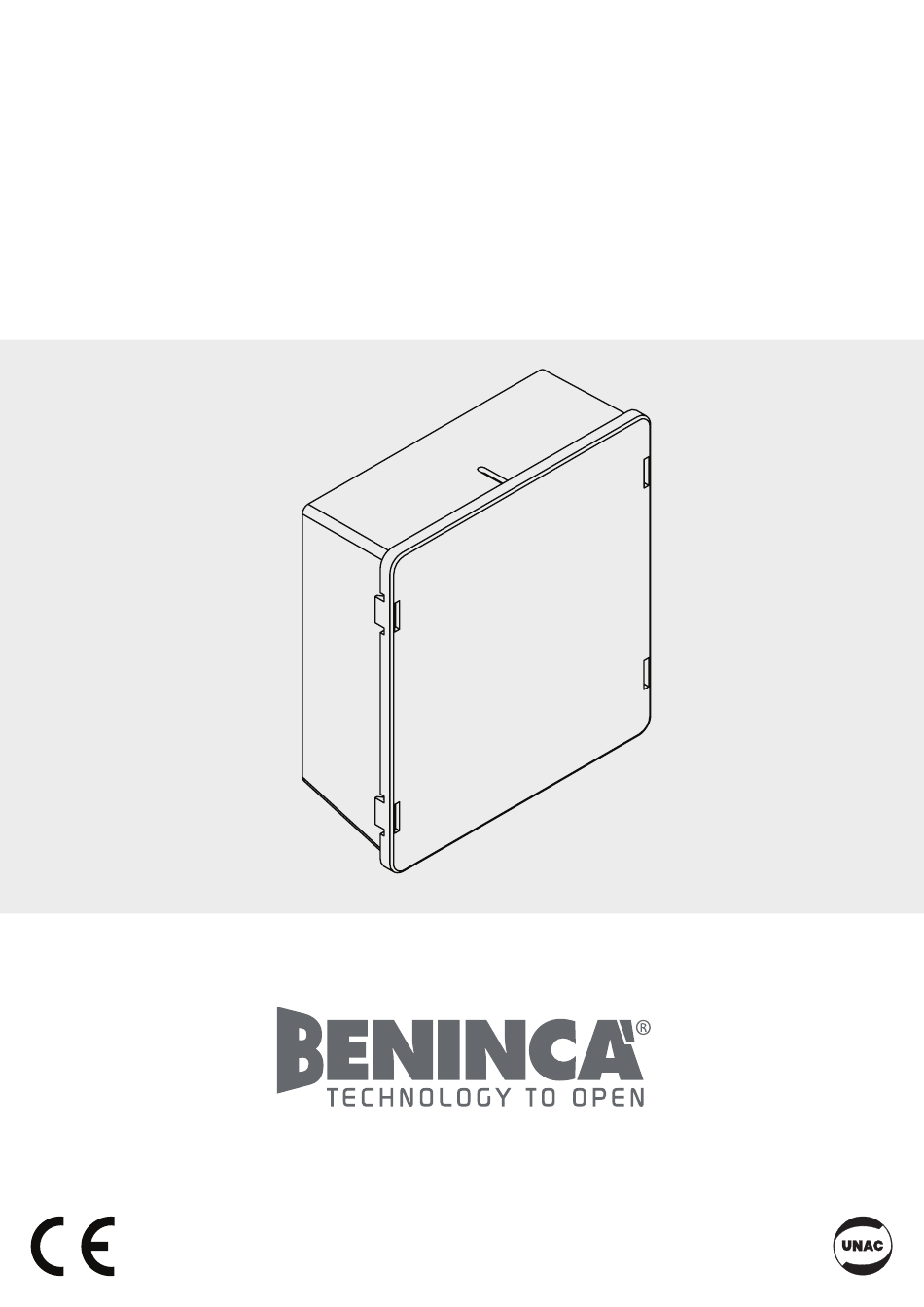

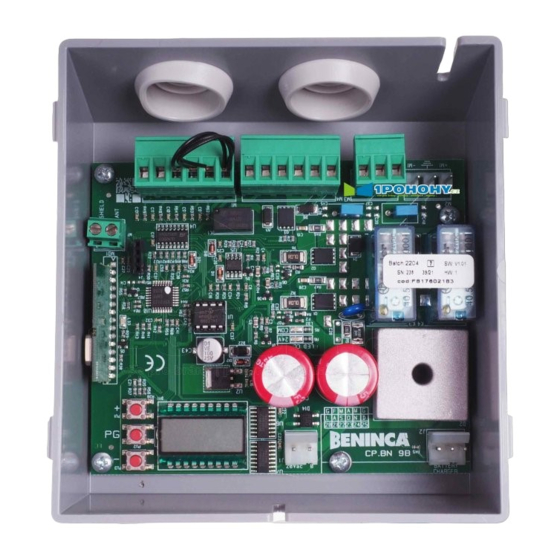

- Page 1 L8542876 02/2013 rev 2 CP.BN UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 F2:1AT (230V) F2:2AT (115V) T 1,6A BN.CB LED2 LAMP 24Vdc...
- Page 3 2ch:ON 2ch:Off Service 2ch:Off Light serl:Off serl:on 230V SCA 24Vdc Relè 24Vdc 3W max BN .2 4 V B N .24V MINV:ON MINV:OFF...
- Page 4 Via Capitello, 45 - 36066 Sandrigo (VI) - Italy Declares that the product: Command central for 1/2 230 Vac motor, for single: CP.BN is compliant with the conditions of the following EC Directives: • DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND COUNCIL of December 15 2004 regarding...
-
Page 5: Technical Data
TECHNICAL DATA Contol unit supply 24 Vdc Power supply 230 Vac 50/60 Hz or 115Vac 50/60Hz according to the version Output supply 1/2 motor 24Vdc Power maximum motor 120/120 W Output supply accessories 24Vdc 500mA max. Protection level IP44 Operating temp. -20°C / +50°C Radio receiver built in 433,92 MHz confgurabile (rolling-code or programmable + rolling-code) - Page 6 5) The gate leaves should open. In the negative, the operation wires of the motor should be inverted by turning motor 1 connector by 180° and inverting wires 26<>28 for motor M2. 6) Select the motor which should start the operation first in the opening phase by using the MINV logics, see Fig.4. 7) Carry out an autoset procedure (see SET menu).
- Page 7 The torque applied to motor 1 during braking in the opening phase is ad- Pso1 1-99-(20%) justed * The torque applied to motor 1 during braking in the closing phase is ad- Psc1 1-99-(20%) justed * The torque applied to motor 2 during braking in the opening phase is ad- Pso2 1-99-(20%) justed *...
- Page 8 The total reverse movement is enabled or disabled when the amperometric sensor is triggered. INVC On: total reversion is enabled (OFF) Off: total reversion is disabled. The control unit controls a 2sec reversion and then locks the gate leaves. Start control signal to motors: MINV On: motor 2 starts first in the opening phase.
-
Page 9: Emergency Battery
OPERATION OF THE AUTOSET MENU The autoset procedure allows for the correct adjustment of the opening/closing torques, at normal speed and during braking, of the gate leaves. 1) Before proceeding with the autoset, check that: - the movement of the gate leaves is carried out without obstacles present; - there are no objects/persons standing within the moving area of the automatic system;... -
Page 10: Example Of Programming
EXAMPLE OF PROGRAMMING Let us suppose it is necessary to: - set an automatic closing time (TCA) of 100s - activate pre-blinking Perform the operations described below step by step: Step Press Display Notes First menu First function of the first menu Value currently set for the function selected Set the desired value with the <+>...
