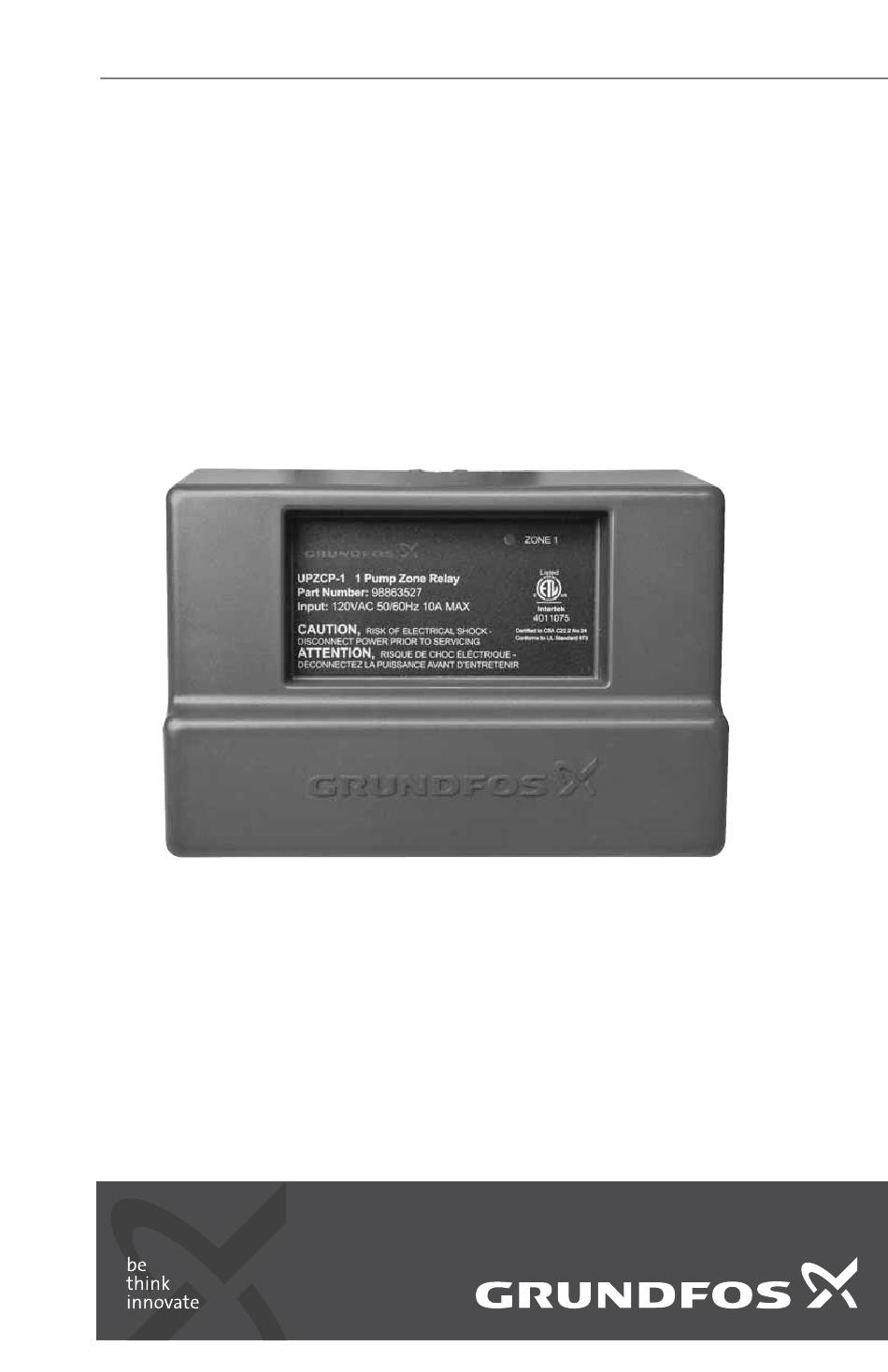

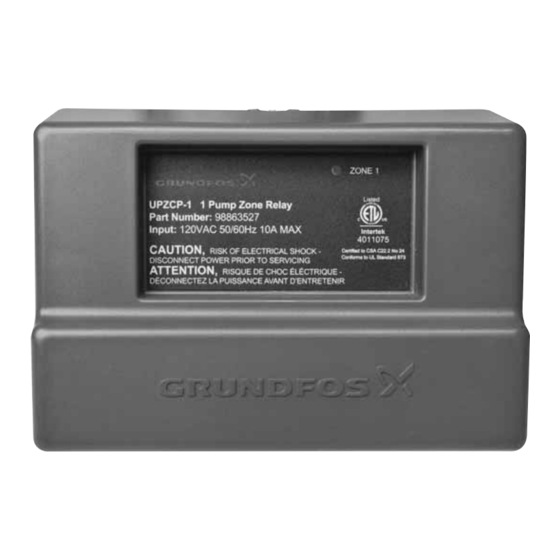

  • Page 1 GRUNDFOS INSTRUCTIONS UPZCP-1 Single-zone pump control Installation and operating instructions...

  • Page 2: Table Of Contents

    English (US) Installation and operating instructions 1.1 UPZCP-1 Original installation and operating instructions. UPZCP-1 is a single-zone pump control relay for These installation and operating instructions domestic hydronic heating systems. The relay describe Grundfos UPZCP-1. Sections 1-3 give provides control when zoning with pumps or low the information necessary to be able to unpack, voltage zone valves.

  • Page 3: Symbols Used In This Document

    2. Receiving the product MANUFACTURER WILL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL Examine the components carefully to make sure DAMAGES, LOSSES, OR EXPENSES ARISING no damage has occurred to the pump during FROM INSTALLATION, USE, OR ANY OTHER shipment.

  • Page 4: Electrical Connection

    3.2 Electrical connection 3.2.1 Overview 250 mA fuse 5 A fuse Factory jumper wire 24 VAC 40 VA Transformer Fig. 2 UPZCP-1 electrical board layout...
  • Page 5 3.2.2 Wiring Optional for 3-wire thermostat Boiler Factory jumper wire 24 VAC 40 VA Transformer Fig. 3 UPZCP-1 single-zone, one thermostat...
  • Page 6 End switch wires 4-wire zone valves 24 VAC Boiler Factory jumper wire 24 VAC 40 VA Transformer Fig. 4 UPZCP-1 multiple zones...

  • Page 7: Starting Up The Product

    4. Starting up the product 4.1 LED diagnostics Red LED is lit when there is a The power indicator light call for heat. "Grundfos" is lit when you power on the unit. ZONE 1 UPZCP-1 1 Pump Zone Relay Listed...

  • Page 8: Servicing The Product

    Kit, UPZC transformer fuse, pump board 250 mA, 5-pack 98996472 500 mA fuse Kit, UPZC transformer fuse, pump board 500 mA, 5-pack 98996473 7. Technical data UPZCP-1 single zone pump control relay Model UPZCP-1 Part number 98863527 Input power 60 Hz...
  • Page 9 Grundfos Kansas City Grundfos Canada Grundfos México 17100 West 118th Terrace 2941 Brighton Road Boulevard TLC No. 15 Olathe, Kansas 66061 Oakville, Ontario L6H 6C9 Canada Parque Industrial Stiva Aeropuerto Phone: +1-913-227-3400 Phone: +1-905 829 9533 C.P. 66600 Apodaca, N.L. Mexico...
  • Page 10 99027364 0216 ECM: 1173138 www.grundfos.com...
