3.3.41 Statistics – Data Switch
User Access Level: Level 1

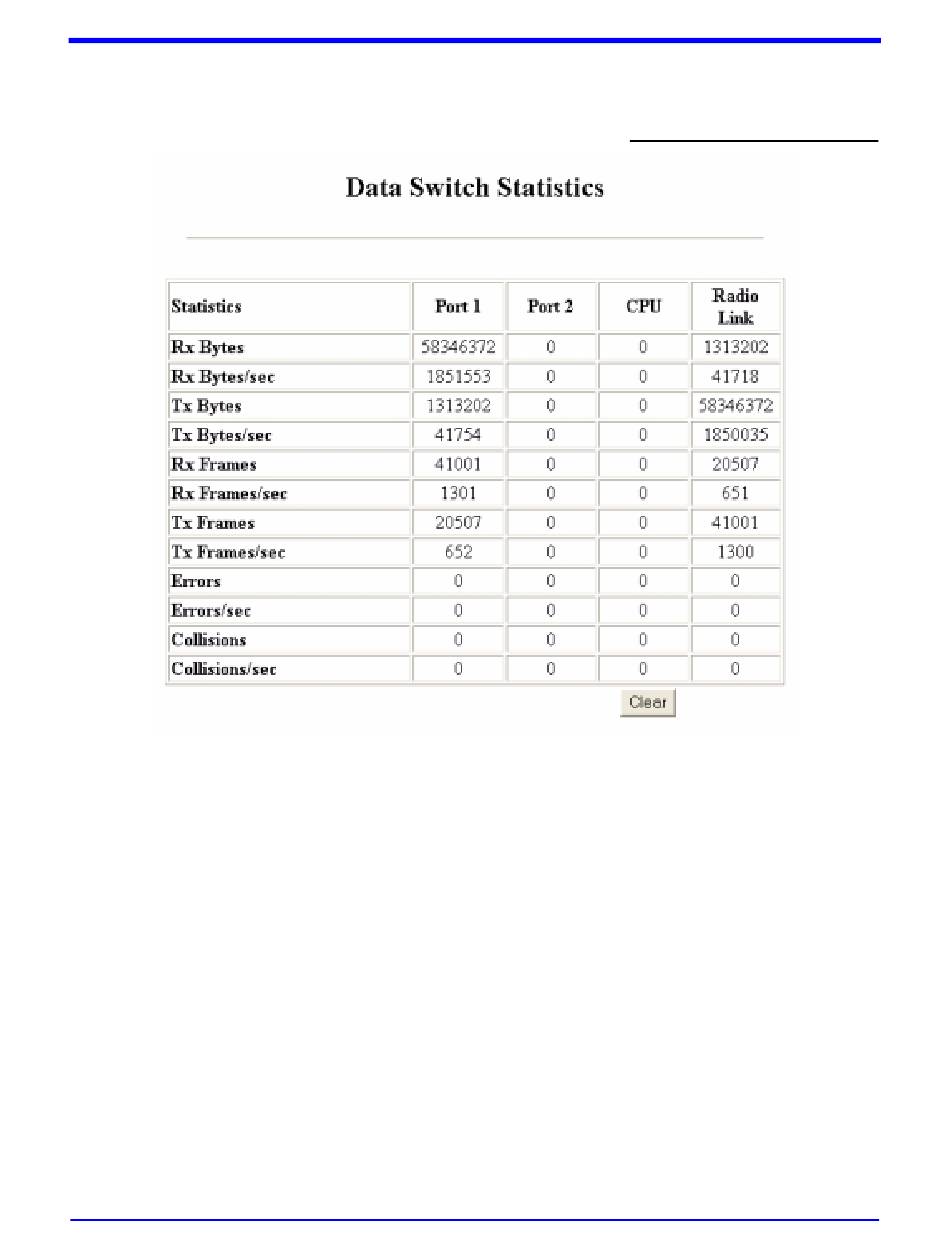

Figure 3-51. Data Switch Statistics
3.3.41.1 Description
This screen provides:
1. Rx Bytes
2. Rx Bytes/sec
3. TX Bytes
4. TX Bytes/sec
5. Rx Frames
6. Rx Frames/sec
7. TX Frames
8. TX Frames/sec
9. Errors
10. Errors/sec
