Installation instructions
Unpacking
To ensure the best performance from your new CleanSmart™ clothes washer please follow the instructions below.
Removing the packaging
1. Remove the outer packaging.
2. Tilt the machine backwards and walk it off the base
packer one foot at a time (ensure the lid is still taped
down).
3. Remove the base packer from under the machine by
pulling it out the front.
4. Remove the tape, lift the lid and remove the bowl
packer from the bowl.
5. Remove the hoses and accessories.
6. Keep the base packer and bowl packer in case they are
required for future transit.
Ensure that the bottom packer has been removed BEFORE OPERATING your machine.
Location
Your washer must be installed on a level surface, not on any textured floor coverings (eg carpet, rugs) to ensure the
opening at the bottom of the machine is not obstructed.
https://producthelp.fisherpaykel.com/nz/Wash/Top_Loaders/CleanSmart/WL1068P1/User_Guide_WL1068P1/02_Installation_...

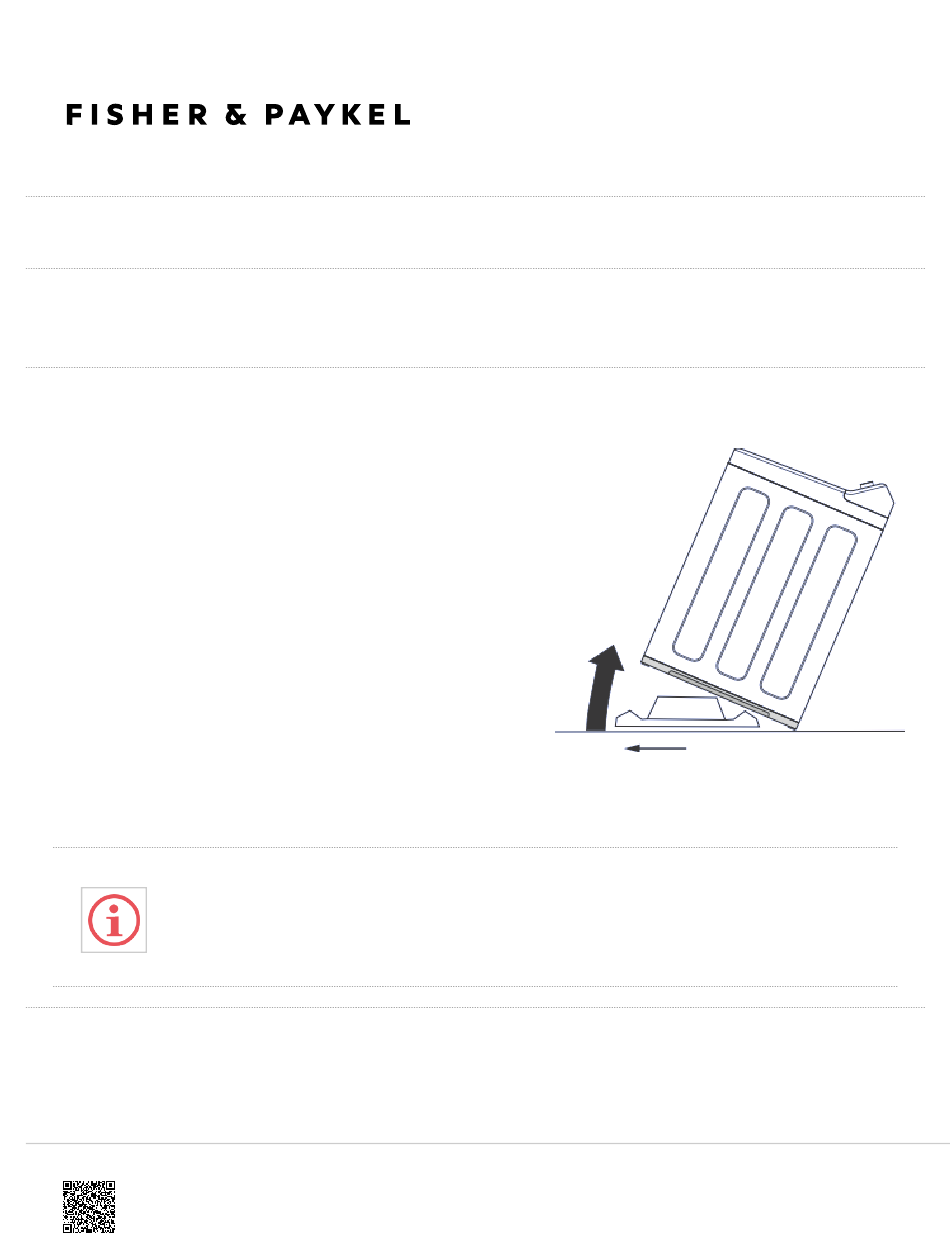

Fig. 1 Tilt washer backwards to remove
packer
Updated: Sat, 16 Nov 2019 03:22:08 GMT
Powered by
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fisher & Paykel CleanSmart Series
Summary of Contents for Fisher & Paykel CleanSmart Series
-
Page 1: Installation Instructions
Installation instructions Unpacking To ensure the best performance from your new CleanSmart™ clothes washer please follow the instructions below. Removing the packaging 1. Remove the outer packaging. 2. Tilt the machine backwards and walk it off the base packer one foot at a time (ensure the lid is still taped down). -
Page 2: Drain Hose
In your clothes washer you will find: • hose guide. • inlet hoses. • rubber foot inserts (if not already inserted into the feet). Drain hose 1. Carefully pull the drain hose out from the back of the machine by pulling the exposed part of the hose downwards and outwards. -
Page 3: Water Supply
Water supply • This clothes washer should be plumbed into both a hot and cold water supply otherwise some cycles may not function correctly. Your washer does not have an internal heater to heat water. • Your hot water should not exceed 65 ̊ C and your cold water should not exceed 35 ̊ C . Temperatures above these may cause a fault or cause damage to the machine. - Page 4 1. Connect the straight ends of the inlet hoses to the taps (there are washers fitted in both ends). Connect the red connector hose to hot, and white connector hose to cold (if your hoses are colour-coded). 2. Connect the elbow ends of the inlet hoses to the machine inlet valves.
- Page 5 After levelling, the corners of the washer should be clear of the floor and the machine must not rock in any direction. 1. If not already installed, fit the rubber inserts into all 4 feet on the base of the machine. Fig.
- Page 6 4. Open the lid. Place spirit level on the flat surface on the left side, inline with the centre of the bowl. Adjust the front left foot (wind down) until the machine is level. Fig. 6 Levelling - Step 4 5.
- Page 7 • Uncoil the power cord, remove and discard the plastic pin cover, and plug into wall socket and turn the power Installation test cycle Your washer must be correctly installed before use. Check the machine’s installation and operation using the following procedure: 1.
- Page 8 Accessories and spare parts Available from your Fisher & Paykel Dealer or a Fisher & Paykel Authorised Repairer. Hose Inlet Part No. 422680P Long (2 m) Hose Inlet Part No. 426123P Large Bore Drain Hose Part No. 425627P Extension Power If the power cord of your clothes washer is damaged it must be replaced by a Fisher &...
