Summary of Contents for Fisher & Paykel customcare FabricSmart

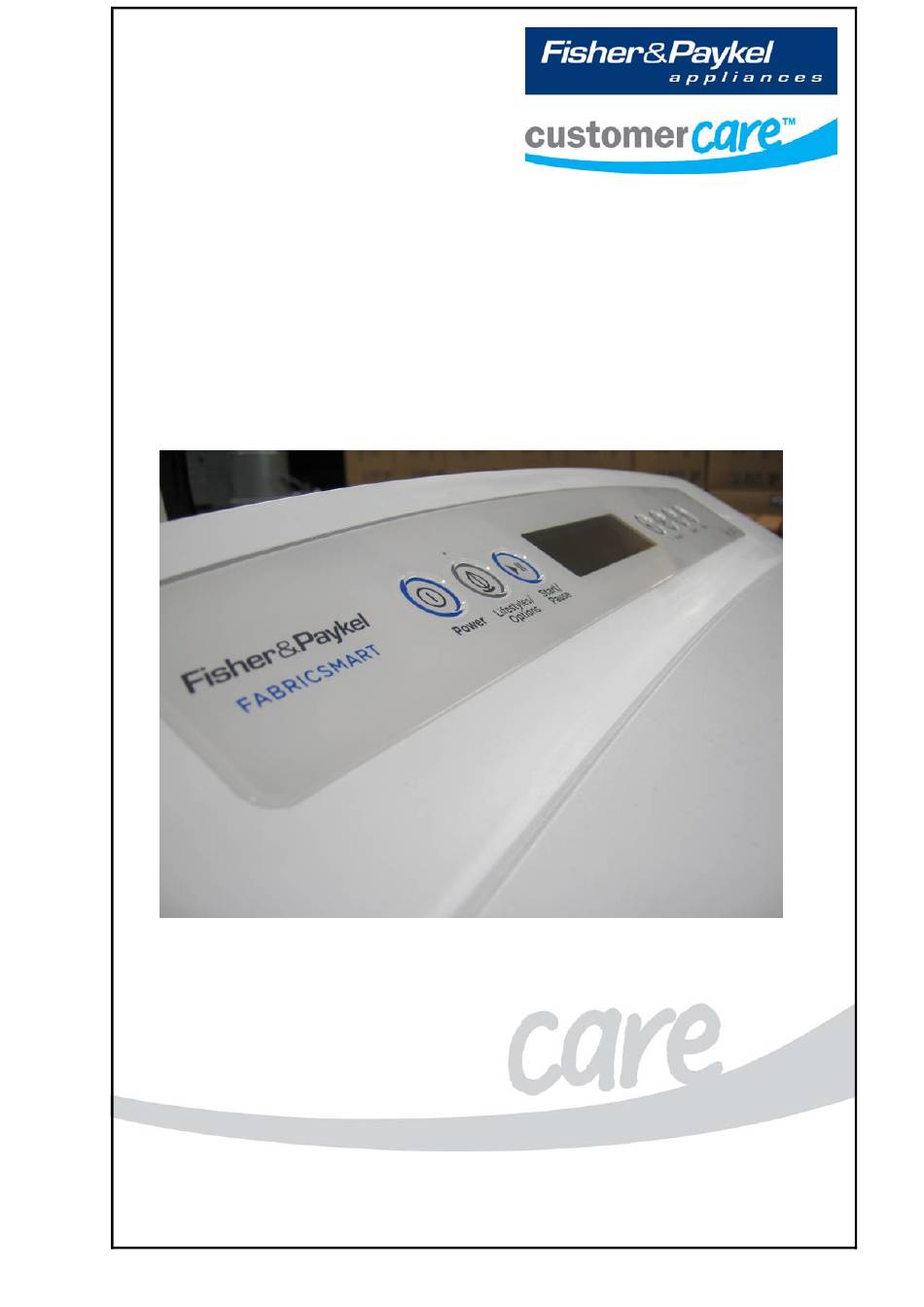

- Page 1 Service Diagnostics FabricSmart Washing Machine 479616 Fisher & Paykel Appliances © 2011 Printed June. 2011...
-
Page 2: Table Of Contents
CONTENTS SPECIFICATIONS ..................3 Electric Supply......................3 Wash Motor ........................3 Pump Motor 230V AC 50Hz ..................3 Water Valves ........................ 3 Thermistor ........................4 Diverter Valve.......................4 Lid Lock ........................4 Inner Bowl Weight ......................4 FabricSmart (IW MODEL) phase 9..............5 Size setting........................5 Diagnostic Mode......................5 Service Screen ......................5 Warning Status / Fault Status Screen ................ -
Page 3: Specifications
SPECIFICATIONS Electric Supply Operating Voltage 220/240V AC 50Hz Maximum Current 2.8 amps Wash Motor Electronically commutated direct drive 3 Phase brushless DC Motor. Motor Resistance: Aluminium Stators Per Winding Phase to Phase 19.5 ohms 10% 39 ohms 10% Phase 9 Pump Motor 230V AC 50Hz Pump motor resistance:... -
Page 4: Thermistor
Minimum height of taps to clear the top of the machine is 1150 mm. Thermistor Resistance 10,000 ohms @ 25 ° C NTC-type temperature sensor Resistance 12,500 ohms @ 20 ° C Diverter Valve Operating Voltage 160V DC Resistance Range between 0.7k... -
Page 5: Fabricsmart (Iw Model) Phase 9
FABRICSMART (IW MODEL) PHASE 9 Size setting To set the size, turn the mains on at the supply point and off at the display. Press and hold the Lifestyles/Options and the Left Arrow buttons until the size setting screen is displayed. This will present the options of Medium or Large in the LCD screen. -
Page 6: Warning Status / Fault Status Screen
Warning Status / Fault Status Machine Status To scroll between these use either scroll arrow or . Warning Status / Fault Status Screen Warning Status Fault Status This screen displays the last USER This screen displays a fault code for WARNING FAULT that occurred, the last fault that has occurred, how cycles ago and in what part of the... -
Page 7: Component Testing
Temp is the actual temp of the water entering the bowl. The lower half of the screen displays the status of the following components. Hot Valve Cold Valve Pump Diverter Valve Component Testing This screen enables the components that are displayed to be tested. ... -
Page 8: Restart Feature
this flag can also be removed by putting the machine through a complete final rinse. Restart Feature The FabricSmart™ IW leaves the factory with the RESTART set to ON, this is indicated in the screen by the word RESTART highlighted. To turn the RESTART feature OFF, touch the Left scroll arrow . -
Page 9: Restart / Recycle Table
NOTE - This feature is designed as a service aid only and should be OFF in the customer’s home. To return to normal operation, and to return the recycle feature to the factory setting, switch the machine off at the wall or disconnect from the mains supply. -
Page 10: Data Download
If a machine is encountered with the Restart/Recycle features not set to the factory defaults, the machine must be re-programmed using following steps; 1. Enter diagnostic mode by pressing and holding the Lifestyles/Options and Select buttons. Keep the buttons pressed for at least 2 seconds, after which time two beeps will be heard and a screen showing 'Service' &... -
Page 11: Wiring Diagram
Wiring Diagram Resistance Table Water Valve 64Ω @ 20 Recirculating Valve Between 700Ω and 2.5KΩ Pump Selni 33Ω Hanning 93 Ω Lid Lock 63Ω +/- 10% @ 20 Thermistor 10KΩ @ 25 Stator 39Ω +/- 10%...
