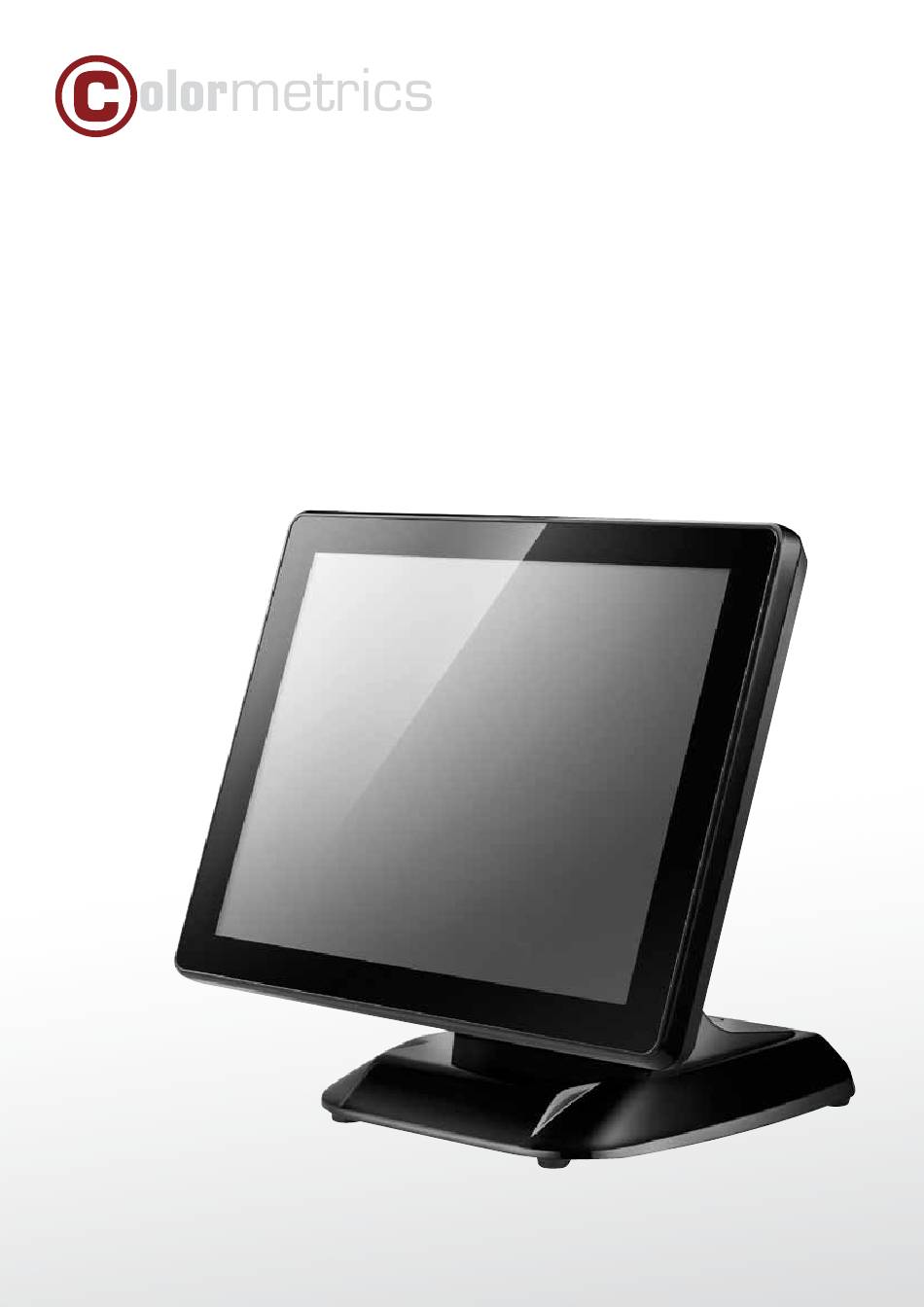

- Page 1 P2000 User Manual Version 1.0 Errors excepted; subject to change www.colormetric.net...
-
Page 2: Table Of Contents
4-4. Fingerprint Reader 4-5. RFID inTernal VfD (opTional) 5-1. VFD Specification seTup sofTware guiDe bios/uTiliTy seTup Advanced BIOS Features Advanced Chipset Features Integrated Peripherals SuperIO Device (Press Enter) Power Management Setup LCD Surface Cleaning Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... -
Page 3: Copyright
Dispose used batteries according to the manufacture’s instructions. Do not remove the cover, and ensure no user serviceable components are inside. Take the unit to the service center for service and repair. Colormetrics P2000 www.colormetric.net www.colormetric.net... -
Page 4: Packing List
11. Line-Out 12. Mic 13. COM1 14. Parallel port(Option) *Please make sure 19V DC plug in the right 15. Power Button direction before plugging in DC jack. 16. HDD/CF CARD Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000 17. MSR/smart card/IBUTTON/Fingerprint/RFID(Option) 18. VFD(Option) -
Page 5: Specification
-20°C ~ 60°C Storage Humidity 20% ~ 80%, non-condensing Display LCD Panel Size 15-inch TFT Active Matrix Display Resolution 1024*768 Pixels Brightness 250 cd/m2 Touch Panel 5-wire Resistive Type / Projected Capacitive Type Tilt Angle 30°~90° Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... -
Page 6: Pin Definition
Pin Name Description DATA 1+ LVDS Output DATA1+ Ground CF POWER CF POWER DATA 2- LVDS Output DATA2- 3.3V +3.3V DATA 2+ LVDS Output DATA2+ Ground CLK- LVDS CLK- CLK+ LVDS CLK+ Ground Ground Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... -
Page 7: Rear I/O Interface
3. USB port Red Analogue Ground Green Analogue Ground Blue Analogue Ground Key (Plugged Hole) Sync Ground Monitor ID 0 Monitor ID 1 4. PS/2 K/B port Horizonal Sync Vertical Sync Monitor ID 3 Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... -
Page 8: System Assembly & Disassembly
4. Fasten the screw Then fasten 2 screws (M3*5L). 5-5. 15” 2 Display 5-5. 15” 2 Display Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000 5-3. UPS Battery 5-3. UPS Battery Assemble the cable cover from bottom and make sure the two latches are on the... -
Page 9: 8"/15" 2Nd Display
VGA cable as shown in figure . (11) Connect the DC power cable as shown in figure . (12) Connect the VGA cable as shown in figure Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000 . (13) Connect the Audio cable as shown in figure... -
Page 10: 2D / Ibutton With Rfid Module
Connect the cable as shown. * Before COM port cable connection, please setup COM port PIN9 with 5V DC output from BIOS setup. Please refer to page 61, advanced Chipset features / COM port PIN9 setting. Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... -
Page 11: Device Driver Installation
DeViCe DriVer insTallaTion 4-1. resistive Type Touch panel 1. Install (Operating System: Microsoft Windows POSReady2009) 1.1 Run Setup529USasXP2K.exe 1.3 Click No 1.3 Click Yes 1.2 Click Next 1.3 Click Yes 1.4 Click No Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... - Page 12 1.6 Click Finish to reboot your system to complete the installation of POS 2.5 Calibration done. touch driver. 1.6 Click Finish to reboot your system to complete the installation of POS touch driver. 2.4 Follow the instruction to touch four cross points. Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
-
Page 13: P-Cap
4-2. p-Cap 3 Click “Next” 1 Click “Next” 4 Select “None”, Click “Next” 2 Click “Next” 5 Click “OK” Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... - Page 14 6 Select “Support muti-Monitor System”, Click “Next” 8 Click “Next” 7 Click “Next” 9 Click “Next” Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
- Page 15 10 Select “Create a eGalaxTouch Utility shortcut on desktop”, Click “Next” 11 Would you do 4 point calibration now? Click “Yes” 12 Do 4 points aligrment to matvch display. 13 Calibration utility Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
-
Page 16: Magstripe Card Reader Configuration Utility
6 Decode Mode: Determines the way of outputting the three tracks data. Shown below is the data structure of the output string for MSR. PP PR1 SS1 TK1 ES1 SU1 PR2 SS2 TK2 ES2 SU2 PR3 SS3 TK3 ES3 SU3 SU DM Colormetrics P2000 www.colormetric.net www.colormetric.net... - Page 17 Restore ES2: End sentinel for trac 1 Track Data Filtering: Determine which track to be, not to be output or needed to be output. 2 Switch Output Order: Change the output order of track 1 ~ 3. Colormetrics P2000 www.colormetric.net www.colormetric.net...
-
Page 18: Fingerprint Reader
4-4. fingerprint reader Step 1 Check Fingerprint reader be detected by “Device manager” Step 2 Unzip and run setup.exe from the following folder. Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... - Page 19 Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
- Page 20 Step 3 Restart system Step 4 Check Fingerprint reader in device without any extraordinary. Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
- Page 21 Step 5 Launch Fingerprint reader from start menu Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
- Page 22 Step 7 Select “Fingerprint Enrollment” Step 6 Enroll the fingerprint by the “enrollment” Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
-
Page 23: Rfid
(The device will show a question mark if the installation is not done properly.) Step 9 after enroller finish it will popup a dialog box 1.2 Install RFID driver file name: XP2KxVista.exe 2-1 Path:\USB Driver\ XP2KxVista.exe Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... - Page 24 1.2.1 After clicking Next, A pop up console window appears as below. 1.3 install RFID utility MifareDemoSetup_PSW00020.exe 3-1 Path:\MF320\MifareDemoSetup_PSW00020.exe 1.2.2 Check the Device Manager to verify the status of RFID reader. Computer Management -> Device Manager -> Ports (COM & LPT) Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
- Page 25 1.3.1 InstallaShield Wizard will be activated. 1.3.3 Click “Next” 1.3.2 Click “Next” 1.3.4 Click “Giga-TMS” & “Next” Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
- Page 26 2 Run RFID demo program. Start -> All Programs -> GIGA-TMS -> Mifare Demo 2-1 Run “Auto Scan” Demo AP will detect the RFID reader automatically. Or select the RFID COM port 1.3.6 Click “Next” Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
- Page 27 (Your Mifare card should be placed on the RFID reader area.) reader area. Event Dialog window gets the data from the Mifare Card 2-4 Card ID will be recognized when you click “Card ID”. Close the RFID card to RFID reader Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000...
-
Page 28: Internal Vfd (Optional)
Norwegian, Polish, Portuguese, Romanian, Russian, Slo- vene, Slovak, Spanish, Swedish interface RS-232 (serial) / USB reliability baud rate Direct connection 9600 or 19,200 bps Connection mTbf 30,000 hours power Consumption 5~12 VDC emC standards safety FCC, CE safety standards Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... -
Page 29: Setup Software Guide
You can type the character by keyboard (0x20h˜0x7Fh), if you press clear icon, it will clear the all Msg charaters on AP. b. Hex mode Hex mode can define the character from 0x20h to 0xFFh, the range 0x80˜0xFF Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... -
Page 30: Bios/Utility Setup
Landing Zone Sector iDe hDD auto-Detection Press <Enter> while this item is highlighted to prompt the Setup Utility to automatically detect and configure an IDE device on the IDE channel. Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... -
Page 31: Advanced Bios Features
PU/PD/+/-/: Change Priority F10: Save ESC:Exit first/second boot Device (floppy/hard Disk/CDrom) Use these three items to select the priority and order of the devices that your system searches for an operating system at start-up time. Colormetrics P2000 www.colormetric.net www.colormetric.net Colormetrics P2000... -
Page 32: Integrated Peripherals
When set to Enabled, additional fields become available and you can set the date (day of the month), hour, minute and second to turn on your system. When set to 0 (zero) for the day of the month, the alarm will power on your system every day at the specified time. Colormetrics P2000 www.colormetric.net www.colormetric.net... -
Page 33: Lcd Surface Cleaning
Highlight this item and press <Enter> to discard any changes that you have made in the Setup Utility and exit the Setup Utility. When the Exit Without Saving dialog box appears, press <Y> to discard changes and exit, or press <N> to return to the main menu. Colormetrics P2000 www.colormetric.net www.colormetric.net... - Page 34 European Union. This label is applied to various products to indicate that the product is not to be thrown away, but rather reclaimed upon end of life per this Directive. Colormetrics P2000 www.colormetric.net www.colormetric.net...
- Page 35 www.colormetric.net...
