Colormetrics P5100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

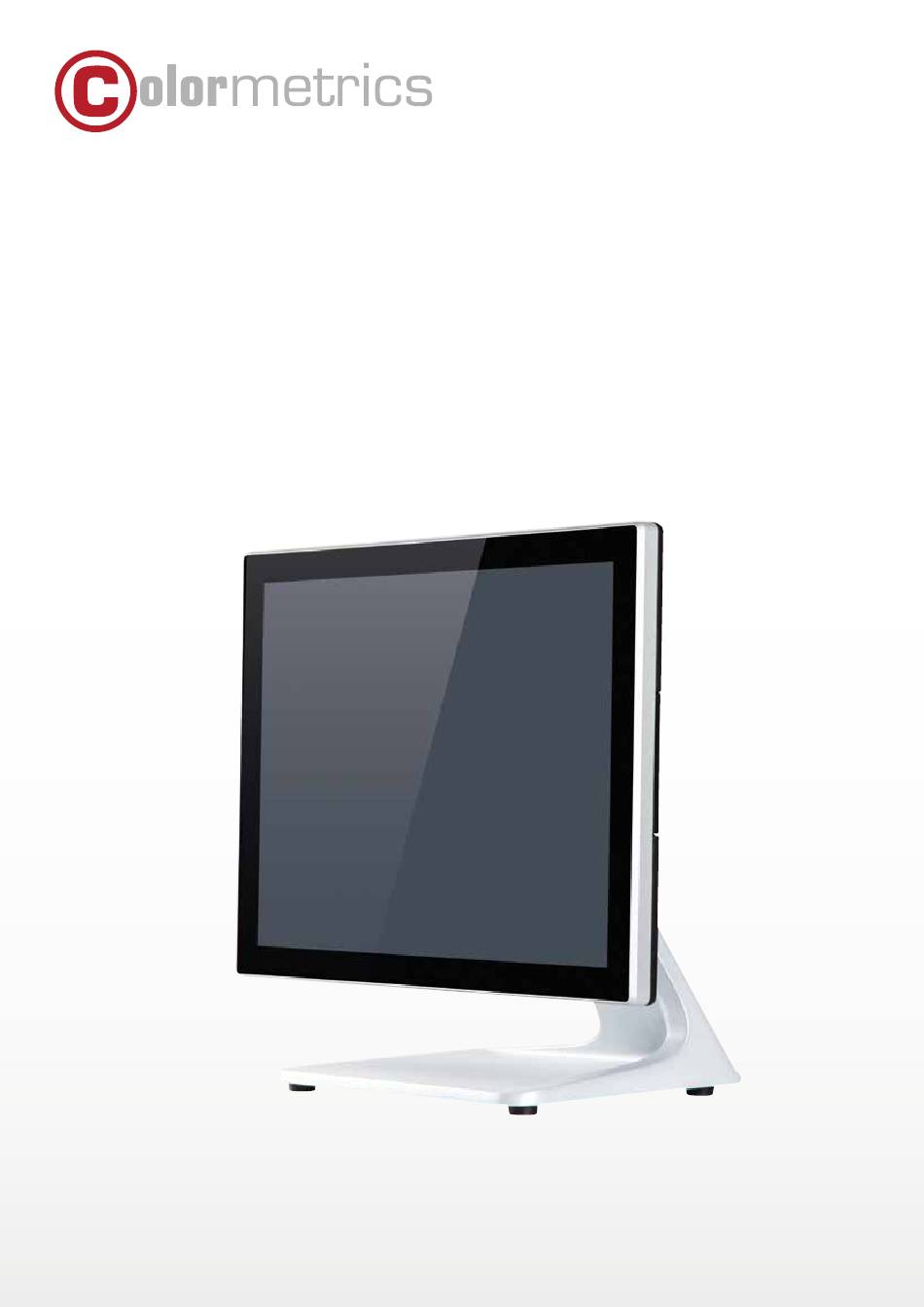

P5100
User Manual
Version 1.0
Errors excepted; subject to change
www.colormetrics.info

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P5100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Colormetrics P5100

Summary of Contents for Colormetrics P5100

  • Page 1 P5100 User Manual Version 1.0 Errors excepted; subject to change www.colormetrics.info...
  • Page 2 Copyright COPYRIGHT Copyright 2023 Colormetrics. All Rights Reserved. This manual, software and firmware described in it are copyrighted by their respective owners and protected under the laws of the Universal Copyright Convention. You may not reproduce, transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, biological, molecular, manual, or otherwise, any part of this publication without the express written permission of the publisher.
  • Page 3 Dispose used batteries according to the manufacturer’s instructions. 2. Do not remove the cover, and ensure no user serviceable components are inside. Take the unit to the service center for service and repair. www.colormetrics.info www.colormetrics.info Colormetrics P5100 Colormetrics P5100...
  • Page 4 European Union. This label is applied to various products to indicate that the product is not to be thrown away, but rather reclaimed upon end of life per this Directive. Colormetrics P5100 www.colormetrics.info...

  • Page 5: Table Of Contents

    ....................14 5. System Assembly & Disassembly ............17 5-1. M.2 SSD / Memory ....................178 5-2. Memory ........................19 5-3. MSR ........................19 5-4. i-Button / Scanner ..................... 19 5-5. VFD/2 monitor module replacement ..............20 www.colormetrics.info Colormetrics P5100...
  • Page 6 ......................... 38 BIOS/Utility setup ....................49 7-1. Advanced ........................ 52 7-1-2. Audio Configuration ................... 54 7-2. Security ........................57 7-3. Power ........................58 7-4. Boot ......................... 59 7-5. Exit ........................... 60 8. LCD surface cleaning ..................61 Colormetrics P5100 www.colormetrics.info...

  • Page 7: Packing List

    System x1 60W / 90W /150W Power Adaptor X1 Power Cord x1 Cable D-SUB to RJ45 X3 1-2 Optional Accessories a. MSR b. 2D barcode scanner c. VFD / 2 Display 9.7”，15” d. RFID / I-BUTTON / Fingerprint www.colormetrics.info Colormetrics P5100...

  • Page 8: System View

    LA N port USB3.0 Type-C USB USB3.0 2-2 Back View Item 14. VFD / 2 Display 9.7”, 15” (Option) 17. Cable Cover 15. MSR/ i-Button/ RFID/ Barcode scanner (Option) 18. Power Button 16. Speaker 19. M.2 Storage X2 Colormetrics P5100 www.colormetrics.info...

  • Page 9: Specification

    Dimension (W x H x D) mm 333 x 220 x 346 mm Certifications CE/ FCC/ LVD Protection IP64 on front bezel ☆ ☆ Please make sure 19V DC plug in the right direction before plugging in DC jack. www.colormetrics.info Colormetrics P5100...

  • Page 10: Internal Layout

    SYSTEM VIEW 2-5 Internal Layout 2-4 Mainboard Layout Power switch board Speaker RTC Battery DDR4 Socket Touch & Power LED M.2 E Key WIFI e-DP Panel M.2 SATA USB2.0 M.2 NVMe /SATA USB2.0 VFD /2 Monitor Colormetrics P5100 www.colormetrics.info...

  • Page 11: Pin Definition

    Not connected PCIE2_TX- M_Key_PETN2 Not connected Not connected Not connected PCIE2_TX+ M_Key_PETP2 Not connected Not connected Not connected Ground Not connected Not connected Not connected PCIE1_RX- M_Key_PERN1 Not connected Not connected Not connected PCIE1_RX+ M_Key_PERP1 M_2_PEDET_OC UP +VCC3 www.colormetrics.info Colormetrics P5100...
  • Page 12 Ground Ground +VCC3 +VCC3 Not connected Ground M.2_SATA-RX+ SATA RX+ +VCC3 +VCC3 Not connected Ground M.2_SATA-RX- SATA RX- Ground Not connected Not connected Ground M_2_W_D +VCC3 Not connected M.2_SATA-TX- SATA TX- Not connected M_2_W_LED UP_+VCC3 Not connected Colormetrics P5100 www.colormetrics.info...
  • Page 13 Description Ground Not connected +VCC3 +3.3V Ground NGFF1_D+ USB Data+ Not connected +VCC3 +3.3V PE_RXP3 PCIE RX+ NGFF1_D- USB Data- Not connected Not connected PE_RXN3 PCIE RX- Ground Not connected Not connected Ground Not connected Not connected www.colormetrics.info Colormetrics P5100...
  • Page 14 PCIE Wake Event Ground 3.3V +3.3V SMB_PCIE_DBG_CLK SMBus Clock PCIE_TX3_MINI_DN PCIE Transmit- Not connected SMB_PCIE_DBG_DATA SMBus Data Ground PCIE_TX3_MINI_DP PCIE Transmit+ Not connected 1.5V +1.5V Ground CLKREQ# +3.3V Ground Not connected USB Data- USB D- Ground Not connected Colormetrics P5100 www.colormetrics.info...
  • Page 15 Not connected 3.3V +3.3V 3.3V +3.3V PCIE_RX3_MINI_DP PCIE Receive+ Ground Ground 1.5V +1.5V 6. J3: eDP pin Definition Definition Definition EDP_HPD EDP_TX1_DN EDP_TX1_DP EDP_TX0_DN EDP_TX0_DP BL_Enable BL PWM DIM EDP1_AUX_P EDP1_AUX_N +12V +V3.3V +12V +V3.3V +12V +12V www.colormetrics.info Colormetrics P5100...
  • Page 16 8. SPK1: nt. Speaker Pin Definition Definition Right Out+ Right Out- 9. CN4: Touch +LED Pin Definition Definition +VCC5 USB_D- USB_D+ LED- LED+ 10. SW2: Power Button Pin Definition Definition Power-ON# 11. JBAT1: Power Button Pin Definition Definition Recovery RTCRST# SRTCRST# Colormetrics P5100 www.colormetrics.info...
  • Page 17 PIN DEFINITION 12. J6: LPC TPM Pin Definition Definition Definition LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_FRAME# PLTRST_N SERIRQ +VCC3 +VCC3 +VCC3 +VCC3 13. BAT1: RTC Battery Pin Definition Definition BAT1 www.colormetrics.info Colormetrics P5100...

  • Page 18: Rear I/O Interface

    REAR I/O INTERFACE Rear I/O Interface System 1. JS1: DC Jack Pin Definition Definition +19V Ground +19V 2. 2-Layer USB3.0 connector Definition Definition 3. LAN: RJ45 Definition MDI0A+ MDI0A- MDI1A+ MDI1A- MDI2A+ MDI2A- MDI0A+ MDI0A- MDI3A+ MDI3A- Colormetrics P5100 www.colormetrics.info...
  • Page 19 Definition Definition USB_D- USB_D- USB_D+ USB_D+ 7. USB1, USB2: USB 2.0 pin definition (Internal USB 2.0 type A) Definition USB_D- USB_D+ 8. 24V USB1: USB 2.0 and 24V pin definition Definition Definition Dect# USB_D- +24V USB_D+ +24V www.colormetrics.info Colormetrics P5100...
  • Page 20 10. LAN1: RJ45 Pin Definition Definition MDI0A+ MDI0A- MDI1A+ MDI1A- MDI2A+ MDI2A- MDI3A+ MDI3A- 11. COM1, COM2,COM3 RJ45 TYPE : Pin Definition Definition 5V/12V/Ring# DSR# DTR# RTS# CTS# 12. CN6: RJ11 (Cash Drawer) connector Pin Definition Definition C/D_OPEN# C/D_ Status +24V Colormetrics P5100 www.colormetrics.info...

  • Page 21: System Assembly & Disassembly

    3. Pull out the tray. 4. Caution: Please check the position of the gap between the tray and the M.2 storage. The wrong installation position will damage the M/B and cancel the warranty. 5. Install the M.2 SSD with 1 screw. www.colormetrics.info Colormetrics P5100...
  • Page 22 SYSTEM ASSEMBLY & DISASSEMBLY 5-2 Install the memory 1. Remove the cable cover. 2. Loosen 1 screw. 3. Slide up to separate the panel. 4. Install the memory. Colormetrics P5100 www.colormetrics.info...

  • Page 23: Msr

    SYSTEM ASSEMBLY & DISASSEMBLY 5-3 MSR 1. Remove the MSR cover. 2. Install and fasten the module with two screws. 5-4 i-Button / Scanner 1. Remove the MSR cover. 2. Install and fasten the module with two screws. www.colormetrics.info Colormetrics P5100...

  • Page 24: Vfd/2 Nd Monitor Module Replacement

    SYSTEM ASSEMBLY & DISASSEMBLY 5-5. VFD / 15” 9.7” 2 display 1. Remove the VFD cover. 2. Connect cable into M/B. 3. Fasten with 2 screws. Colormetrics P5100 www.colormetrics.info...

  • Page 25: Device Driver Installation

    Run the 80066804-009_MagSwipe_Cfg_v2.3.5_A setup file that is located in the Software folder of CD. Follow the wizard to complete the installation. Launching Program The steps below guide you how to load the Utility program. From Start/Programs, click MagSwipe folder Click MagSwipe Configuration Utility to launch the program. www.colormetrics.info Colormetrics P5100...
  • Page 26 DEVICE DRIVER INSTALLATION Configuration Select Reader Interface The reader to be configured should be connected. Select the corresponding connected reader interface and click the Continue button. Colormetrics P5100 www.colormetrics.info...
  • Page 27 After selecting the appropriate interface for the reader, select one of the Home Menu Page buttons to proceed with the Magnetic Stripe Reader (MSR) configuration process. The "Basic Reader Settings" group defines the basic operating parameters and data output format of the reader. www.colormetrics.info Colormetrics P5100...
  • Page 28 When the reader has received the data correctly, the settings take effect immediately. Load From File The configuration data can be loaded into the configuration utility from a file that has been previously saved. Select this command, start a "File Open" dialog, which allows selection of the file. Colormetrics P5100 www.colormetrics.info...
  • Page 29 The settings take effect immediately. The default parameters affect all reader configurations settings. Close Close this dialog and return to the Home Menu Page. General Settings This group of configuration settings defines the basic operating parameters of the reader. www.colormetrics.info Colormetrics P5100...
  • Page 30 ASCII characters: the first ASCII character is for high bits of the raw data byte and the second is for the low bits. For example, the two ASCII characters "4"and "1"represent raw data byte 41h (01000001). Colormetrics P5100 www.colormetrics.info...
  • Page 31 After you click the Default Button, the general settings page will change back to the default value. Settings are not sent to MSR until the "Send to MSR" button is clicked. Help Button Click the help button to open the help index for this section. www.colormetrics.info Colormetrics P5100...
  • Page 32 End Sentinel The magnetic stripe End Sentinel character can be added to the end of a magnetic stripe data string. This character simulates the end of character for track1, track2 or track3. This default is '?' Colormetrics P5100 www.colormetrics.info...
  • Page 33 The reader can send the track LRC for a properly decoded track. For Track 2 only Send Account Number The reader can only send account Number if it is true. And if it is false, the reader sends all Track 2 data. www.colormetrics.info Colormetrics P5100...
  • Page 34 German, French, Japanese, UK and Universal. Universal language sends out all the data as a series of ALT keypad sequence. Function Key Output The function key output be used to support the special key to delay card data output. Colormetrics P5100 www.colormetrics.info...
  • Page 35 The user can input the number between 1 to 255 for the delay of output. Check Current Reader Setting After you connect the device, the current reader configuration can be displayed by selecting this button. The configuration data of the connected reader will be displayed like in the example: www.colormetrics.info Colormetrics P5100...

  • Page 36: I-Button Reader Configuration Utility

    For second level device the Indirect command signal should be selected (see block3 & 4). Press the button “Configure Word” to enter the parameter setting function (see Block 5). The two response windows show up the data from the device connected. Colormetrics P5100 www.colormetrics.info...
  • Page 37 “Save To File”: Save the current screen setting to file in storage. “Get Configuration Word”: Get current setting in the device connected. • • “Set Configuration Word”: Set current setting on the screen to the device connected. www.colormetrics.info Colormetrics P5100...
  • Page 38 16 parameter areas (see below) are used for four functions, each function related area should be setup correctly and press Set Configure Word button before operation. MSR function areas: 1,2,5,6,9,11,12,13 i-Button function areas: 2,3,5,7,10,11,14 RFID function areas: 2,4,5,8,11,15 Chip card function areas: 16 Colormetrics P5100 www.colormetrics.info...
  • Page 39 Track 2 Request: If selected, the reader will response track data only if track2 read correctly. Track 3 Request: If selected, the reader will response track data only if track3 read correctly. www.colormetrics.info Colormetrics P5100...
  • Page 40 Define the appending byte after the last track data returned. Area 13 MSR Response Port: Select MSR data response port right after swiped. Head/Tail Message: Message prefix and suffix to each track data returned. Each Head/Tail accepts10 bytes Enter keyboard control code. max. long. Invisible code: Colormetrics P5100 www.colormetrics.info...
  • Page 41 Select RFID ID response port right after tag attached or removed. Head/Tail Message: Message prefix and suffix to tag data returned. Each Head/Tail accepts10 bytes max. long. Invisible code: Enter keyboard control code. Area 16 ICC Response Port: Select chip card auto. ATR response port www.colormetrics.info Colormetrics P5100...

  • Page 42: Vfd

    DEVICE DRIVER INSTALLATION 6-3. VFD 1. Power on VFD and waiting test page of EEPROM test, Baud rate and Command page. Set up the customer display by " VFDset.exe” 2. Setup VFDset.exe software. Colormetrics P5100 www.colormetrics.info...
  • Page 43 (Note: You may check it when power on VFD module), then click “Open COM” button. 4. “Get Setting from VFD” button to get all the settings from VFD and it’ll refresh the “VFDset.exe” software. 5. Select “Character Type” / “Command Mode” / “Baud Rate Select” / “Passthru Mode”. www.colormetrics.info Colormetrics P5100...
  • Page 44 AP. b. Hex mode Hex mode can define the character from 0x20h to0xFFh，the range 0x80~0XFF which depends on the code page table. Like the first character (0x80)，in default code page will show on VFD module. Colormetrics P5100 www.colormetrics.info...
  • Page 45 This button is to download the setting from VFDset.exe to VFD module. After success dialog “Download O.K! Please restart!” message popped up. Please restart display for enable new setting 9. Click “Save” button To save user’s setting in file; for example, below picture to save file name as “GOODLUCK” file set for Welcome Message. www.colormetrics.info Colormetrics P5100...
  • Page 46 DEVICE DRIVER INSTALLATION 10. Click “Load” button After saving, you must restart the utility here. Then load your setting rename-GOODLUCK.vfd. Colormetrics P5100 www.colormetrics.info...
  • Page 47 1. Check the Device Manager to verify the status of RFID reader. Computer Management -> Device Manager -> Other devices (The device will show a question mark if the installation is not done properly.) 2. Double-click to update driver. www.colormetrics.info Colormetrics P5100...
  • Page 48 DEVICE DRIVER INSTALLATION 3. Select “Browse my computer for driver software.” 4. Click Browse to select file called MP30U \Driver\FTDI\x64 And click Next. 5. Install the driver Colormetrics P5100 www.colormetrics.info...
  • Page 49 DEVICE DRIVER INSTALLATION 6. Install complete and then click “Close” 7. Restart the computer www.colormetrics.info Colormetrics P5100...
  • Page 50 DEVICE DRIVER INSTALLATION 6-3-2. Install framework 4.0 1. Double-click to install. 2. Select “I have read and accept the license terms. And click Install. Colormetrics P5100 www.colormetrics.info...
  • Page 51 1. The demonstration software is “MP Studio.exe” provided in the folder “Demo Software”. There is no software setup required; just double click the ”MP Studio.exe”. The demonstration software can run either from CD or a copy on hard drive. The GUI of software is shown in the picture below and ready to use. www.colormetrics.info Colormetrics P5100...
  • Page 52 DEVICE DRIVER INSTALLATION 3. Following steps, as shown in the picture below, demonstration a simple usage in reading UID of ISO14443A card for quick understanding. Colormetrics P5100 www.colormetrics.info...

  • Page 53: Bios/Utility Setup

    BIOS/UTILITY SETUP BIOS/Utility setup BIOS/Utility setup 1. Press <DEL > key to enter SETUP CMOS UTILITY when system is booting up. 2. Press <ENTER> over SCU button to enter the utility www.colormetrics.info Colormetrics P5100...
  • Page 54 BIOS/UTILITY SETUP Colormetrics P5100 www.colormetrics.info...
  • Page 55 Windows Date and Time Properties utility. WARNING! Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware. www.colormetrics.info Colormetrics P5100...

  • Page 56: Advanced

    BIOS/UTILITY SETUP 7-1. Advanced Use the Advanced menu to configure the system for basic operation through the following sub-menus: Colormetrics P5100 www.colormetrics.info...
  • Page 57 BIOS/UTILITY SETUP 7-1-1. Boot Configuration Use the Boot Configuration menu to select power-on state for Numlock. www.colormetrics.info Colormetrics P5100...

  • Page 58: Audio Configuration

    BIOS/UTILITY SETUP 7-1-2. Audio Configuration Use the Audio Configuration menu to read Audio configuration information and configure the Audio settings Colormetrics P5100 www.colormetrics.info...
  • Page 59 BIOS/UTILITY SETUP 7-1-3. Video Configuration Use the Video Configuration menu to read Video configuration information and configure the Video settings www.colormetrics.info Colormetrics P5100...
  • Page 60 BIOS/UTILITY SETUP 7-1-4. SATA Configuration Use the SATA Configuration menu to read SATA configuration information and configure the SATA settings Colormetrics P5100 www.colormetrics.info...

  • Page 61: Security

    BIOS/UTILITY SETUP 7-2. Security Use the Security menu. www.colormetrics.info Colormetrics P5100...

  • Page 62: Power

    Use the power menu to install or change the power settings. AC Loss Auto Restart Enable or disable system power on automatically after AC power restored Wake on LAN Enable or disable system wake by onboard LAN chip Colormetrics P5100 www.colormetrics.info...

  • Page 63: Boot

    BIOS/UTILITY SETUP 7-4. Boot Use the Boot menu. www.colormetrics.info Colormetrics P5100...

  • Page 64: Exit

    BIOS/UTILITY SETUP 7-5. Exit Use the Save & Exit menu to load default BIOS values, optimal failsafe values or to save configuration changes. Colormetrics P5100 www.colormetrics.info...

  • Page 65: Lcd Surface Cleaning

    3. What types of cleaners are acceptable? Water ☆ Vinegar (mixed with water) ☆ Isopropyl Alcohol ☆ NOTICE: The following cleaners are unacceptable: • Acetone Ethyl alcohol • • Ethyl acid • Ammonia • Methyl chloride www.colormetrics.info Colormetrics P5100...
  • Page 66 Colormetrics GmbH Braugasse 5 35390 Gießen Telefon: +49 641 97226711 E-Mail: info@colormetrics.info www. colormetrics.info...
