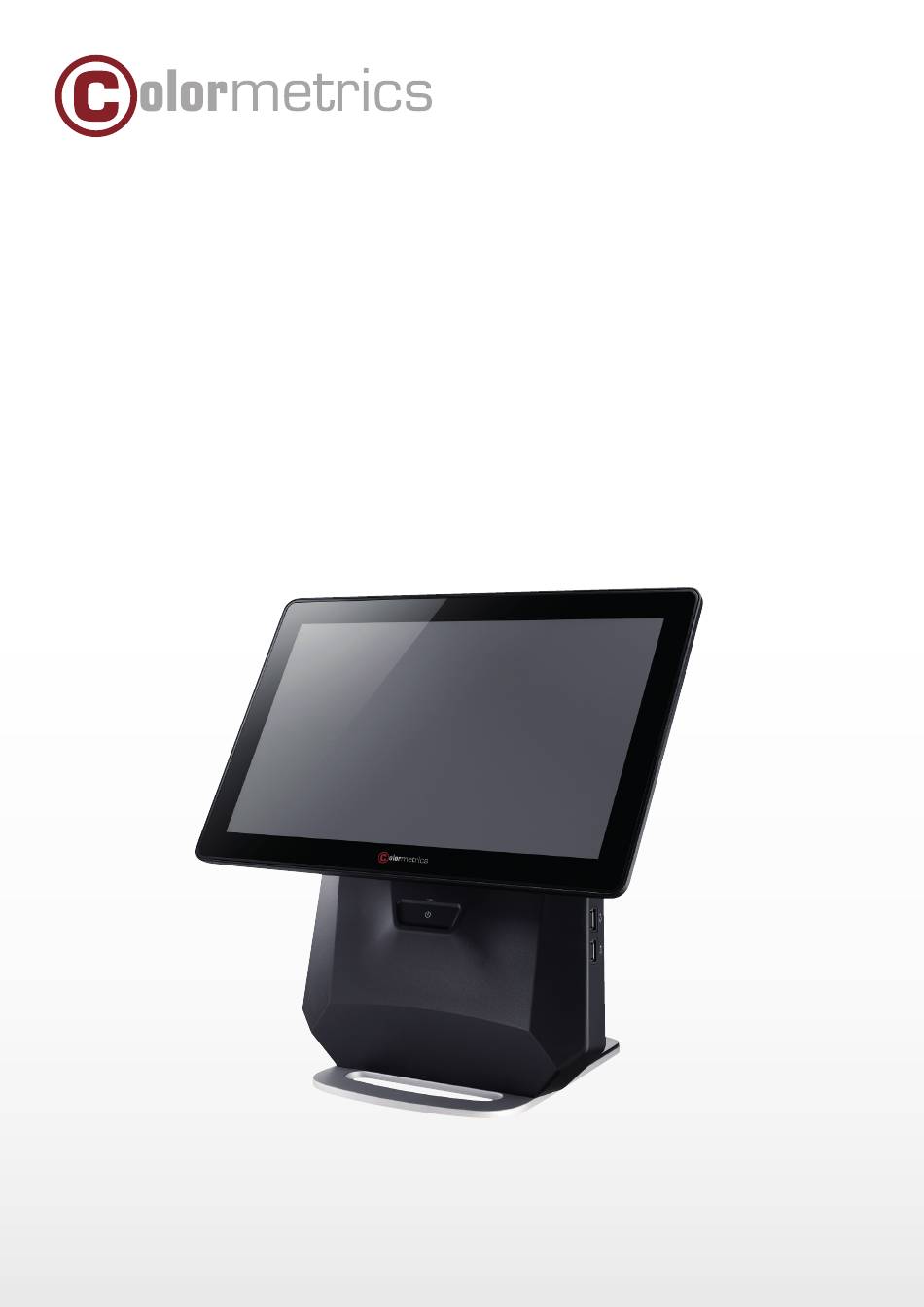

- Page 1 V1506 User Manual Version 1.0 Errors excepted; subject to change www.colormetrics.info www.colormetrics.info Colormetrics V1506...
- Page 2 COPYRIGHT Copyright 2018 Colormetrics All Rights Reserved. This manual, software and firmware described in it are copyrighted by their respective owners and protected under the laws of the Universal Copyright Convention. You may not reproduce, transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, biological, molecular,m manual, or otherwise, any part of this publication without the express written permission of the publisher.
- Page 3 Dispose used batteries according to the manufacture’s instructions. 2. Do not remove the cover, and ensure no user serviceable components are inside. Take the unit to the service center for service and repair. www.colormetrics.info Colormetrics V1506...
- Page 4 European Union. This label is applied to various products to indicate that the product is not to be thrown away, but rather reclaimed upon end of life per this Directive. Colormetrics V1506 www.colormetrics.info...
-
Page 5: Table Of Contents
5-2 MagStripe Card Reader Configuration Utility 5-3 RFID 5-4 Configuration Utility of i-Button Reader 5-5 VFD 5-6 USB 2nd Display 6. BIOS/Utility Setup 6-1 Advanced 6-2 Security 6-3 Power 6-4 Boot 6-5 Exit 7. LCD Surface Cleaning www.colormetrics.info Colormetrics V1506... -
Page 6: Packing List
Plate for stand extend Optional Accessories Optional Accessories a. Single MSR a. Single MSR 2nd Display (8,10,) b. VFD b. VFD c. The 2nd Display RF-ID Leser c. The 2nd Display MSR+RF-ID (8”/10”) i-button (8”/10”) MSR+iButton 1D Scanner 2D Scanner Colormetrics V1506 www.colormetrics.info... -
Page 7: System View
☆ Please make sure 19V DC plug in the left righdirection before plugging in DC jack. Please make sure the 19V DC is plugged in the right direction before plugging in DC jack. 2-2 Side View 2-3 Front View 1D / 2D Scanner (option) www.colormetrics.info Colormetrics V1506... -
Page 8: Back View
2-4 Back View VFD / 2 Display (optional) MSR / i-Button RFID (optional) HDD / RAM / WIFI module(optional) Colormetrics V1506 www.colormetrics.info... -
Page 9: Specification
5-wire Resistive Type / Projected Touch Panel Capacitive Type Touch Panel 5-wire Resistive Type / Projected Capacitive Type Note: Note: Intel® Celeron J1900 CPU does not support POSReady 2009 Intel® Celeron J1900 CPU does not support POSReady 2009 www.colormetrics.info Colormetrics V1506... -
Page 10: Internal Layout
Internal Layout Colormetrics V1506 www.colormetrics.info... -
Page 11: Pin Definition
1. 2-Layer USB2.0 connector Pin Definition Definition Definition 2. 2-Layer USB3.0+2.0 connector Pin Definition Definition Definition 3. LAN: RJ45 Pin Definition Definition MDI0A+ MDI0A- MDI1A+ MDI1A- MDI2A+ MDI2A- MDI3A+ MDI3A- 4. LINE-OUT JACK Pin Definition Definition GND_AUD GND_AUD LINE_OUTR2 LINE_OUTL2 LINE2-JD www.colormetrics.info Colormetrics V1506... - Page 12 GREEN 6. VGA Pin Definition Definition Definition Green Blue I2C DATA HSYNC VSYNC I2C CLK 7. LVDS connector Pin Definition Definition Definition +3.3V +3.3V +3.3V +3.3V DATA1- DATA0- DATA1+ DATA0+ CLK- DATA2- CLK+ DATA2+ DATA3- Brightness DATA3+ Colormetrics V1506 www.colormetrics.info...
- Page 13 Definition Definition HotPlug Detect TxD0- TxD0+ BKL enable Brightness AUX+ AUX- +12V +3.3V +12V +3.3V +12V +12V 9. DC Jack Pin Definition Definition +19V Ground +19V 10. RJ45(COM) connector Pin Definition Definition +5V/+12V DSR# DTR# RST# CTS# www.colormetrics.info Colormetrics V1506...
- Page 14 11. SATA: 22-pin SATA Pin Definition Definition Definition SATA_TX0_P SATA_TX0_N SATA_RX0_N SATA_RX0_P 12. Mini-PCIe Pin Definition Definition Definition WAKE# +V3.3V SMB__CLK PCIE_TX_N SMB_DATA PCIE_TX_P +1.5V CLKREQ# USB D- USB D+ CLK_PCIE_N CLK_PCIE_P Colormetrics V1506 www.colormetrics.info...
- Page 15 Left Out + Left Out - Right Out- Right Out+ 14. Touch Button for Power On/Off connector Pin Definition Definition +5V Standby +5V Status Power On# 15. NFC port connector Pin Definition Definition USB D- USB D+ www.colormetrics.info Colormetrics V1506...
- Page 16 Definition Definition DSR4# TxD5 for touch panel DTR4# RxD5 for touch panel RTS4# CTS4# +12V TxD4 RxD4 +3.3V +5V Standby USB D- USB D+ Power On# 18. RJ11(Cash Drawer) connector Pin Definition Definition C/D_OPEN# C/D Status +12V/+24V Colormetrics V1506 www.colormetrics.info...
-
Page 17: System Assembly & Disassembly
System Assembly & Disassembly System Assembly & Disassembly SYSTEM ASSEMBLY & DISASSEMBLY 4-1 HDD 1. Unscrew 4 screws and remove the base cover 2. Fasten HDD on HDD bracket with 2 screws 3. Install HDD with 2 screws www.colormetrics.info Colormetrics V1506... -
Page 18: Memory
4-2 Memory Dis-fasten 4 screws and remove the cover Install RAM to the socket Colormetrics V1506 www.colormetrics.info... -
Page 19: Msr
4. Fix MSR with 2 screws 4. Fix MSR with 2 screws 4. Fix MSR with 2 screws 4. Fix MSR with 2 screws 4. Fix MSR with 2 screws 4. Fix MSR with 2 screws 4. Fix MSR with 2 screws www.colormetrics.info Colormetrics V1506... -
Page 20: Vfd
4. Put the top cover (with the hinge hole) back 4. Put the top cover (with the hinge hole) back 4. Put the top cover (with the hinge hole) back 4. Put the top cover (with the hinge hole) back Colormetrics V1506 www.colormetrics.info... -
Page 21: The 2Nd Display
(VFD) cable 3. Install the 2 display with 2 screws 3. Install the 2 display with 2 screws 4. Put the top cover (with the hinge hole) back 4. Put the top cover (with the hinge hole) back www.colormetrics.info Colormetrics V1506... -
Page 22: Wi-Fi
( Notice: The antenna in black should be connected on position 1 of WI-FI module, and antenna in gray should be connected on position 2 of WI-FI module) 3. Put WI-FI module into socket with a screw Colormetrics V1506 www.colormetrics.info... -
Page 23: Device Driver Installation
Device Driver Installation Device Driver Installation DEVICE DRIVER INSTALLATION 5-1. Resistive Type Touch Panel and P-CAP 1. Click “Next”. 2. Click “Next”. www.colormetrics.info Colormetrics V1506... - Page 24 3. Click “Next”. 4. Select “None”, Click “Next”. 5 Click “OK”. Colormetrics V1506 www.colormetrics.info...
- Page 25 6. Select “Support Multi-Monitor System”, Click “Next”. 7. Click “Next”. www.colormetrics.info Colormetrics V1506...
- Page 26 8. Click “Next”. 9. Click “Next”. Colormetrics V1506 www.colormetrics.info...
- Page 27 10. Select “Create a eGalaxTouch Utility shortcut on desktop”, Click “Next”. www.colormetrics.info Colormetrics V1506...
- Page 28 11. Would you do 4 point calibration now? Click “Yes”. (Resistive Touch only) 12. Do 4 points aligrment to match display. 13. Calibration utility. Colormetrics V1506 www.colormetrics.info...
-
Page 29: Magstripe Card Reader Configuration Utility
Software folder of CD. Follow the wizard to complete the installation. Launching Program Below steps guide you how to load the Utility program. From Start/Programs, click MagSwipe folder Click MagSwipe Configuration Utility to launch the program. www.colormetrics.info Colormetrics V1506... - Page 30 Configuration Select Reader Interface The reader to be configured should be connected. Select the corresponding connected reader interface and click the Continue button Colormetrics V1506 www.colormetrics.info...
- Page 31 After the interface selection is made, click the Continue button. The utility attempts to communicate with the connected reader. If successful, the Home Menu Page is displayed. The Home Menu Page is shown below www.colormetrics.info Colormetrics V1506...
- Page 32 Load From File The configuration data can be loaded into the configuration utility from a file that has been previously saved. Select this command, start a "File Open" dialog, which allows selection of the file. Colormetrics V1506 www.colormetrics.info...
- Page 33 This button sets the reader with the default configuration parameters (the default factory settings). The settings take effect immediately. The default parameters affect all reader configurations settings. Close Close this dialog and return to the Home Menu Page. www.colormetrics.info Colormetrics V1506...
- Page 34 In the single swipe direction selections, the card can only be swiped in one specified direction to read the card. The default setting will decode card data with the card swiped in either the forward or the reverse direction. Colormetrics V1506 www.colormetrics.info...
- Page 35 (host) require an inter-character delay to simulate the effects of keystroke delays. Choosing a longer inter-character delay causes the characters to be sent at a slower rate. If the host system is not capable of receiving characters as fast as the reader www.colormetrics.info Colormetrics V1506...
- Page 36 NULL(no prefix or suffix). Track Start Sentinels Characters can be added to the beginning of each track data string to simulate the start of the track data. These can be special characters for identifying a specific track. Colormetrics V1506 www.colormetrics.info...
- Page 37 The default value is CR Send Start/End Sentinel The reader can send the Start/End sentinel for a track, decoded without error. Send Start/End Sentinel The reader can send the Start/End sentinel for a track, decoded without error. www.colormetrics.info Colormetrics V1506...
- Page 38 This option let reader to send out [SS]E[ES] if failed to read or missing data on a selected track. The default is off. The error output for track 1 is "%E?". The error output for track 2 is ";E?". The error output for track 3 is "+E?". Keyboard Settings Keyboard Settings Colormetrics V1506 www.colormetrics.info...
- Page 39 The user can input the number between 1 to 255 for the delay of output. Check Current Reader Setting After you connect the device, the current reader configuration can be displayed by selecting this button. The configuration data of the connected reader will be displayed like in the example: www.colormetrics.info Colormetrics V1506...
- Page 40 After you connect the device, the current reader configuration can be displayed by selecting button. The confi guration data of the connected reader will be displayed like in the example: this button. The configuration data of the connected reader will be displayed like in the example: Colormetrics V1506 www.colormetrics.info...
-
Page 41: Rfid
1.1 Check the Device Manager to verify the status of RFID reader. Computer Management -> Device Manager -> Other devices (The device will show a question mark if the installation is not done properly.) 1.2. Double-click to update driver. www.colormetrics.info Colormetrics V1506... - Page 42 1.3. Select “Browse my computer for driver software” . 1.4 Click Browse to select file called MP30U \Driver\FTDI\x64 And click “Next”. 1.5. Install the driver Colormetrics V1506 www.colormetrics.info...
- Page 43 1.6 Install complete and then click “close” 1.7 Restart the computer www.colormetrics.info Colormetrics V1506...
- Page 44 2. Install framework 4.0 2.1 Double-click to install. 2.2 Select “I have read and accept the license terms”. And click “Install”. Colormetrics V1506 www.colormetrics.info...
- Page 45 Software”. There is no software setup required; just double click the”MP Studio.exe”. The demonstration software can run either from CD or a copy on hard drive. The GUI of software is shown in below picture and ready to use. www.colormetrics.info Colormetrics V1506...
- Page 46 Following steps, as shown in below picture, demonstration a simple usage in reading UID of ISO14443A card for quick understanding. Colormetrics V1506 www.colormetrics.info...
-
Page 47: Configuration Utility Of I-Button Reader
Run the Clientron I Button Utility.exe setup file that is located in the Software folder of • Run the Colormetrics I Button Utility.exe setup file that is located in the Software folder of CD Run the Clientron I Button Utility.exe setup file that is located in the Software folder of •... - Page 48 Colormetrics V1506 www.colormetrics.info...
- Page 49 If the reader has not been connected to PC yet, please connect the reader and then click will be enabled. Refresh to get connected If the reader has not been connected to PC yet, please connect the reader and then click Refresh to get connected. www.colormetrics.info Colormetrics V1506...
- Page 50 Configuration Below is the main window of i-Button Utility program. Colormetrics V1506 www.colormetrics.info...
- Page 51 Length : i-Button ID length request from 0~16 Output order : 4 formats could be select at Attach /Remove i-Button ID iButton 64- Bit Registration Number: 8-Bit CRC + 48-Bit ID + 8-Bit FC DEMO SETUP&OUTPUT OUTPUT DATA : a!ab00000003bdfa01? b!ab00000003bdfa01? www.colormetrics.info Colormetrics V1506...
-
Page 52: Vfd
5-5 VFD Power on VFD and waiting test page of EEPROM test, Baud rate and Command page. Set up the customer display by " VFDset.exe” Setup VFDset.exe software. Colormetrics V1506 www.colormetrics.info... - Page 53 VFD module (Note: You may check it when power on VFD module), then click “Open COM” button. “Get Setting from VFD” button to get all the settings from Colormetrics and it’ll refresh “Get Setting from VFD” button to get all the settings from Clientron and it’ll refresh the the “VFDset.exe”...
- Page 54 You can type the character by keyboard (0x20h ~ 0x7Fh), if you press clear icon, it will clear the all Message characters on AP. b. Hex mode Hex mode can define the character from 0x20h to0xFFh，the range 0x80~0XFF which depends on the code page table. Colormetrics V1506 www.colormetrics.info...
- Page 55 “Download O.K! Please restart!” message popped up. Please restart display for enable new setting 9. Click “Save” button To save user’s setting in file; for example, save a file name as “GOODLUCK”, file set for welcome message. www.colormetrics.info Colormetrics V1506...
- Page 56 10. Click “Load” button After saving, you must restart the utility here. Then load your setting rename-GOODLUCK.vfd. Colormetrics V1506 www.colormetrics.info...
-
Page 57: Usb 2Nd Display
1. Double click on the DisplayLink executable, eg DisplayLink_RX.X.exe. The Windows User Account Control window opens (if enabled in the OS). 2. Click Yes. DisplayLink Core Software installs. The System Compatibility Check then runs. 4. Click Install (if the System Compatibility Check passes). www.colormetrics.info Colormetrics V1506... - Page 58 Connect your DisplayLink enabled device. 6. Upon detection of a DisplayLink enabled device DisplayLink Graphics installs. Colormetrics V1506 www.colormetrics.info...
- Page 59 8. Reboot your SYSTEM to complete the installation. ☆ Due to the Intel BayTrail J1900 CPU limitation, the DisplayLink driver can only be supported Due to the Intel BayTrail J1900 CPU limitation, the DisplayLink driver can only be supported extend mode. extend mode. www.colormetrics.info Colormetrics V1506...
-
Page 60: Bios/Utility Setup
BIOS/Utility setup BIOS / UTILITY SETUP Press <DEL > key to enter SETUP CMOS UTILITY when system boot up. ☆ Please press <DEL > key tenderly and slowly. ☆ Please press <ENTER >over SCU Button key. Colormetrics V1506 www.colormetrics.info... - Page 61 Setting the wrong values in the sections below may cause the system to malfunction. Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware. Make sure that the settings made are compatible with the hardware. www.colormetrics.info Colormetrics V1506...
-
Page 62: Advanced
6-1 Advanced Use the Advanced menu to configure the system for basic operation through the following sub-menus: Colormetrics V1506 www.colormetrics.info... - Page 63 6-1-1 Boot Configuration Use the Boot Configuration menu to select power-on state for Numlock. www.colormetrics.info Colormetrics V1506...
- Page 64 6-1-2 Audio Configuration Use the Audio Configuration menu to read Audio configuration information and configure the Audio settings Colormetrics V1506 www.colormetrics.info...
- Page 65 6-1-3 Video Configuration Use the Video Configuration menu to read Video configuration information and configure the Video settings www.colormetrics.info Colormetrics V1506...
- Page 66 6-1-4 SATA Configuration Use the SATA Configuration menu to read SATA configuration information and configure the SATA settings Colormetrics V1506 www.colormetrics.info...
-
Page 67: Security
6-2 Security Use the Security menu to install or change the password www.colormetrics.info Colormetrics V1506... -
Page 68: Power
Enable or disable system wake by onboard LAN chip COM Voltage This item allows you to select off, 5V or 12V powered COM LVDS Firmware update This item allows you to enable or disable LVDS Firmware update Colormetrics V1506 www.colormetrics.info... -
Page 69: Boot
6-4 Boot Use the Boot menu to select type to Dual type, Legacy type or UEFI type. www.colormetrics.info Colormetrics V1506... -
Page 70: Exit
6-5 Exit Use the Save & Exit menu to load default BIOS values, optimal failsafe values or to save configuration changes. Colormetrics V1506 www.colormetrics.info... -
Page 71: Lcd Surface Cleaning
3. What types of cleaners are acceptable? ☆ Water ☆ Vinegar (mixed with water) ☆ Isopropyl Alcohol NOTICE: The following cleaners are unacceptable: ☆ Acetone ☆ Ethyl alcohol ☆ Ethyl acid ☆ Ammonia ☆ Methyl chloride www.colormetrics.info Colormetrics V1506...
