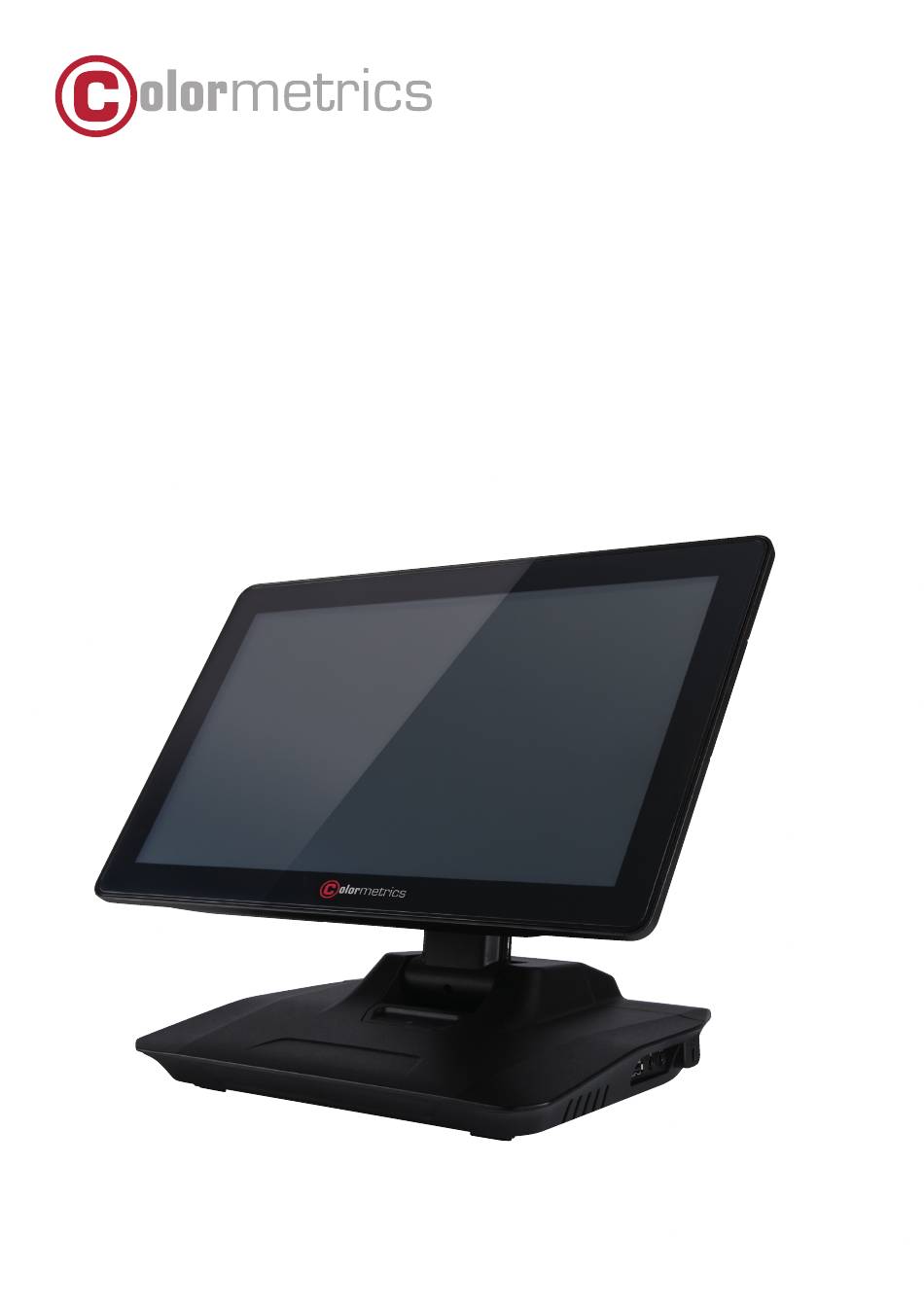

Vion
User Manual
Version 1.0
Errors excepted; subject to change
www.colormetric.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vion and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Colormetrics Vion

Summary of Contents for Colormetrics Vion

  • Page 1 Vion User Manual Version 1.0 Errors excepted; subject to change www.colormetric.net...
  • Page 2 We reserve the right to revise this document or make changes in the specifications of the product described therein at any time without notice and without obligation to notify any person of such revision or change. Colormetrics Vion www.colormetric.net...
  • Page 3 Dispose used batteries according to the manufacture’s instructions. Do not remove the cover, and ensure no user serviceable components are inside. Take the unit to the service center for service and repair. www.colormetric.net Colormetrics Vion...
  • Page 4 (WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union. This label is applied to various products to indicate that the product is not to be thrown away, but rather reclaimed upon end of life per this Directive. Colormetrics Vion www.colormetric.net...
  • Page 5 6-1. Resistive Type Touch Panel and P-CAP 6-2. MagStripe Card Reader Configuration Utility 6-3. RFID 6-4. Configuration Utility of i-Button Reader 6-5. VFD VD1220 7 BIOS/UTILITY SETUP 7-1. Advanced 7-2. Security 7-3. Power 7-4. Boot 7-5. Exit 8 LCD SURFACE CLEANING www.colormetric.net Colormetrics Vion...
  • Page 6 - MSR (side) - Barcodescanner (1D/2D, front) - 2x20 customer display - 8” customer display - 10” customer display - 15” customer display - MSR + RF-ID (side) - MSR + iButton (side) - iButton (front) - Wi-Fi Colormetrics Vion www.colormetric.net...
  • Page 7 2 SYSTEM VIEW 2-1. Rear View Please make sure 19V DC plug in the right direction before plugging in DC jack. 2-2. Side View 2-3. Front View 2-4. Back View 2-5. Bottom View www.colormetric.net Colormetrics Vion...
  • Page 8 20% ~ 80%, non-condensing Display LCD Panel Size 115.1-inch TFT LED LCD Resolution 1366*768 Pixels Brightness 220 cd/m2 Touch Panel 5-wire Resistive Type / Projected Capacitive Type Note: Intel® Celeron J1900 CPU does not support POSReady 2009 / Windows XP Colormetrics Vion www.colormetric.net...
  • Page 9 2-7. Internal Layout www.colormetric.net Colormetrics Vion...
  • Page 10 4. Power off Put the finger on the pad for 0.5 second and slide your finger from right to left 3. Shut down Put two fingers on the pad for around 5 second, the power will shut down automatically Colormetrics Vion www.colormetric.net...
  • Page 11 2. USB HUB (CN5) Pin NO. Definition Pin NO. Definition +V5S NTXD4 +V5S NDSR4# NDSR4# +V5S +V5A NDSR4# +V5S NDSR4# +12V PM PWRBTN NTXD4 3. Speaker (SPK1) Pin NO. Definition SPKOUT L+ SPKOUT L- SPKOUT R+ SPKOUT R- www.colormetric.net Colormetrics Vion...
  • Page 12 4. 2 Layer I/O Board (CN7) Pin NO. Definition Pin NO. Definition +V5S SLCT +V5S +V5S +V5S ACK# STB# AFD# DSR#3 ERR# DCD#3 RTS#3 INIT# SIN3 CTS#3 SLIN# SOUT3 RI#3 BUSY DTR#3 COM3 Pin9 NRI3# COM3 Pin9 Colormetrics Vion www.colormetric.net...
  • Page 13 COM 4 port. Warning!! COM4 (RJ45 Connector) for external VFD use only. Never use on network device. If you are using on the network device will cause device damage. COM 4 port will be inactive if POS has internal VFD. (Alternative of COM 4 or internal VFD) www.colormetric.net Colormetrics Vion...
  • Page 14 1. Create the file: TEST.TXT Cash Drawer Status Input 2. Input below contents in TEST.TXT +12V CONTEXT-“000.0” MODE COM 6:300 Signal GND 4. DC Jack Pin NO. Signal Name Ground Ground Ground DC IN 19V Ground Ground Colormetrics Vion www.colormetric.net...
  • Page 15 5 SYSTEM ASSEMBLY & DISASSEMBLY 5-1. HDD 1. Unscrew 3 screws and remove the base cover 2. Fasten HDD on HDD bracket with 4 screws 3. Install HDD with 2 screws www.colormetric.net Colormetrics Vion...
  • Page 16 5-2. Memory 1. Unscrew 3 screws and remove the base cover 2. Put the memory into socket Colormetrics Vion www.colormetric.net...
  • Page 17 5-3. MSR 1. Remove MSR cover 2. Install MSR holder with 2 screws 3. Plug MSR cable 4. Install MSR with 2 screws www.colormetric.net Colormetrics Vion...
  • Page 18 5-4. VFD 1. Remove the Top cover 2. Plug VFD cable 3. Install VFD with 2 screws 4. Cover the Top cover (with Hinge hole) Alternative of external COM4 (RJ45 Connector) or Internal VFD. Colormetrics Vion www.colormetric.net...
  • Page 19 5-5. 8” 2 Display 1. Remove the Top cover 2. Plug 8” 2nd display cable 3. Install 8” 2nd display with 2 screws 4. Cover the Top cover (with Hinge hole) www.colormetric.net Colormetrics Vion...
  • Page 20 2. Connect 2 antennas on Wi-Fi module.( Notice: The antenna in black should be connected on position 1 of WI-FI module, and antenna in gray should be connected on position 2 of WI-FI module) 3. Put Wi-Fi module into socket with 1 screw Colormetrics Vion www.colormetric.net...
  • Page 21 5-7. Parallel cable Please ensure error proofing pin is on the upside position of the connector before plugging in www.colormetric.net Colormetrics Vion...
  • Page 22 6 DEVICE DRIVER INSTALLATION 6-1. Resistive Type Touch Panel and P-CAP 1. Click “Next”. 2. Click “Next”. Colormetrics Vion www.colormetric.net...
  • Page 23 3. Click “Next”. 4. Select “None”, Click “Next”. 5. Click “OK”. www.colormetric.net Colormetrics Vion...
  • Page 24 6. Select “Support Multi-Monitor System”, Click “Next”. 7. Click “Next”. Colormetrics Vion www.colormetric.net...
  • Page 25 8. Click “Next”. 9. Click “Next”. www.colormetric.net Colormetrics Vion...
  • Page 26 10. Select “Create a eGalaxTouch Utility shortcut on desktop”, Click “Next”. Colormetrics Vion www.colormetric.net...
  • Page 27 11. Would you do 4 point calibration now? Click “Yes”. 12. Do 4 points aligrment to match display. 13. Calibration utility. www.colormetric.net Colormetrics Vion...
  • Page 28 Software folder of CD. • Follow the wizard to complete the installation. Launching Program Below steps guide you how to load the Utility program. • From Start/Programs, click MagSwipe folder • Click MagSwipe Configuration Utility to launch the program. Colormetrics Vion www.colormetric.net...
  • Page 29 Continue button After the interface selection is made, click the Continue button. The utility attempts to communicate with the connected reader. If successful, the Home Menu Page is displayed. The Home Menu Page is shown below www.colormetric.net Colormetrics Vion...
  • Page 30 After selecting the appropriate interface for the reader, select one of the Home Menu Page buttons to proceed with the Magnetic Stripe Reader (MSR) configuration process. The „Basic Reader Settings“ group defines the basic operating parameters and data output format of the reader. Colormetrics Vion www.colormetric.net...
  • Page 31 This button sets the reader with the default configuration parameters (the default factory settings). The settings take effect immediately. The default parameters affect all reader configurations settings. Close Close this dialog and return to the Home Menu Page. www.colormetric.net Colormetrics Vion...
  • Page 32 The MSR will represent the raw data with two ASCII characters: the first ASCII character is for high bits of the raw data byte and the second is for the low bits. For example, the two ASCII characters „4“and „1“represent raw data byte 41h(01000001). Colormetrics Vion www.colormetric.net...
  • Page 33 After you click the Default Button, the general settings page will change back to the default value. Settings are not sent to MSR until the „Send to MSR“ button is clicked. Help Button Click the help button to open the help index for this section. www.colormetric.net Colormetrics Vion...
  • Page 34 These can be special characters for identifying a specific track. End Sentinel The magnetic stripe End Sentinel character can be added to the end of a magnetic stripe data string. This character simulates the end of character for track1, track2 or track3. This default is '?‘ Colormetrics Vion www.colormetric.net...
  • Page 35 This option let reader to send out [SS]E[ES] if failed to read or missing data on a selected track. The default is off. The error output for track 1 is „%E?“. The error output for track 2 is „;E?“. The error output for track 3 is „+E?“. www.colormetric.net Colormetrics Vion...
  • Page 36 The user can input the number between 1 to 255 for the delay of output. Check Current Reader Setting After you connect the device, the current reader configuration can be displayed by selecting this button. The configuration data of the connected reader will be displayed like in the example: Colormetrics Vion www.colormetric.net...
  • Page 37 Check the Device Manager to verify the status of RFID reader. Computer Management -> Device Manager -> Other devices (The device will show a question mark if the installation is not done properly.) 1.2 Double-click to Update driver. www.colormetric.net Colormetrics Vion...
  • Page 38 1.3 Select “Browse my computer for driver software.” 1.4 Click Browse to select file called HFF320U \Driver\FTD\x64 1.5 Install the driver Colormetrics Vion www.colormetric.net...
  • Page 39 1.6 Install complete and then click “close” 1.7 Restart the computer www.colormetric.net Colormetrics Vion...
  • Page 40 2. Install framework 4.0 2.1 Double-click to install. 2.2 Select “I have read and accept the license terms. And click Install. Colormetrics Vion www.colormetric.net...
  • Page 41 There is no software setup required; just double click the”MP Studio.exe”. The demonstration software can run either from CD or a copy on hard drive. The GUI of software is shown in below picture and ready to use. www.colormetric.net Colormetrics Vion...
  • Page 42 3.2 Following steps, as shown in below picture, demonstration a simple usage in reading UID of ISO14443A card for quick understanding. Colormetrics Vion www.colormetric.net...
  • Page 43 Below steps guide you how to install the Utility program. • Insert the setup CD • Run the I Button Utility.exe setup file that is located in the Software folder of CD • Follow the wizard to complete the installation. 1. Setup IButton _V1.0.exe software www.colormetric.net Colormetrics Vion...
  • Page 44 Colormetrics Vion www.colormetric.net...
  • Page 45 Colormetrics Vion...
  • Page 46 • The utility program will detect the connected reader. If detected, all the input text boxes will be enabled. • If the reader has not been connected to PC yet, please connect the reader and then click Refresh to get connected. Configuration Below is the main window of i-Button Utility program. Colormetrics Vion www.colormetric.net...
  • Page 47 • Length : i-Button ID length request from 0~16 • Output order : 4 formats could be select at Attach /Remove i-Button ID iButton 64- Bit Registration Number: 8-Bit CRC + 48-Bit ID + 8-Bit FC DEMO SETUP & OUTPUT OUTPUT DATA : a!ab00000003bdfa01? b!ab00000003bdfa01? www.colormetric.net Colormetrics Vion...
  • Page 48 6-5. VFD VD1220 1. Power on VFD and waiting test page of EEPROM test, Baud rate and Command page. Set up the customer display by „ VFDset.exe” 2. Setup VFDset.exe software. Colormetrics Vion www.colormetric.net...
  • Page 49 Please then follow the steps as shown in the above figure, the baud rate will show on states page of VFD module (Note: You may check it when power on VFD module), then click “Open COM” button. 4. “Get Setting from VFD” button to get all the settings from Colormetrics and it’ll refresh the “VFDset.exe” software.
  • Page 50 Hex mode Hex mode can define the character from 0x20h to0xFFh · the range 0x80~0XFF which depends on the code page table. Like the first character (0x80) · in default code page will show on VFD module. Colormetrics Vion www.colormetric.net...
  • Page 51 “Download O.K! Please restart!” message popped up. Please restart display for enable new setting. 9. Click “Save” button To save user’s setting in file; for example, below picture to save file name as “GOODLUCK” file set for Welcome Message. www.colormetric.net Colormetrics Vion...
  • Page 52 10. Click “Load” button After saving, you must restart the utility here. Then load your setting rename-GOODLUCK.vfd. Colormetrics Vion www.colormetric.net...
  • Page 53 Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility. WARNING! Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware. www.colormetric.net Colormetrics Vion...
  • Page 54 7-1 Advanced Use the Advanced menu to configure the system for basic operation through the following sub-menus: 7-1-1 Boot Configuration Use the Boot Configuration menu to select power-on state for Numlock. Colormetrics Vion www.colormetric.net...
  • Page 55 7-1-2 Audio Configuration Use the Audio Configuration menu to read Audio configuration information and configure the Audio settings 7-1-3 Video Configuration Use the Video Configuration menu to read Video configuration information and configure the Video settings www.colormetric.net Colormetrics Vion...
  • Page 56 7-1-4 SATA Configuration Use the SATA Configuration menu to read SATA configuration information and configure the SATA settings 7-2 Security Use the Security menu to install or change the password. Colormetrics Vion www.colormetric.net...
  • Page 57 This item allows you to select off, 5V or 12V powered COM. COM Voltage This item allows you to select off, 5V or 12V powered COM. LVDS Firmware update This item allows you to enable or disable LVDS Firmware update. www.colormetric.net Colormetrics Vion...
  • Page 58 7-4 Boot Use the Boot menu to select type to Dual type, Legacy type or UEFI type. 7-5 Exit Use the Save & Exit menu to load default BIOS values, optimal failsafe values and to save configuration changes. Colormetrics Vion www.colormetric.net...
  • Page 59 LCD laptop screens. Computer wipes can come in handy for fast clean-ups or when you want to avoid mixing up a cleaning solution yourself. 3. What types of cleaners are acceptable? Water Vinegar (mixed with water) Isopropyl Alcohol NOTICE: The following cleaners are unacceptable: Acetone Ethyl alcohol Ethyl acid Ammonia Methyl chloride www.colormetric.net Colormetrics Vion...
