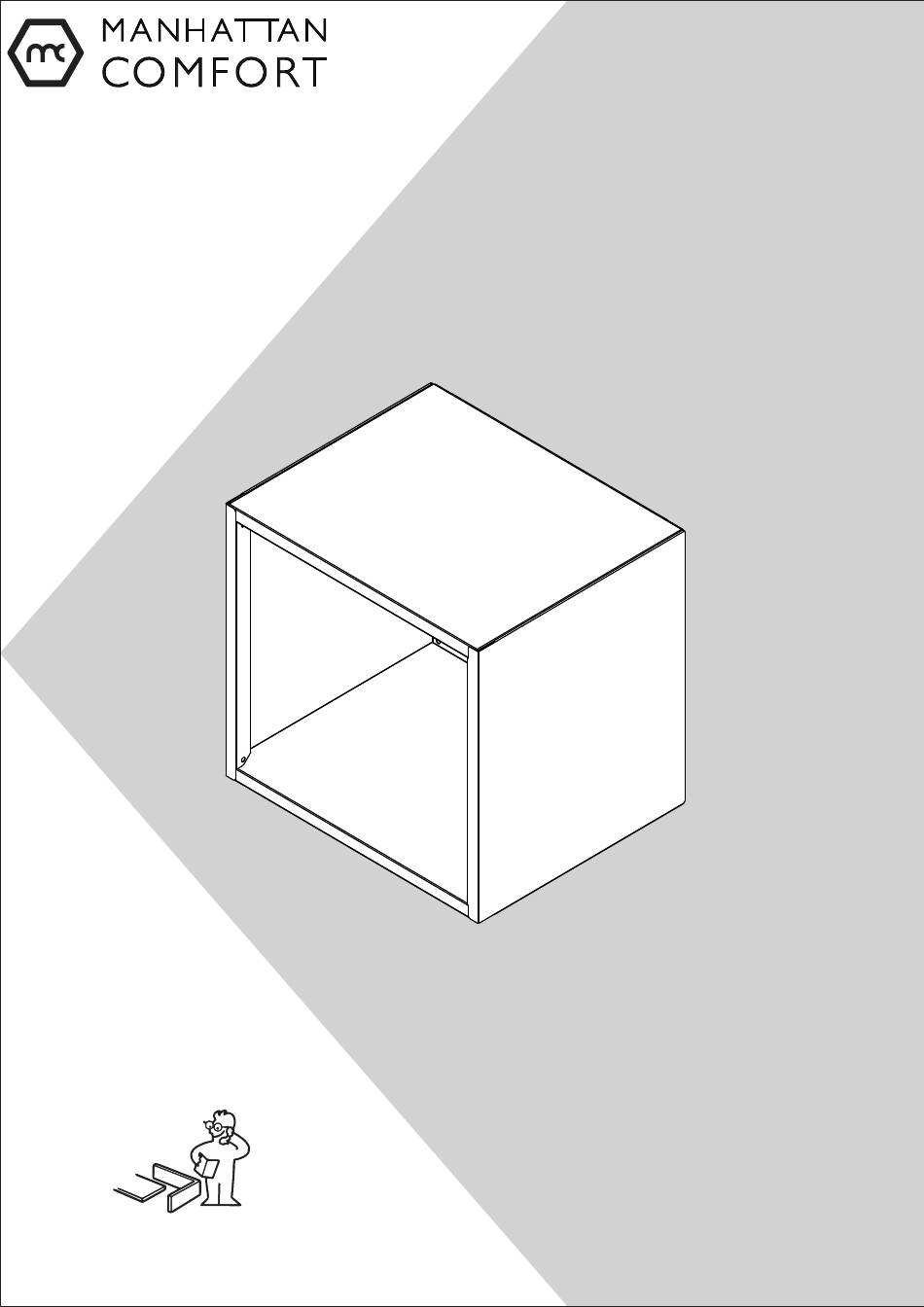

- Page 1 1000010418 - 13/03/2019 Assembly Guide Model: 13GMC1 / 13GMC2 / 13GMC3 Floating Shelf Stuck? Questions? We are here to help. 1-888-230-2225 help@manhattancomfort.com...
-
Page 2: Identification Of Parts
In order to ease the assembly, you should separate and identify the parts first Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly. *Tools Needed (not supplied) IMPORTANT In order to avoid severe or even fatal injuries, follow the instructions carefully. -
Page 3: Hardware List
ASSEMBLED PRODUCT: H: 12.59'' W:13.77'' L:11.22'' Maximum weight supported distributed Hardware list 1000008297 1000008616 1000009033 Qty. 4 Qty. 4 Qty. 1 1000000281 - WHITE 3000008409 1000008285 1000007352 - BLACK 1000010221 - BLUE Qty. 1 Qty. 1 Qty. 4... - Page 4 1 - Attach the parts P1, under the part P4. Positioning the cut-out of part P4 over the safety grappel of parts P1.
- Page 5 1 - Slightly incline the part P3, and place it inside the cut - out of the parts P1. 2 - Slide part P3 into the folds of parts P1 and. 1 - With the end of F3, smash the safety claw, locking part P3 to part P1 and P4. 2 - Finish folding it mannually.
- Page 6 IMPORTANT: REMOVE THIS RIBBON ONLY TO CONTINUE MOUNTING 1 - Attach the P3 part onto the P1 and P2 parts. 2 - Check all the fittings, before continuing.
- Page 7 1 - With the end of F3, smash the safety claw, locking part P1 to part P2 and P4. 2 - Finish folding it mannually. 1 - Using the F5 template, make markings on the wall as indicated. 2 - It is necessary to use the level. 3 - Drill the wall over the marked points.
- Page 8 1 - Insert the metal part of the bushing 2 - Pull the bushing driving it against into the hole until it overcomes the wall and then push the plastic the wall. ring until it leans close to the wall. WALL WALL Plastic ring...
- Page 9 1- Insert the screw F2 into the hole on the wall. 2- Turn the screw clockwise, using the F3 part . 1- Approach the cabinet by fitting the F2 screw.
- Page 10 1 - Align the cabinet with the use of a level. 2 - Mark the wall through the holes in the bottom of the cabinet. 1 - Move the cabinet away 2 - Drill the wall over the marked points. ½”...
- Page 11 1 - Insert the metal part of the bushing 2 - Pull the bushing driving it against into the hole until it overcomes the wall and then push the plastic the wall. ring until it leans close to the wall. WALL WALL Plastic ring...
- Page 12 1 - Position cabinet through the F2 screws that are already attached to the wall. 2 - Insert screw F2 through part P4. 2 - Turn the screw using the F3 part clockwise. 1 - Press part F4 against the heads of the F2 screws.
- Page 13 IMPORTANT: REMOVE THE RIBBON TO FINISH THE ASSEMBLY...
- Page 14 TAKING GOOD CARE OF YOUR CABINET Cleaning and caring instructions: - Avoid dragging objects on top of the cabinet. They might scratch the finishing. - Only non-abrasive natural chemical products are recommended to clean your cabinet. Simply wipe the cabinet down with a wet cloth to remove the cleaning product excess.
- Page 15 ITEMS EXCLUDED FROM WARRANTS This limited warranty does not cover: 1. In-home service including, but not limited to, service calls to correct the installation of any Manhattan Comfort Smart Diy products or to instruct the consumer on how to use or install them.
- Page 16 Stuck? Questions? We are here to help. 1-888-230-2225 help@manhattancomfort.com...
