Summary of Contents for Manhattan Comfort Nomad 122GMC

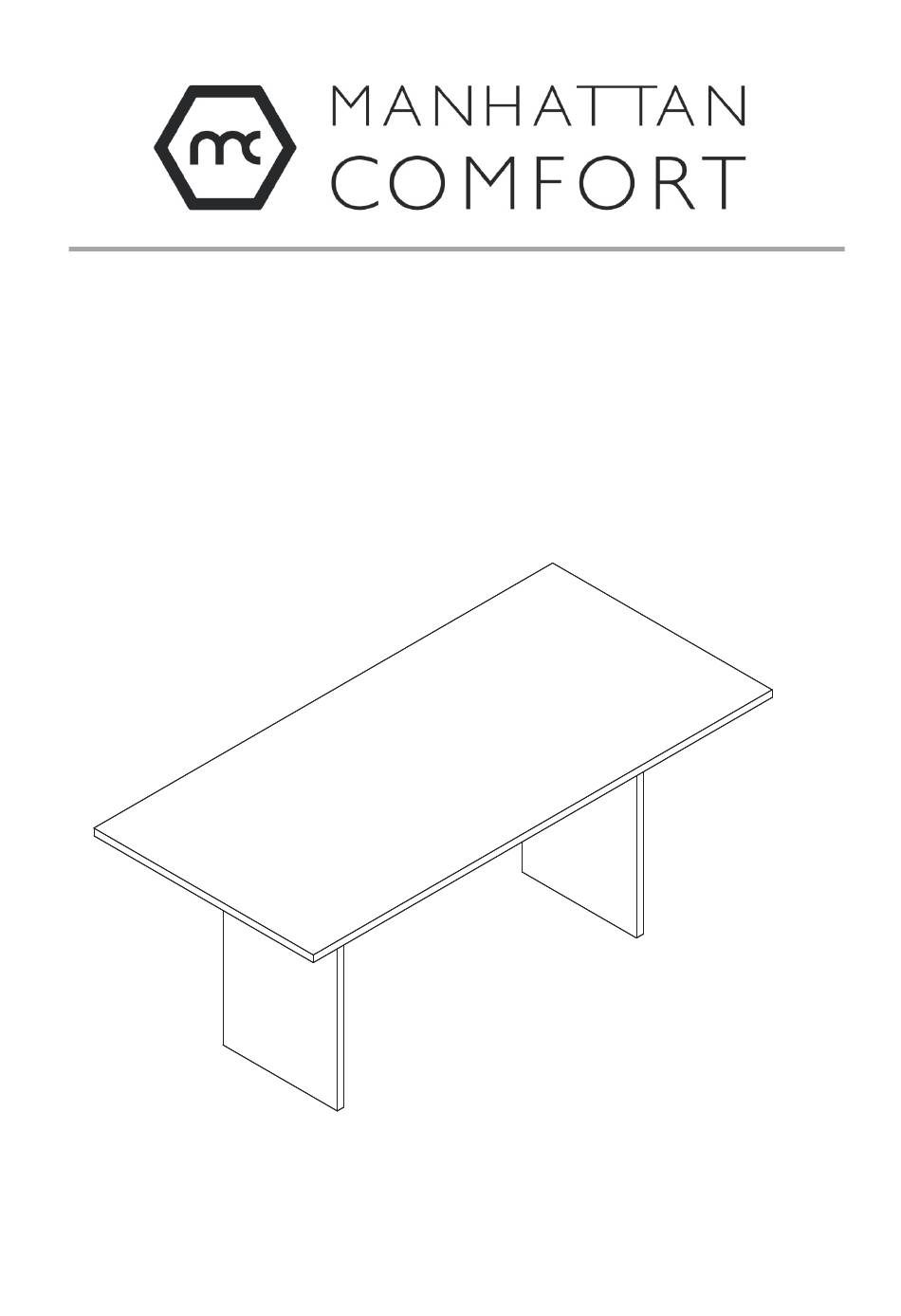

- Page 1 122GMC V.09302023...
-
Page 3: Included In The Package
Included in the package 01 - Top Panel = 01 piece 02 - Legs = 02 pieces 03 - Crossbar = 01 piece A = 04x B = 04x C = 10x D = 07x E = 07x F = 04x G = 04x H = 11x 110 lb... - Page 4 Step 01 Using a big screwdriver, fix the hardware (F) into Part (02) and fix the hardware (G) into the hardware (F). Step 02 Connect the hardware (C) onto the part (03). Nomad 03/06 dining table...
- Page 5 Step 03 Connect the parts (02) onto part (03) and fix the hardware (A+B). Apply the hardware (H) on the hardware (B). Step 04 Connect the hardware ( C) onto the parts (02 and 03) Nomad 04/06 dining table...
- Page 6 Step 05 Connect the hardware (D) into the part (01). Step 06 Connect the part (01) onto parts 02 and 03 and fix the hardware (E) into hardware (D). Apply the hardware (H) on hardware (E). Nomad 05/06 dining table...
- Page 7 Step 07 Turn hardware (G) to the left of the right to adjust the height of the bench. Nomad 06/06 dining table...
