O P E R A T I N G I N S T R U C T I O N S

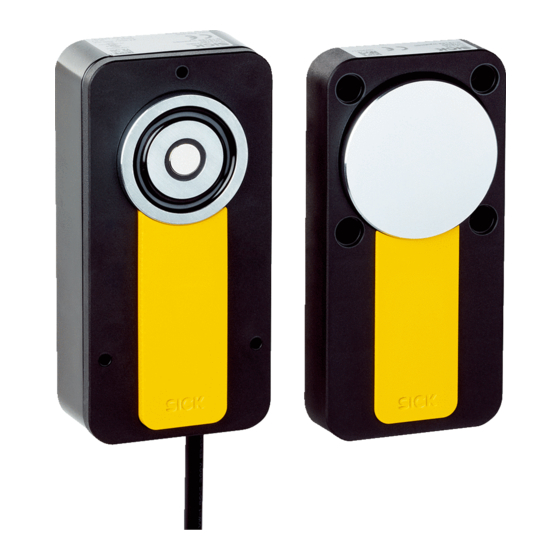

MLP1
Safety switch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLP1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK MLP1

Summary of Contents for SICK MLP1

  • Page 1 O P E R A T I N G I N S T R U C T I O N S MLP1 Safety switch...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Thorough check..................Troubleshooting................. 31 Safety......................Troubleshooting..................Maintenance..................32 Cleaning..................... 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 4 14.1 Connectivity....................Annex....................44 15.1 Compliance with EU directives..............O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...

  • Page 5: About This Document

    Indicates a situation presenting possible danger, which may lead to moderate or minor injuries if not prevented. 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 6 Visible and invisible beam • A combination of multiple hazards O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...

  • Page 7: Safety Information

    The following may impair the function of the safety switch: • Passing metal chips 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...

  • Page 8: Requirements For The Qualification Of Personnel

    O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK...

  • Page 9: Product Description

    Plug connector OUT LOCK light emitting diode OSSD light emitting diode 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 10 Short-circuit protection at all outputs • Cross-circuit monitoring at OSSDs O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...
  • Page 11 This will not have any effect on the actual switching behavior of the safety switch. 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...

  • Page 12: Project Planning

    Ensure that there is no bypassing by replacement actuators. Restrict access to actuators. O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...

  • Page 13: Assembly

    8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 14 The machine must switch to the safe state at any time if at least one OSSD in an OSSD pair switches to the OFF state. O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK...
  • Page 15 (Radio Safety Class A). Radio interference cannot be ruled out when used in residential areas. 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 16 Actuator in the response area O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...
  • Page 17 Both connection methods can be combined as desired. 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 18 The maximum number of safety switches in a cascade changes depending on the total length of cable as follows: O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK...

  • Page 19: Thorough Check Concept

    Thorough check of the locking solenoid for correct function 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...

  • Page 20: Mounting

    Mounting the sensor Unscrew the fixing screw (hexagon socket, 2 mm) and remove the cover plate: O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK...
  • Page 21 The screws can be set in the front or the back: Figure 8: Surface mounting 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 22 Figure 10: Maximum angle between sensor and actuator Cover drill holes of the actuator with protective caps. O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK...

  • Page 23: Electrical Installation

    24 V DC Applies to the extension cables recommended as accessories. 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...

  • Page 24: Device Connection (M12, 8-Pin)

    T-connectors, and nodes are required for voltage supply (see "Acces‐ sories", page 41). O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...
  • Page 25 (e.g., protective cover with disposable screws) 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 26 If the cascade is created using T-pieces, install the connecting cables in a way that pre‐ vents a single T-piece (and therefore a safety switch) from simply being jumpered. O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK...
  • Page 27 Figure 12: Cascading several safety switches Safe evaluation unit Connecting cable, M12, 5-pin 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 28 Combining connection methods as desired The various connection methods can be combined within a cascade as desired. O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK...
  • Page 29 Locking solenoid voltage supply Applies to the extension cables recommended as accessories. 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...

  • Page 30: Commissioning

    O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK...

  • Page 31: Troubleshooting

    OFF state. 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...

  • Page 32: Maintenance

    Carry out the thorough checks according to the instructions from the manufacturer and the machine user. O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK...

  • Page 33: Decommissioning

    We will be glad to help you dispose of these devices on request. 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...

  • Page 34: Technical Data

    Length of connecting cable 150 mm O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...
  • Page 35 120 mm x 60 mm x 20.5 mm Material Sensor housing Anodized aluminum 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 36 Depending on alignment, see "Mounting sev‐ eral safety switches", page 20 O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...

  • Page 37: Dimensional Drawings

    Figure 15: Dimensional drawing of MLP1 sensor with 1 × M12 male connector 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 38 4 x Ø 5 Figure 17: Dimensional drawing for flush mounting O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...

  • Page 39: Ordering Information

    1077943 Cable with male connector, M12, 8-pin MLP1-SMMF0AC 1080321 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...

  • Page 40: Spare Parts

    Part Type code Part number MLP1 actuator MLP1-XA 2092167 O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...

  • Page 41: Accessories

    Ambient operating temperature: Down to −30° C with fixed installation. 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 42 1078201 Ambient operating temperature: Down to −30° C with fixed installation. O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...
  • Page 43 Figure 20: Internal circuitry: nodes for voltage supply ordering information 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...

  • Page 44: Annex

    (part number: see the type label entry in the “Ident. no.” field). O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...
  • Page 45 ANNEX 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 46 ANNEX O P E R A T I N G I N S T R U C T I O N S | MLP1 8020169/ZJN1/2018-03-21 | SICK Subject to change without notice...
  • Page 47 ANNEX 8020169/ZJN1/2018-03-21 | SICK O P E R A T I N G I N S T R U C T I O N S | MLP1 Subject to change without notice...
  • Page 48 Phone +36 1 371 2680 Phone +386 591 788 49 E-Mail office@sick.hu E-Mail office@sick.si India South Africa Phone +91 22 6119 8900 Phone +27 11 472 3733 Further locations at www.sick.com E-Mail info@sick-india.com E-Mail info@sickautomation.co.za SICK AG | Waldkirch | Germany | www.sick.com...
