Select Engineered Systems - Cellular Select Gate Programming Guide

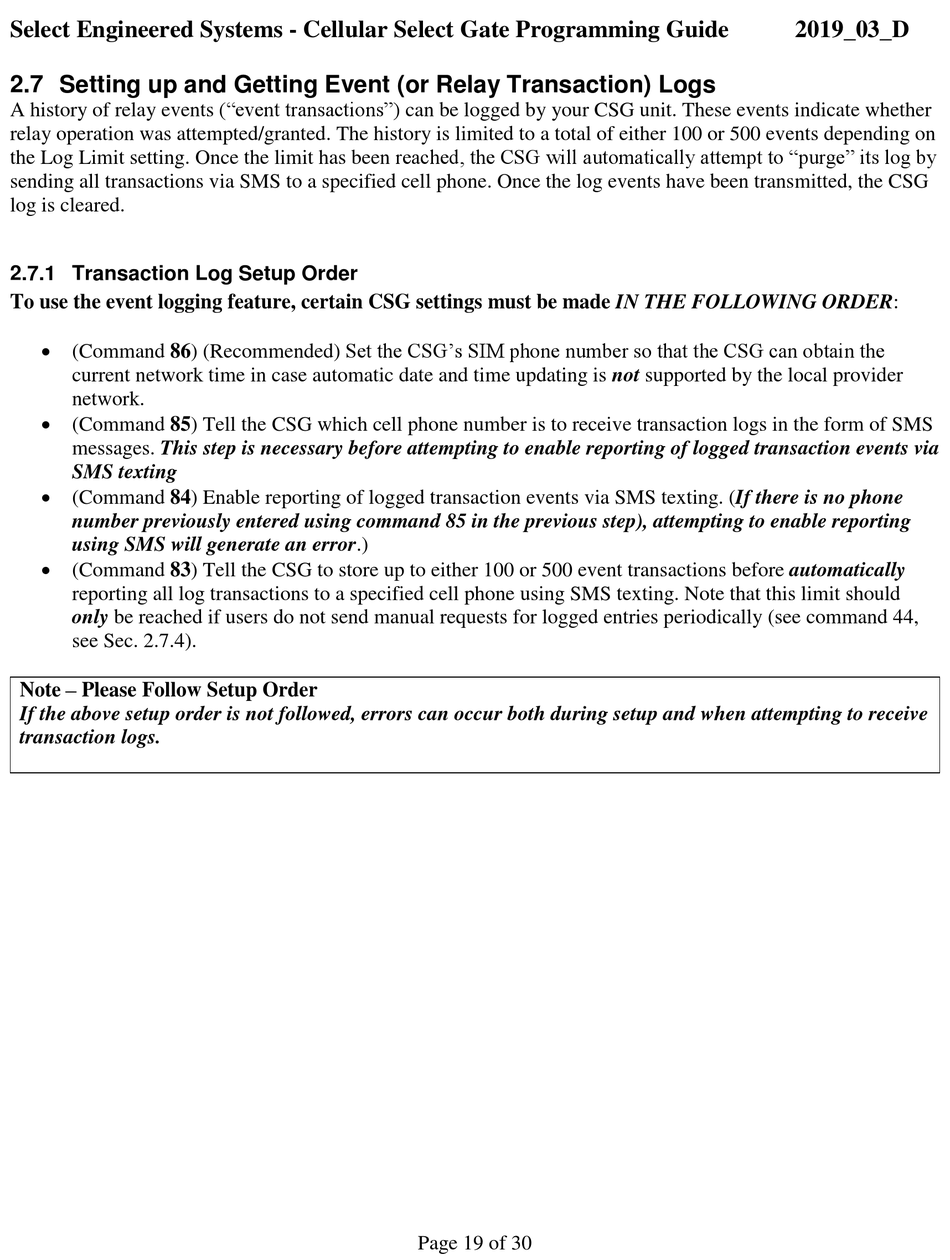

2.7 Setting up and Getting Event (or Relay Transaction) Logs

A history of relay events ("event transactions") can be logged by your CSG unit. These events indicate whether
relay operation was attempted/granted. The history is limited to a total of either 100 or 500 events depending on
the Log Limit setting. Once the limit has been reached, the CSG will automatically attempt to "purge" its log by
sending all transactions via SMS to a specified cell phone. Once the log events have been transmitted, the CSG
log is cleared.

2.7.1 Transaction Log Setup Order

To use the event logging feature, certain CSG settings must be made IN THE FOLLOWING ORDER:
 (Command 86) (Recommended) Set the CSG's SIM phone number so that the CSG can obtain the
current network time in case automatic date and time updating is not supported by the local provider
network.
 (Command 85) Tell the CSG which cell phone number is to receive transaction logs in the form of SMS
messages. This step is necessary before attempting to enable reporting of logged transaction events via
SMS texting
 (Command 84) Enable reporting of logged transaction events via SMS texting. (If there is no phone
number previously entered using command 85 in the previous step), attempting to enable reporting
using SMS will generate an error.)
 (Command 83) Tell the CSG to store up to either 100 or 500 event transactions before automatically
reporting all log transactions to a specified cell phone using SMS texting. Note that this limit should
only be reached if users do not send manual requests for logged entries periodically (see command 44,
see Sec. 2.7.4).
Note – Please Follow Setup Order
If the above setup order is not followed, errors can occur both during setup and when attempting to receive
transaction logs.
Page 19 of 30
2019_03_D
