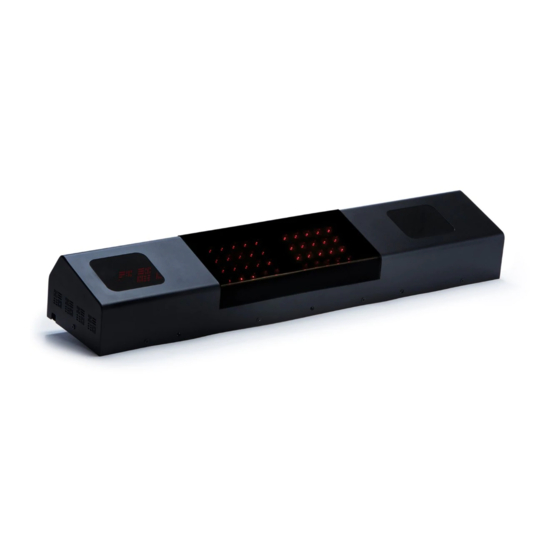

Summary of Contents for UNEEKOR QED

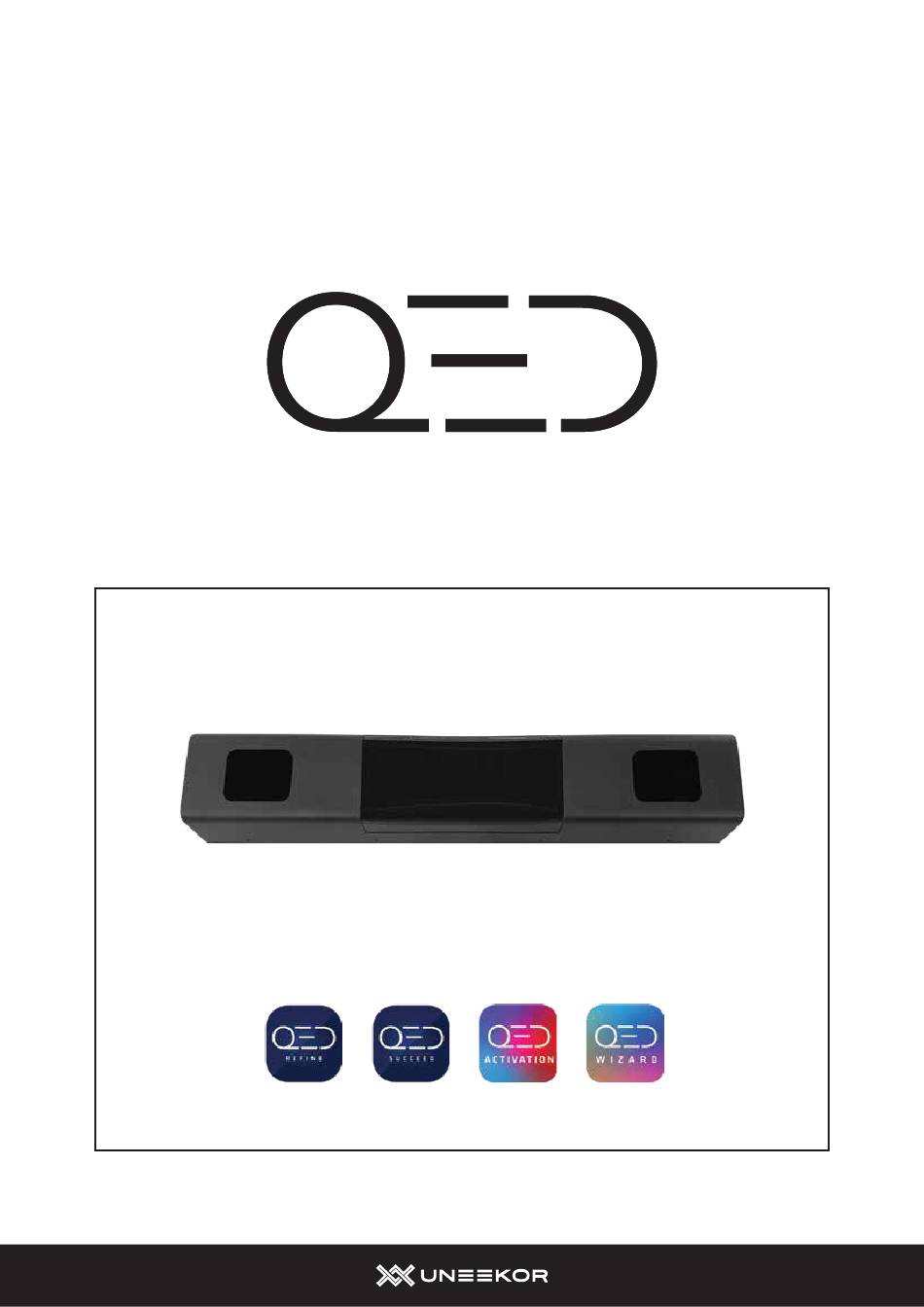

- Page 1 Installation Guide TRUSTWORTHY GOLF SIMULATOR Step 1: Hardware Installation Guide Step 2: Software Installation Guide...
- Page 2 Do not modify the plug provided. If it will not fit the outlet, have proper outlet installed by a qualified electrician. UNEEKOR, INC. 3155 W. BIG BEAVER RD SUITE 108 TROY, MI 48084...
-
Page 3: Table Of Contents
Contents Contents Warning - To Ensure Safe Use 1. Installation Environment 2. Included Items 3. Hardware Install 4. Connection Status 5. Software Install 6. Specifications... - Page 4 Warning - To Ensure Safe Use Improper handling or operation of this machine may result in injury or damage to property. Points which must be observed to prevent injury or damage are described as follows. Used for instructions intended to alert the WARNING user to the risk of severe injury should the unit be used improperly.
- Page 5 To Ensure Safe Use - Continued This is a heavy machine. WARNING Install in a level and stable location. Failure to do so may result in falling of the machine, leading to injury. Never attempt to disassemble, repair, or modify the machine. Doing so may result in fire, electrical shock, or injury.
-
Page 6: Installation Environment
1. Installation Environment PC Specifications - CPU: Intel i5 8400 or higher. - RAM: 8GB. - Graphics: GeforceGTX 1060. - Operating System: Windows 10 (64 bit) Version 1803 and higher. - Resolution: Full HD. -
Page 7: Included Items
Power USB Ethernet Power Cable (1) Power Adapter (1) Connector (1) Adapter (1) Ethernet Marked Balls (24) M4 32mm M6 15mm LAN Cable (1) QED Sensor Bar Bracket USB - Software Calibration Chart... -
Page 8: Hardware Install
3. Hardware Install Confirm installation requirements are met from Section 1 “Installation Require- WARNING ments,” and outline bracket location on ceiling. Consult with building manager or land- WARNING lord about the specifications and weight capacity of the ceiling before installa- tion. - Page 9 3.1 Hardware Install 1. Mount Bracket The QED Sensor and bracket come attached together in the box. Slightly loosen the black M6 15 mm screws that are holding the sensor to the bracket so you can remove it. Place the ladder under the ceiling mounting position.
- Page 10 3.2 Hardware Install 2. Slide Sensor After the bracket has been firmly mounted to the ceil- ing, you will install the sensor bar. The sensor bar comes with 6 black M6 15mm screws already inserted; 3 screws in the front and 3 screws in the back. Make sure all 6 screws are about half way screwed into the bar and even in length.
- Page 11 3. Connection Necessary Tool Necessary Tool Necessary Parts Necessary Parts Ethernet LAN Cable Power Cable Power Adapter Power Connecter Take out the Ethernet LAN cable from the box. Connect the end with the tag that reads “Connect this side of LAN cable to Sensor ONLY”...
-
Page 12: Connection Status
Check and see if the power is on. You will see a bright red light on the switch of the sensor. Check and see if your QED Sensor and PC are paired through the network - static IP address. Please refer to our “Network Settings Guide” to set the IP address. -
Page 13: Software Install
5. Software Install Please make sure PC requirements are met from section 1 “Installation Environment,” before the WARNING installation process. Failure to do will result in installation issues and slow gameplay. Please make sure the connection statuses are clear and everything is paired. Failure to do will result in WARNING installation issues. - Page 14 You will receive an email with a license code from support@uneekor.com which looks like this: QED_30000965XXXX.license Please transfer it to the USB. Open QED_Installation_wizard from your USB Click “browse” once the QED Installer opens and search for the QED license from step 2 QED_30000965XXXX.license...
- Page 15 “Aio-runtimes,” “Teamviewer10,” and “DirectX.” The 2 softwares from “Sensor Software” section: “Z3CAM Sensor & Z3CAM Activation” QED Software Section: “QED_Ignite,” “QED_Refine,” and “QED_Suceed.” This will depend on your purchase. Please install each software one at a time ONLY. Click “Install” button for each install. “Aio-Runtimes” must be installed...
- Page 16 5.3 Software Install Steps: Aio-runtimes: Please select only “Visual C++ Runtime files, and unselect the rest. These ”Visual C++ Runtime files are required to run tools and the game. Then Click “Install.” (If you do not see the “Visual C++Runtime files it means your PC already has these downloaded from another install) Teamviewer: Please select “Basic Installation”...
- Page 17 5.4 Software Install Direct X: Please select “I accept the agreement” and click “Next >” UNCHECK the “Install the Bing Bar” option and then click “Next>” Click “Finish” when the download is complete.
- Page 18 5.5 Software Install Z3CAM Sensor: Click “Next” to start the Z3CAM sensor install in the setup window Default destination folder will be in C: Drive. If you would like to change the destination click “Browse...” and choose your folder. Click “Install” to start the install.
- Page 19 5.6 Software Install You will see this screen once the install has started The “Run Z3CAM Sensor 1.0 is checked. Uncheck it and click ”Finish.”...
- Page 20 5.7 Software Install Z3CAM Activation: Click “Browse” to find that QED_License code from step 4. Then click “Activation.” QED_30000965XXXX.license Z3CAM...
- Page 21 Depending on what package you purchased and steps 2-4, you will be only allowed to choose the specific software to install. NOTE: All QED sensors come with “Ignite” software. Ignite is NOT gameplay software. Install “QED_IGNITE” software first, then install “QED_REFINE,” or “QED_SUCCEED,”...
- Page 22 5.9 Software Install Click “Browse” to find that QED_License code from step 4, then click activation. Then on the final window click “Finish” QED_30000965XXXX.license For Refine and Succeed install it is the same process as ”Ignite” except the “Open AL” set up. “Open AL”...
- Page 23 Click browse to find that QED_License code from step 4. Then click “Activation.” *It is important during this process to NOT click the exit button. QED_30000965XXXX.license If activation was successful you will see this screen. If actiivation failed, please contact support@uneekor.com. You are now finished with software installation...
-
Page 24: Specifications
6. Specifications Items Contents Components 2 Hyper Speed Cameras (few thousand fps each) 2 Infrared LED Boards Control Board Power Board Data Interface Ethernet (CAT6 and above) Communication 1 GBps Speed Spin Data Top Spin 12,000 ~ Back Spin 12,000 Measurement Ball Speed Putter: 0.1 m/s ~ 30 m/s Range...
