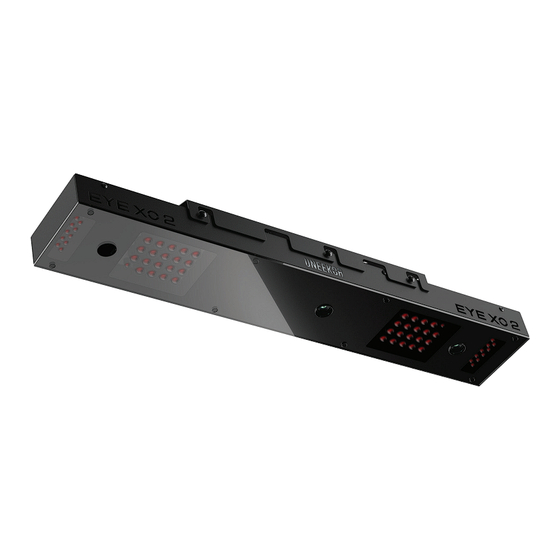

- Page 1 USER MANUAL Important: Read before using.
- Page 2 Notice Grounding Instructions In the event of a malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. This tool is equipped with an electrical cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.
-
Page 3: Table Of Contents
To Ensure Safe Use Installation What’s Included Hardware Installation Step 1: Mounting Bracket Step 2: Sensor Insert Step 3: Connection Step 4: Connection Status Trouble Mats Software Installation Calibration Guide Calibrating Instructions Without Trouble Mats With Trouble Mats Club Sticker Placement Club Sticker Application Appendix Club Data... -
Page 4: To Ensure Safe Use
To Ensure Safe Use Improper handling or operation of this machine may result in injury or damage to property. Points which must be observed to prevent injury or damage are described as follows. Used for instructions intended to alert the user to the risk of severe injury should the WARNING unit be used improperly. - Page 5 To Ensure Safe Use - Cont This is a heavy machine. WARNING! Install in a level and stable location. Failure to do so may result in falling of the machine, leading to injury. Never attempt to disassemble, repair, or modify shock, or injury. Entrust repairs to a trained technician.
-
Page 6: Installation
Category Requirement Intel i5 8400 or higher* 8 GB Graphics Card GeForceGTX 1060 or higher Operating System Windows 10 (64bit) Version 1803 or higher Resolution 1920 x 1080 Connectivity Ethernet Port Required * AMD: 3rd gen Ryzen or higher and AMD Ryzen 3600 or higher (AMD 2700 is not compatible). EYE XO2 USER MANUAL... -
Page 7: What's Included
The following items are included with the sensor. Make sure they are all present and accounted for. EYEXO2 Sensor Bracket Calibration Chart Trouble Mats Power Power Cable Power Adapter Connector USB Ethernet Ethernet LAN Club Stickers Adapter Cable Level M4 32mm screws M6 15mm screws M6 15mm low screws M6 15mm high screws... -
Page 8: Hardware Installation
Hardware Install Used for instructions intended to alert the WARNING user to the risk of severe injury should the unit be used improperly. Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used WARNING improperly. -
Page 9: Step 1: Mounting Bracket
Hardware Install Step 1: Mount Bracket The EYE XO2 Sensor and bracket come attached together in the box. Slightly loosen the black M6 15 mm screws that are holding the sensor to the bracket so you can remove it. Please make sure you have measured 3.5 feet from the front and middle of the sensor to your tee position. -
Page 10: Step 2: Sensor Insert
Hardware Install Step 2: Insert Sensor After the bracket has been firmly mounted to the ceiling, you will install the sensor bar. The sensor bar comes with 6 black M6 15mm screws already inserted; 3 screws in the front and 3 screws in the back. Make sure all 6 screws are about halfway into the bar and even in length. -
Page 11: Step 3: Connection
Hardware Install Step 3: Connection Ethernet LAN Power Cable Power Power Cable Adapter Connector NECESSARY PARTS Take out the Ethernet LAN cable from the box. Connect the end with the tag that reads “Connect this side of LAN cable to Sensor ONLY” to the sensor. -
Page 12: Step 4: Connection Status
Hardware Install Step 4: Connection Status It is important before you start the network setup process, that you have the sensor bar powered on and connected to your PC with the LAN cable provided to you in the shipping box. Make sure the LAN cable is DIRECTLY connected to your PC in the back Ethernet port. -
Page 13: Trouble Mats
* Both trouble mats are the same length x width Disclaimer: Uneekor Inc. does not assume responsibility for any damage caused to your hitting mat or any injury that may occur when creating an insert in for the Trouble Mats. -
Page 14: Software Installation
Software Installation Warning Please make sure PC requirements are met from section 1 “Installation WARNING Environment,” before the installation process. Failure to do will result in installation issues and slow gameplay. Please make sure the connection statuses are clear and everything WARNING is paired. - Page 15 Software Installation To begin the software installation for your EYE XO2. Please download the Uneekor Launcher found under the resources tab of Uneekor.com or use the link below. Uneekor Launcher For further information on using the Uneekor Launcher, please see below.
- Page 16 Software Installation - Cont Ensure your EYE XO2 is plugged into the power and the CAT6 cable is connected from the EYE XO2, directly into the Ethernet port on your PC. If connected using the USB 3.0 adaptor, you’ll run into issues using the EYE XO2. If these conditions are met, click “Continue.”...
- Page 17 EYE XO2. Then ensure your EYE XO2 is connected properly connected to your PC and power outlet, and then close and reopen the Uneekor Launcher to start the installation process over. You may enter license keys manually using the box under 1.
-
Page 18: Calibration Guide
CALIBRATION GUIDE Calibration Chart Parts required Uneekor Launcher Level Tool required Software required EYE MINI USER MANUAL... - Page 19 To Ensure Safe Use Confirm you have successfully finished the hardware and software installation WARNING before you begin the calibration process. The mounting position of the EYE XO2 sensor must be perfectly aligned 3 feet 6 inches in front of your tee position and WARNING between 9 - 10 feet for the ceiling height.
- Page 20 Calibrating During the installation process of the EYE XO2 using the launcher, it will automatically pull up the calibration tool. Please follow the prompts on the launcher to calibrate your EYE XO2. If you have any issues calibrating your device using the instructions on the launcher, please see the next page. Prior to calibrating your EYE XO2.
-
Page 21: Calibrating Instructions
Calibrating Step 1 During Step 6 of the installation process, the calibration tool on the right will open. Please follow the prompts on the screen. Lay the calibration board flat and ensure the calibration board is within the red squares on all 3 windows. *Ensure there are no other objects visible in each camera view when calibrating your launch monitor. -
Page 22: Without Trouble Mats
Calibrating Step 4 Once the system is finished calibrating the launch monitor, you will see the screen pictured to the right. ** Calibrating without Trouble Mats Remove the Calibration board, click Step 5 ** Calibrating with Trouble Mats Click “Enable rough/ bunker zone” to calibrate your sensor with the trouble mats. - Page 23 Calibrating Calibrating with no Trouble Mats Step 6 Once the system is finished calibrating the launch monitor you will see the screen pictured below. Please take a test shot to ensure the EYE XO2 was calibrated correctly and operational. Select the applicable club you will be testing and take a shot.
- Page 24 Calibrating Calibrating with Trouble Mats Step 7 Installation and calibration of your EYE XO2 is now complete. Click “Continue” and navigate to the “Start” tab on the left column to proceed to installing your View and Refine/ Refine+ software. *(Refine/ Refine+ sold EYE XO2 USER MANUAL...
-
Page 25: Club Sticker Placement
CLUB STICKER PLACEMENT CLUB STICKER PLACEMENT Overview EYE XO2 USER MANUAL... - Page 26 CLUB STICKER PLACEMENT Driver 2-2.4 inches Driver 8 groove 1.) The position closest to the horizontal center line should be used as a reference. 2.) The Dot sticker should line up to the middle of the Bar sticker. 3.) Avoid placing both stickers near the sweet spot. 4.) Attach to the flat surface of the face to avoid creasing or bending the stickers.
-
Page 27: Club Sticker Application
STICKER APPLICATION 1 Woods/Hybrids The sticker must not cross or bend over the leading edge. Bring the stickers in the sweet spot if it cannot fit inside the whole face. The sticker must be attached inside the club face for proper reading. - Page 28 STICKER APPLICATION 2 Driver Clubs Without Grooves All 4 corners of the stickers should be attached inside the club face. If there is an aim marker on the crown of the driver, use it as reference for the vertical center line. The top of the bar and dot sticker must be aligned with the horizontal center line.
-
Page 29: Appendix
Appendix Understanding the Data Club Data Club Speed The speed of the club before impact. Smash Factor The amount of energy transferred from the club head to the golf ball. Face to Path The amount of energy transferred from the club head to the golf ball. - Page 30 Appendix Cont. Understanding the Data Club Data Attack Angle The up and down movement of the club head at the time of impact. Attack angle is measured relative to the horizon. Club Path The in to out or out to in movement of the club head’s geometric center at the time of impact.
- Page 31 Appendix Cont. Understanding the Data Club Data Dynamic Loft The amount of loft of the club face at the center point of impact. Club Lie Angle Lie angle is the angle created between the center of the shaft and ground when you put your iron down in the address position.
-
Page 32: Ball Data
Appendix Cont. Understanding the Data Ball Data Ball Speed Measurement of the golf ball’s velocity measured just after impact with the club face Side Spin Measurement of horizontal spin on the golf ball that causes your golf ball to slice or draw Back Spin Measurement of reverse rotation of the golf ball in relation to the ball’s trajectory (Backspin generates an upward force... - Page 33 Appendix Cont. Understanding the Data Ball Data Side Angle Angle at which the ball starts its flight, relative to a straight target line (Horizontal launch angle) Side Total Distance the ball travels in the air left or right of the target Launch Angle The initial angle of ascent of the golf ball just after impact (relative to the ground)
- Page 34 Appendix Cont. Understanding the Data Ball Data Angle of Descent The angle the golf ball comes down after hitting the apex Flight TIme The total amount of time that the golf ball spends in the air prior to landing on the ground Distance to Apex Distance the ball travels in the air before hitting the peak height of the ball’s trajectory...
- Page 35 Appendix Cont. Understanding the Data Ball Data Carry Distance the ball travels in the air Distance the ball travels after making contact with the ground Total Distance Total distance the golf ball travels including the carry and roll EYE XO2 USER MANUAL...
-
Page 36: Specfications
Specifications Items Contents 3 High Speed Cameras w/ Infrared LED Boards Components 1 Control Board 1 Power Board Data Interface Ethernet (CAT6 and above) Communication Speed 1 Gbps Spin Data Total Spin ±12,000 rpm Ball Speed Putter: 0.1 m/s ~ 30 m/s Measurement Range Ball Speed Driver/Iron: 5 m/s ~ 100 m/s Driver: -5 ~ 50 Degree... -
Page 37: Links
Links Launcher Overview Guide Uneekor Laucher EYE XO2 USER MANUAL... - Page 38 MASTER YOUR PASSION UNEEKOR, INC. 15770 LAGUNA CANYON RD SUITE 100 IRVINE, CA 92618 TEL: 1-949-328-7790 SALES@UNEEKOR.COM SUPPORT@UNEEKOR.COM...
