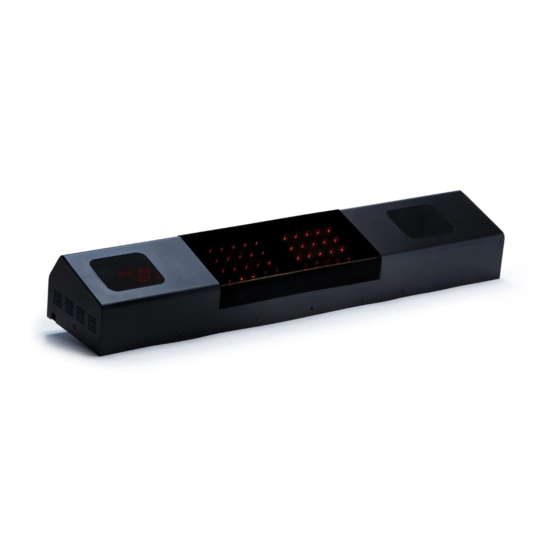

Summary of Contents for UNEEKOR QED
- Page 1 USER MANUAL Important: Read before using.
- Page 2 Do not modify the plug provided. If it will not fit the outlet, have proper outlet installed by a qualified electrician. QED USER MANUAL...
-
Page 3: Table Of Contents
What’s Included Hardware Installation Step 1: Mounting Bracket Step 2: Sensor Insert Step 3: Connection Step 4: Connection Status Software Installation Calibration Guide Calibrating Instructions Club Sticker Placement Club Sticker Application Appendix Club Data Ball Data Specfications Links QED USER MANUAL... -
Page 4: To Ensure Safe Use
Caution improperly. Material damage refers to damage to home, furnishing, or anything within the unit’s vicinity. This symbol alerts the user to items NEVER that should never be carried out. QED USER MANUAL... - Page 5 Operating in a dark or cluttered space may lead to accidents. Be aware of your surroundings and use cautiously with children around. Swinging the club during play without being aware will result in serious injury or death. QED USER MANUAL...
-
Page 6: Installation Environment
GeForceGTX 1060 or higher Operating System Windows 10 (64bit) Version 1803 or higher Resolution 1920 x 1080 Connectivity Ethernet Port Required * AMD: 3rd gen Ryzen or higher and AMD Ryzen 3600 or higher (AMD 2700 is not compatible). QED USER MANUAL... -
Page 7: What's Included
The following items are included with the sensor. Make sure they are all present and accounted for. QED Sensor Bar Bracket Calibration Chart Power Power Cable Power Adapter Connector USB Ethernet Ethernet LAN Adapter Cable Level Club Stickers M4 32mm screws... -
Page 8: Hardware Installation
This symbol alerts the user to items CAUTION that should never be carried out. NECESSARY PARTS NECESSARY TOOLS Ladder Phillips M4 32mm Bracket Sensor Bar Screwdriver Screw x9 QED USER MANUAL... -
Page 9: Step 1: Mounting Bracket
Please make sure you have measured 3.5 feet from the front of the sensor to your tee position. Do NOT align to the bracket. The QED is mounted 3.5’ behind the center of the hiting arera. Place the ladder under the location on the ceiling where the bracket will be mounted. -
Page 10: Step 2: Sensor Insert
Slide the sensor bar with the 6 screws up and over through the bracket hinges. Make sure the screws are secured in the hook part of the hinges. Once the sensor is secured in the bracket hinges, tighten the 6 screws to the bracket. QED USER MANUAL... -
Page 11: Step 3: Connection
An extra green grounding wire is provided on the end of the power connector in case your outlet is not grounded. **Make sure to check the connection status before you start the software installation process. QED USER MANUAL... -
Page 12: Step 4: Connection Status
Ethernet port. Do NOT have it connected to the USB Adapter or a hub. *Not sure about this computer graphic... we could buy a stock image or I can make one if we want to replace it LAN Cable Sensor (Ethernet) Page 14 Diagram 1 - EYE-MINI Manual Diagrams QED USER MANUAL... -
Page 13: Software Installation
Environment,” before the installation process. Failure to do will result in installation issues and slow gameplay. Please make sure the connection statuses are clear and everything WARNING is paired. Failure to do will result in installation issues. QED USER MANUAL... - Page 14 Software Installation To begin the software installation for your QED. Please download the Uneekor Launcher found under the resources tab of Uneekor.com or use the link below. Uneekor Launcher For further information on using the Uneekor Launcher, please see below.
- Page 15 QED directly into the Ethernet port on your PC. If connected using the USB 3.0 adaptor, you’ll run into issues using the QED. If these conditions are met, click “Continue.” If you only have one Ethernet port...
- Page 16 You will see your QED here. Click “Select” and then “Continue” on the bottom. If you do not see your QED press the “Refresh” button. If your QED still does not appear return to step 5 and select a different Ethernet port and click “Select.”...
-
Page 17: Calibration Guide
CALIBRATION GUIDE Calibration Chart Parts required Uneekor Launcher Level Tool required Software required QED USER MANUAL... - Page 18 Confirm you have successfully finished the hardware and software installation WARNING before you begin the calibration process. The mounting position of the QED sensor must be perfectly aligned 3 feet 6 inches behind the center of your tee position and WARNING between 9 - 10 feet for the ceiling height.
- Page 19 During the installation process of the QED using the launcher, it will automatically pull up the calibration tool. Please follow the prompts on the launcher to calibrate your QED. If you have any issues calibrating your device using the instructions on the launcher, please see the next page.
-
Page 20: Calibrating Instructions
If all the above conditions are met, click “Calibrate” on the bottom left. QED USER MANUAL... - Page 21 If you’re not able to move the hitting zone to your desired area within the speckled zone, you will need to remount your QED. Step 5 Once you have the hitting zone and calibration complete. Click “Apply” and then “Continue.”...
- Page 22 Once the system is finished calibrating the launch monitor you will see the screen pictured to the right. Please take a test shot to ensure the QED was calibrated correctly and operational. Select the applicable club you will be testing and take a shot.
- Page 23 Calibrating Step 7 Installation and calibration of your QED is now complete. Click “Continue” and navigate to the “Start” tab on the left column to proceed to installing your View and Refine/ Refine+ software. *(Refine/ Refine+ sold separately) QED USER MANUAL...
-
Page 24: Club Sticker Placement
Heel Club Face Leading Edge Club Structure Front View Club Structure Top View Front View Top Line Stickers provided by Uneekor Top View Groove Top Line Groove 20 stickers per page 5 mm Top Edge 30 mm Heel Top Edge... -
Page 25: Club Sticker Application
3. In this diagram, the sticker should be close to the Top Edge lined up with groove number “2.” Make sure the pointed cut is closest to the face of the club QED USER MANUAL... - Page 26 3. In this diagram, the sticker should be close to the Top Edge lined up with the 2/3rd difference between groove “2” and “3.” Make sure the pointed cut is closest to the face of the club. QED USER MANUAL...
- Page 27 3. In this diagram, the sticker should be close to the Top Edge lined up with the 1/3rd difference between groove “2” and “3.” Make sure the pointed cut is closest to the face of the club QED USER MANUAL...
- Page 28 3rd groove of the shortening grooves 3. In this diagram, the sticker should be close to the Top Edge lined up with groove number “3” Make sure the pointed cut is closest to the face of the club QED USER MANUAL...
- Page 29 3. This method is preferred if you cannot achieve the sticker placement on the left. Note: For clubs without this arrow mark, the sticker must be attached at the top of the crown and point on the face QED USER MANUAL...
- Page 30 The sticker can not be too high on the Top Edge. It must be centered. The sticker can not be crumpled or damaged. Note: If you do not avoid the incorrect sticker placements, you may not get the correct club data. QED USER MANUAL...
-
Page 31: Appendix
The speed of the club before impact. Smash Factor The amount of energy transferred from the club head to the golf ball. Face to Path The amount of energy transferred from the club head to the golf ball. QED USER MANUAL... - Page 32 (right or left) the club head is moving at impact and is measured relative to the target line. Face Angle The direction (right or left) the club face is pointed at impact. It is measured relative to the target line. QED USER MANUAL...
- Page 33 Lie angle is the angle created between the center of the shaft and ground when you put your iron down in the address position. Impact Point Vertical, Horizontal Where you strike the ball on the club face. QED USER MANUAL...
-
Page 34: Ball Data
Measurement of horizontal spin on the golf ball that causes your golf ball to slice or draw Back Spin Measurement of reverse rotation of the golf ball in relation to the ball’s trajectory (Backspin generates an upward force that lifts the ball) QED USER MANUAL... - Page 35 (Horizontal launch angle) Side Total Distance the ball travels in the air left or right of the target Launch Angle The initial angle of ascent of the golf ball just after impact (relative to the ground) QED USER MANUAL...
- Page 36 The total amount of time that the golf ball spends in the air prior to landing on the ground Distance to Apex Distance the ball travels in the air before hitting the peak height of the ball’s trajectory QED USER MANUAL...
- Page 37 Cont. Understanding the Data Ball Data Carry Distance the ball travels in the air Distance the ball travels after making contact with the ground Total Distance Total distance the golf ball travels including the carry and roll QED USER MANUAL...
-
Page 38: Specfications
1 Gbps Spin Data Total Spin ±12,000 rpm Ball Speed Putter: 0.1 m/s ~ 30 m/s Measurement Range Ball Speed Driver/Iron: 5 m/s ~ 100 m/s Driver: -5 ~ 50 Degree Sensing Angle Iron: 0.1 ~ 80 Degree QED USER MANUAL... -
Page 39: Links
Links Launcher Overview Guide Uneekor Laucher Resources Support QED USER MANUAL... - Page 40 MASTER YOUR PASSION UNEEKOR, INC. 15770 LAGUNA CANYON RD SUITE 100 IRVINE, CA 92618 TEL: 1-949-328-7790 SALES@UNEEKOR.COM SUPPORT@UNEEKOR.COM...
