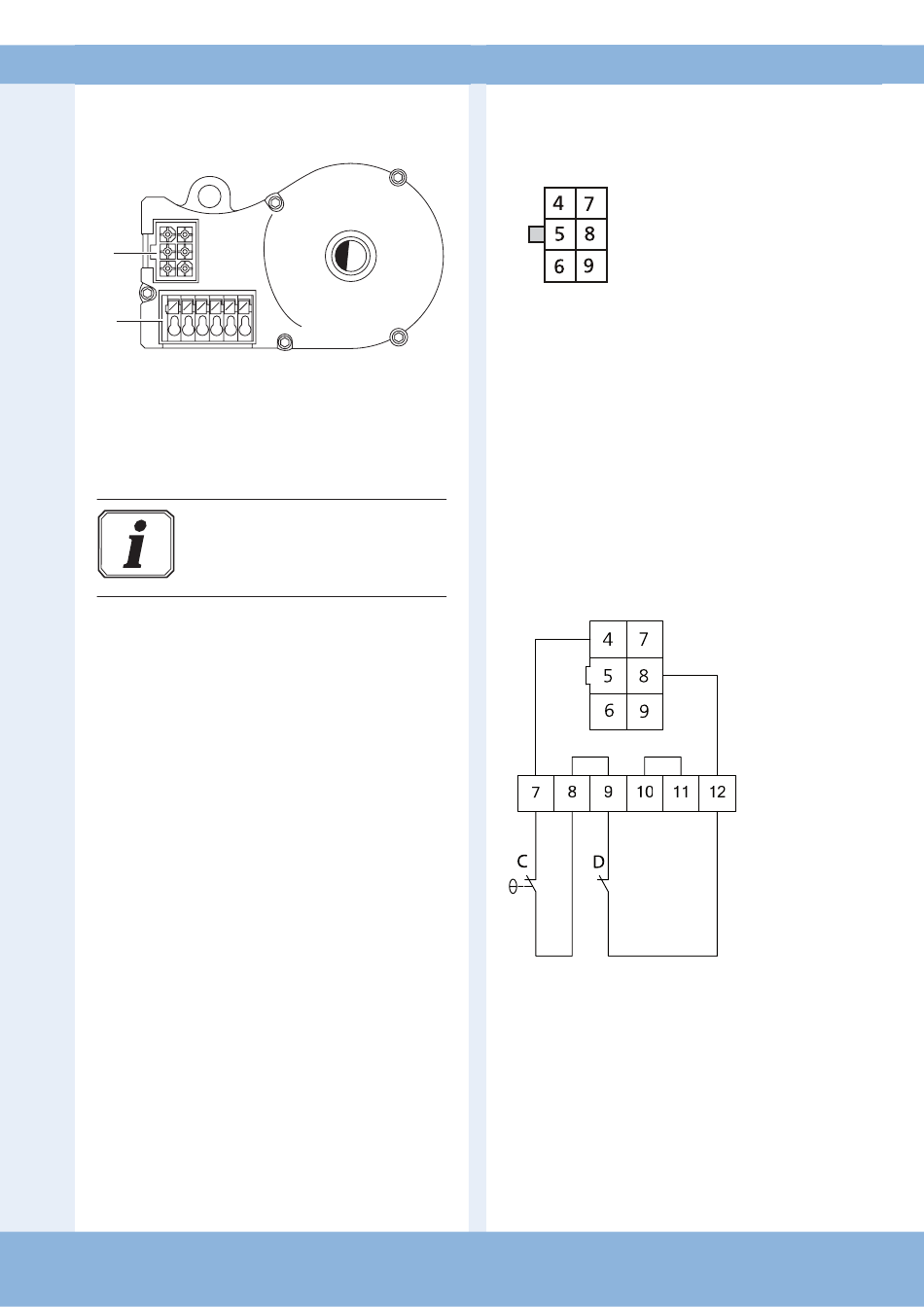

6.6 Digital Limits
Electronic interface
A
B
A:
AVE plug (absolute value encoder plug)
B:
AVE plug terminal (absolute value encoder
plug terminals.
Information:
Please refer to the control unit operating
manual for instructions on setting the limit
end positions.
Wiring allocation,
AVE (absolute value encoder) plug
The numbers on the plug are also the wire
numbers.
4:
Safety circuit input (N/C)
5:
RS 485 B
6:
GND
7:
RS485 A
8:
Safety circuit output (N/C)
9:
7...18V
DC
AVE (absolute value encoder) plug terminal (7-12)
C:
Thermal element in the drive
D:
Manual emergency control
(emergency crank or emergency chain)
Door Operator / CDO / LC- 3158 Rev.B – 9
