Link Controls CDO Series Instructions Manual page 5

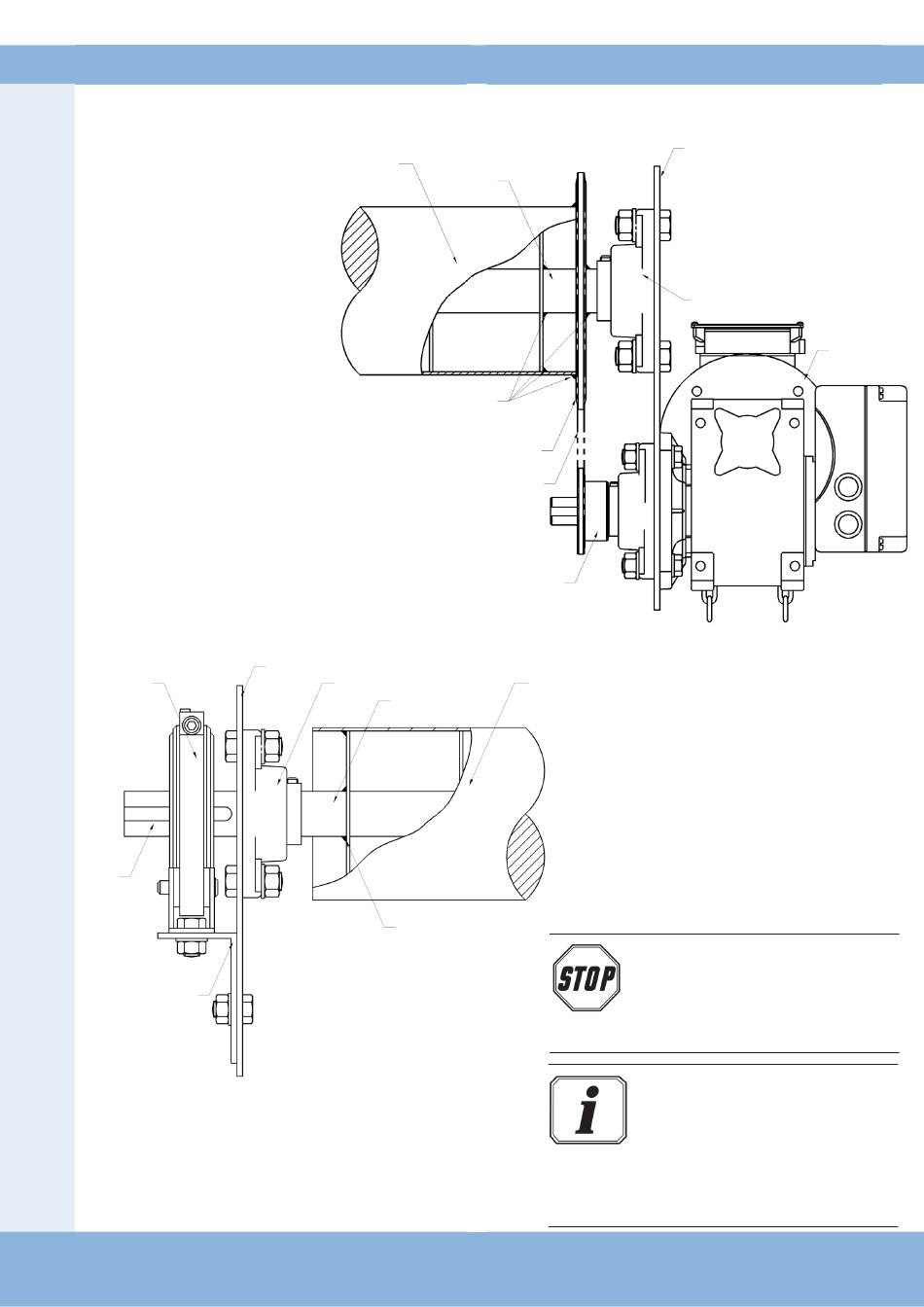

5.3 Mounting using sprocket
and chain - typical example
5.4 Dummy end / safety brake
- typical example
Safety Brake
Key
Brake Mounting
Shutter Barrel
Drive End Shaft
Weld into Position
End Plate
Self-Aligning Flange Bearing
Dummy End Shaft
Weld into Position
Plate Wheel
Drive Chain
Sprocket
Shutter Barrel
Danger!
A safety brake or equivalent device must
be fitted to the dummy end of the shutter
barrel to protect the safety of the machine
against drive chain failure.
Information:
Link Controls Ltd. constantly strives to
improve the quality of its goods and as
such reserves the right to replace/modify
products without prior notification. Any
examples given are intended for guidance
only.
Door Operator / CDO / LC- 3158 Rev.B – 5
End Plate
Self-Aligning Flange Bearing
CDO Operator
