Emergency Operation

Danger!
To avoid injury, the following points must
be observed:
- Emergency operation may only be
carried out from a safe standing position.
- Emergency operation may only be
carried out when the motor is stationary.
- The system must be disconnected from
the power supply during emergency
operation.
- Operators with a spring brake must be
actuated against the closed brake when
opening or closing the door.
- For safety reasons, brakes in doors
without a weight counterbalance must
only be released in the closed door
position for testing purposes.
- Accidental releasing of the brake must
be rendered impossible by preventive
measures at the installation site.
During maintenance works or in the case of an electrical
failure, the door can be moved towards the OPEN or
CLOSED positions with the help of the emergency
manual override equipment.
Information:
If the door is moved beyond the CLOSED
or OPEN end positions, the operator
may no longer be activated electrically
- place the door back into a normal
position before attempting powered
operation.
10 – Door Operator / CDO / LC- 3158 Rev.B

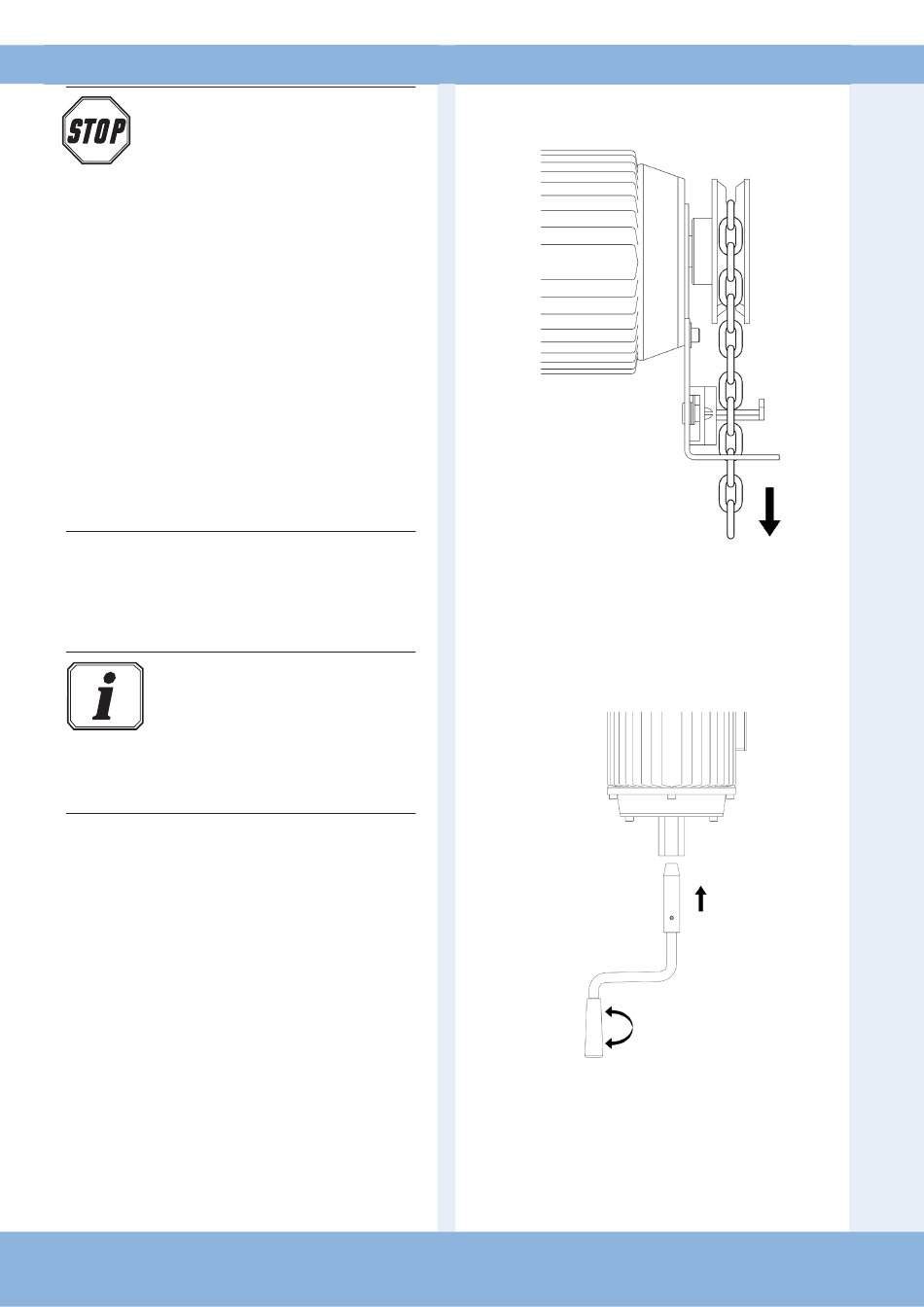

Operation with emergency wheel
guide & interlock
Lift the handchain off the safety switch and place
☞
it on the chainwheel.
The Door can now be operated by hand chain.
☞
Before power is restored, the above procedure
must be reversed
Operation with emergency hand crank
☞ Push the emergency hand crank into the operator
as far as it will go.
Move the door in the OPEN or CLOSE direction
☞
by turning the emergency hand crank.
Remove the emergency hand crank from the
☞
operator after completing emergency manual
operation.
