Franklin Electric E-Tech Series Use And Installation Instructions

Franklin Electric E-Tech Series Use And Installation Instructions

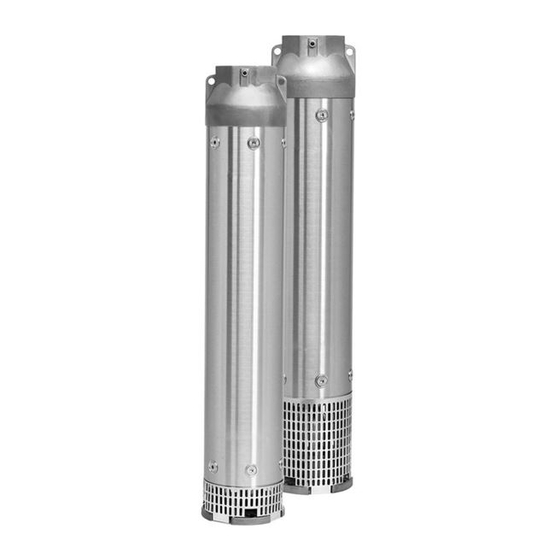

4"- 6" and 8" submersible pumps

Advertisement

Quick Links

POMPE SOMMERSE 4"- 6" E 8"
4"- 6" AND 8" SUBMERSIBLE PUMPS
TAUCHPUMPEN 4"- 6" UND 8"
POMPES SUBMERSIBLES 4"- 6" ET 8"
BOMBAS SUMERGIBLES 4"- 6" Y 8"
POMPY GŁĘBINOWE 4"- 6" I 8"
4"- 6" OG 8" UNDERVANDSPUMPER
UPPOPUMPUT, 4"- 6" JA 8"
ΥΠΟΒΡΥΧΙΕΣ ΑΝΤΛΙΕΣ 4"- 6" ΚΑΙ 8"
DOMPELPOMPEN, 4"- 6" EN 8"
4"- 6" OG 8" NEDSENKBARE PUMPER
BOMBAS SUBMERSÍVEIS DE 4"- 6" E 8"
4 - 6 OCH 8 TUMS DRÄNKBARA PUMPAR
4"- 6" И 8" ПОГРУЖНЫЕ НАСОСЫ
Manuale d'uso e installazione
Use and installation instructions
Gebrauchs- und Aufstellungshandbuch
Manuel pour l'emploi et installation
Manual de empleo e instalación
Instrukcja obsługi i instalacji
Brugs- og installationsanvisninger
Käyttö- ja asennus-ohjeet
Οδηγίες χρήσης και εγκατάστασης
Gebruiks- en installatie-instructies
Instruks for bruk og installasjon
Instruções de utilização e instalação
Instruktioner för användning och installation
Руководство по монтажу и эксплуатации

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-Tech Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Franklin Electric E-Tech Series

  • Page 1 POMPE SOMMERSE 4"- 6" E 8" 4"- 6" AND 8" SUBMERSIBLE PUMPS TAUCHPUMPEN 4"- 6" UND 8" POMPES SUBMERSIBLES 4"- 6" ET 8" BOMBAS SUMERGIBLES 4"- 6" Y 8" POMPY GŁĘBINOWE 4"- 6" I 8" 4"- 6" OG 8" UNDERVANDSPUMPER UPPOPUMPUT, 4"- 6"...
  • Page 2: Delivery And Storage

    ï EN ð • hazard of electrical, mechanical or chemical nature. Safety regulations These operating instructions contain relevant information All safety instructions contained in this manual shall be and precautionary notes. Please read the manual observed, as well as any other national regulation on carefully before assembling, electrical connection and accident prevention, and any internal regulation on the commissioning.
  • Page 3: General Data

    The pump is suitable for both vertical and horizontal installation, however, the pump should never be installed inclined downwards, see Fig. 2. Note: During operation, the suction support must always be completely submerged. In special conditions, it may be necessary to submerge Fig.
  • Page 4: Pump Installation

    force. delivery opening, see Fig. 3. Supply voltage, current and cos φ are quoted on the motor plate that has to be kept within the electrical panel. The motor must be earthed and connected to the electric panel. Verification of Rotation Direction When the pump has been connected to the power supply, establish the current direction of rotation as follows: 1.
  • Page 5: Installation Depth

    When flanged pipes are used, the cable clips must be clean again, since otherwise the pump parts and the non- positioned before and after each flange. return valve may be damaged. If the pump flow rate is higher than that of the well, 5 .4 Lowering of the pump the use of a protection device against dry operation is...
  • Page 6: Troubleshooting

    9 . TROUBLESHOOTING ● Zero flow rate ● Poor flow rate ● Poor pressure ● The pump starts and stops too frequently ● Excessive current absorbed by the electro-pump Possible causes related to the pump Solution (Motor and panel excluded) █...
