4.0 UT2 Throttle Control Panel
4.1 General Color Codes
The UT2 is color coded according to how the keys are used.
The only RED key is Run/Stop. This is so you can't miss it in case of
emergency.
The BLUE keys are used in conjunction with the "SHIFT" key.
4.2 The Throttle Knob
Turn clockwise to increase the speed of your locomotive. Turn counter
clockwise to decrease the speed of your locomotive. There is about
300 degrees of rotation from 0 speed to full throttle.
128 128
F0 F0
F3 F3
ADR
ADR
SHIFT
SHIFT
PROG
PROG
Rotary

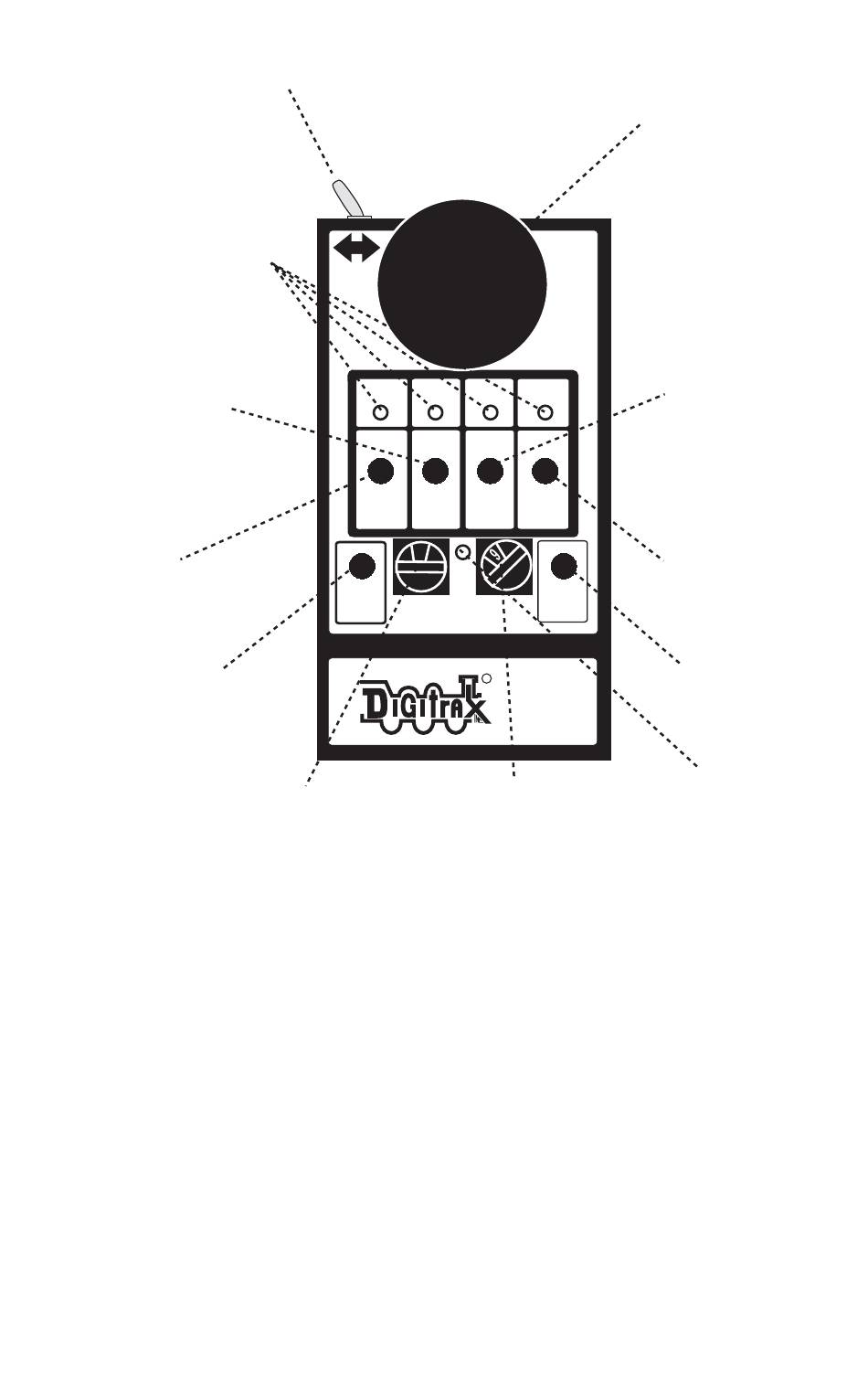

UT2 Throttle Diagram
28 28
14 14
c
F1 F1
F4 F4
F2 F2
F5 F5
ACQ
ACQ
CV#
CV#
CV VL
CV VL
DISP
DISP
ON ON
OFF
OFF
OPSW
OPSW
0
ST ST
RUN
RUN
STOP
STOP
LOCO ADDRESS
LOCO ADDRESS
R
U T 2
Rotary
Address Selector
Section 4.4
9
Throttle Knob
Section 4.2
F2/F5
CV Value
OFF
Section 4.11
Acquire
Dispatch
Option Switch
Section 4.8
Run/Stop
Section 4.7
Status
Indicator
Section 4.5
