TSMK

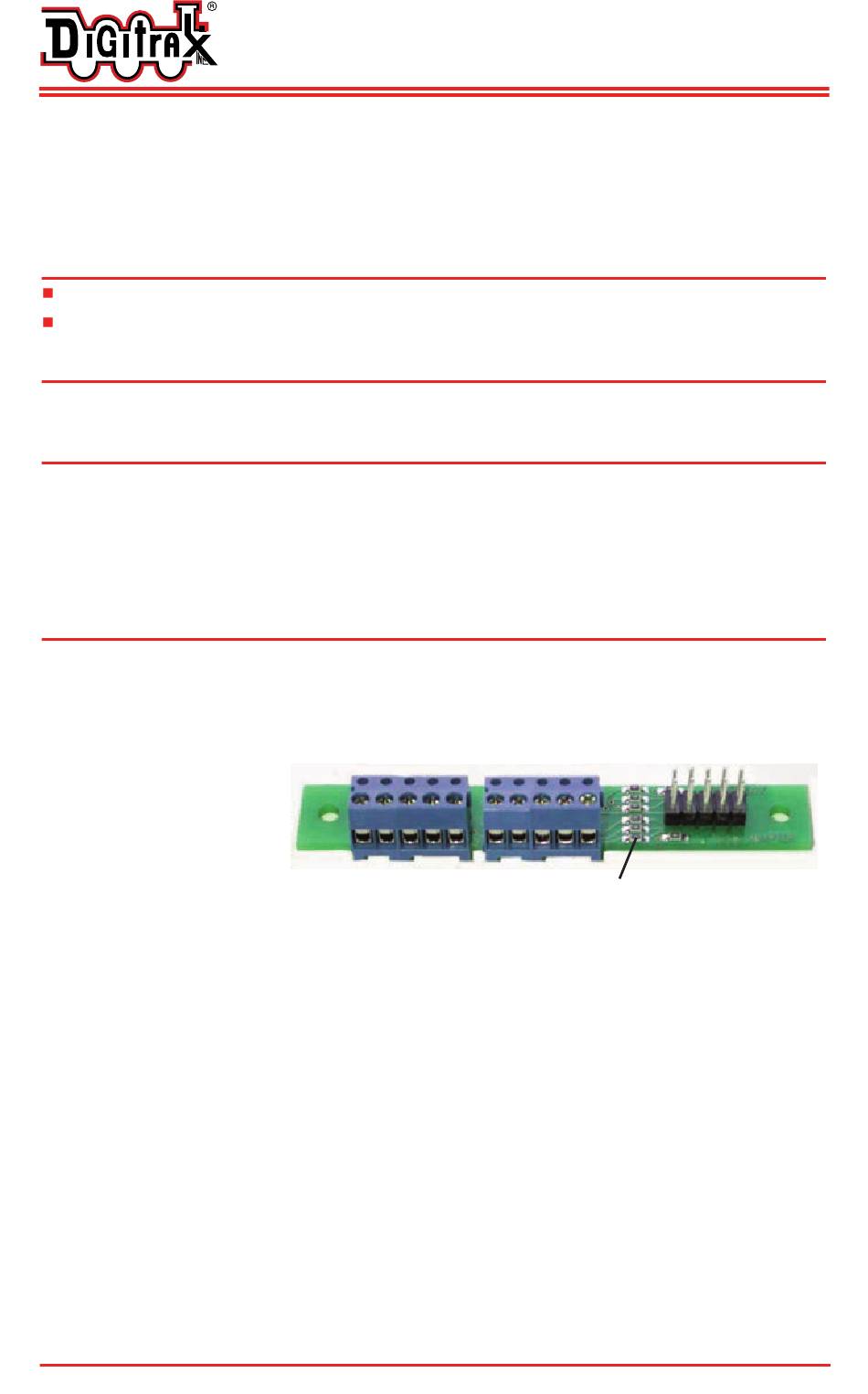

Terminal Strip Mounting Kit-All Scales
Features & Specifications
Easy no solder wiring of any LED type scale or model signal mast.
Current setting resistors are built in to the board.
Parts List
2 Terminal Strip Mounting Kits
Terminal Strip Mounting Kit
The Digitrax Terminal Strip Mounting Kit make it simple to connect any scale
or model signal to the Digitrax signaling system without soldering. Simply
connect the wires from the signal to the TSMK's screw terminals and plug it in
to the SE8C's Signal Driver Cable.
How do you use these terminal strip circuit boards?
You can attach any of a variety of types of model signal masts in any scale you
choose to the Terminal Strip Mounting Kit.

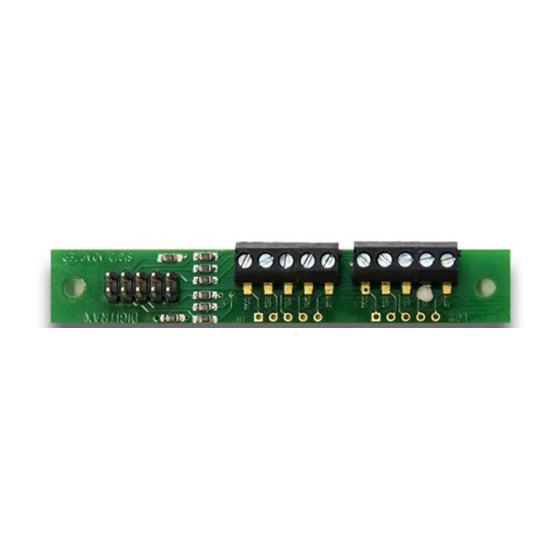

The Terminal Strip Mounting
Kit has 10 screw termi-
nals that connect the
wires from your signal
mast to the SE8C Signal
Driver Cable. Current
setting resistors for your
LEDs are included on the board. The SE8C can
accommodate a variety of signal types including searchlight signals with either
2-lead or 3-lead type bi-color green/red LEDs.
The SE8C signal control cables are run under the layout and the TSMK is
plugged into the signal control cable socket.
Warning: Current setting resistors with a minimum value of 100 ohms must
be used with all LEDs operated with your SE8C. These resistors are incorpo-
rated into the Terminal Strip Mounting Kit board. If you do not use this
board, you must add your own resistors to prevent damage to the board.
©2010 Digitrax, Inc.
Complete Train Control
Run Your Trains, Not Your Track!
10 Screw Terminals
www.digitrax.com
Signal Control
Cable Socket
Current
Setting
Resistors
1
Advertisement
Table of Contents
Related Manuals for Digitrax TSMK
Summary of Contents for Digitrax TSMK
- Page 1 The Digitrax Terminal Strip Mounting Kit make it simple to connect any scale or model signal to the Digitrax signaling system without soldering. Simply connect the wires from the signal to the TSMK’s screw terminals and plug it in to the SE8C’s Signal Driver Cable.
- Page 2 You can use the Terminal Strip Mounting Kit for connecting any signal mast in any scale to the Signal Driver Cable. 1. Attach the wires from the signal heads to the TSMK as shown below. The circuit board is labeled to make it easy to see where to hook up the wires.
- Page 3 Common Hi (Signal Control Cable Pin 10) Current setting resistors (100 ohm min) Pin 1 Signal Control Cable Socket For 2 or 3 lead bi-color LED searchlight signals please refer to the SE8C manual or www.digitrax.com ©2010 Digitrax, Inc. www.digitrax.com...
- Page 4 Warranty & Repair Digitrax gives a one year “No Worries" Warranty against manufacturing defects and accidental customer damage on all Digitrax products. That's it! A simple, straightforward warranty with no tricky language! Visit www.digitrax.com for complete warranty details and instructions for returning items for repair.
