Panasonic ET-PLF20 Operating Instructions Manual

Panasonic ET-PLF20 Operating Instructions Manual

Lens fixed attachment
Hide thumbs
Table of Contents

Advertisement

Quick Links

Lens Fixed Attachment
Thank you for purchasing this Panasonic product.
■
To ensure safe and correct use, please read this manual together with the operating instructions supplied
with the projector carefully.
■
Before using this product, be sure to read "Read this first!" (
■
Please save this manual for future use.
Operating Instructions
Model No.
Commercial Use
ET-PLF20
ENGLISH
FRANÇAIS
Page 3).
日本語
DPQX1427ZA/X1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET-PLF20 and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic ET-PLF20

Summary of Contents for Panasonic ET-PLF20

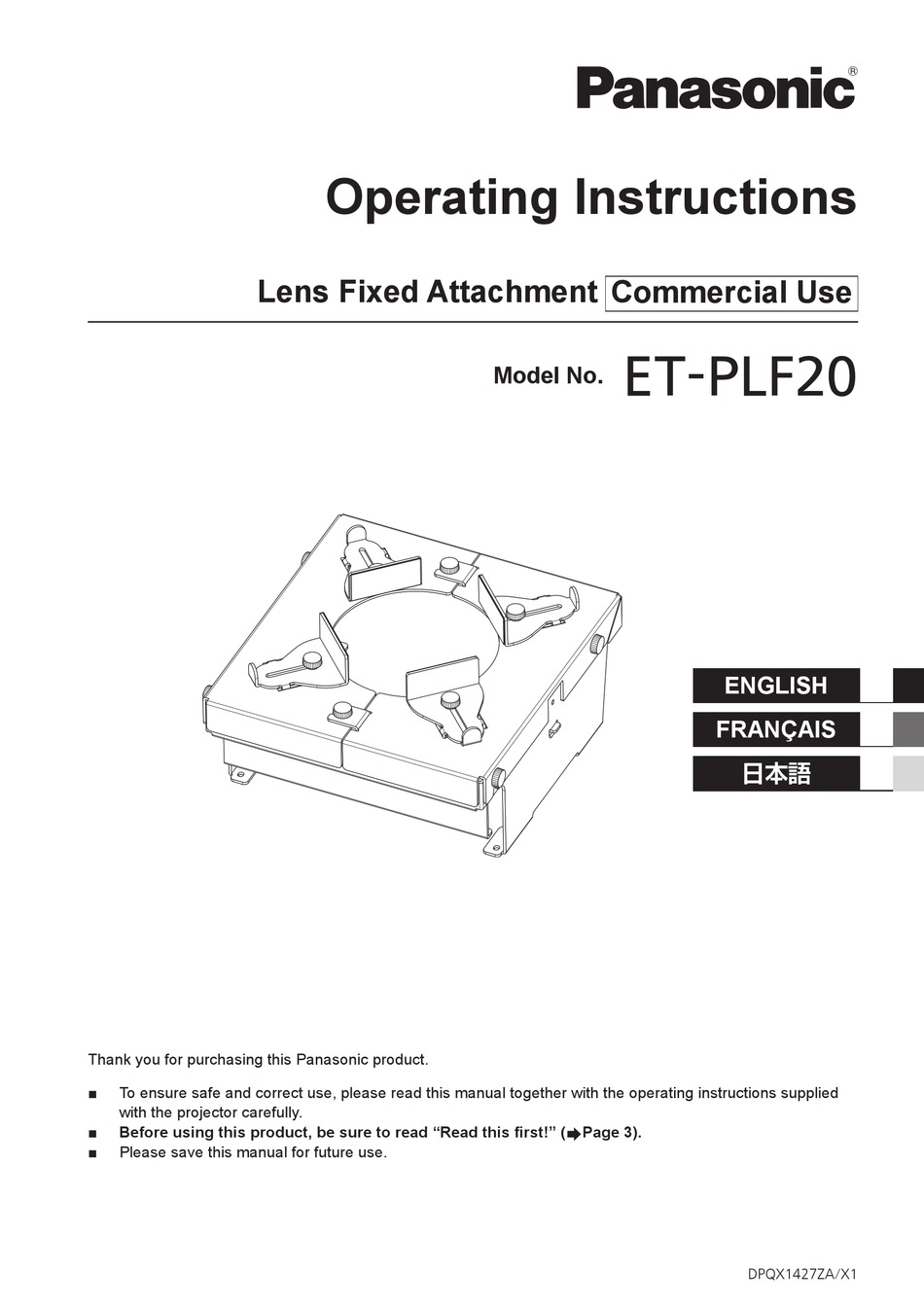

  • Page 1 ET-PLF20 Model No. ENGLISH FRANÇAIS 日本語 Thank you for purchasing this Panasonic product. ■ To ensure safe and correct use, please read this manual together with the operating instructions supplied with the projector carefully. ■ Before using this product, be sure to read “Read this first!” ( Page 3).

  • Page 2: Table Of Contents

    Contents Read this first! ....................3 Before Use......................4 Attaching and Detaching the Lens Fixing Attachment ........5 Preparing the Projection Lens .................... 5 Preparing the Lens Fixing Attachment ................5 Attaching the Lens Fixing Attachment ................7 Detaching the Lens Fixing Attachment ................8 Specifications ....................

  • Page 3: Read This First

    Doing so may cause a loss of performance or safety. Information for users in the European Union Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany ENGLISH - 3...

  • Page 4: Before Use

    Before Use ■ Overview This product suppresses vibration of projection images due to vibration of the lens by fixing the projection lens of the projector. ■ Supported Lens ET-D3LEU100 / ET-D3LEW200 ■ Supported Projectors PT-RQ32K, PT-RZ31K, and PT-RS30K series PT-RQ22K, PT-RZ21K, and PT-RS20K series PT-RQ13K, PT-RZ12K, and PT-RS11K series Note z Models other than the above may also be supported.

  • Page 5: Attaching And Detaching The Lens Fixing Attachment

    Attaching and Detaching the Lens Fixing Attachment Preparing the Projection Lens Attach the lens fixing attachment after installing and adjusting the lens. Attention z The projection lens will be fixed after attaching the lens fixing attachment. Do not perform lens calibration or lens adjustment after the lens fixing attachment is attached.
  • Page 6 Attaching and Detaching the Lens Fixing Attachment (continued) 4) Loosen the thumbscrews (two places) at the Thumbscrews center of the lens fixing attachment bracket. 5) Separate lens fixing attachment bracket (A) Lens fixing attachment bracket (B) and lens fixing attachment bracket (B) as Lens fixing attachment bracket (A) shown in the figure.

  • Page 7: Attaching The Lens Fixing Attachment

    Attaching and Detaching the Lens Fixing Attachment (continued) Attaching the Lens Fixing Attachment The illustrations for this procedure use the Screws PT-RZ21K as an example. 1) Of the screws that surround projection lens at its four corners (two screws at each corner) on the front of the projector, remove the inner screws (four screws total).

  • Page 8: Detaching The Lens Fixing Attachment

    Attaching and Detaching the Lens Fixing Attachment (continued) 5) Attach the lens fixing attachment bracket to the lens fixing attachment mount bracket as shown in the figure. 6) Fix the upper part of the lens fixing attach- Thumbscrews ment bracket in place using the thumbscrews removed in step 1 of “Preparing the Lens Fix- ing Attachment.”...

  • Page 9: Specifications

    Specifications Width: 238 mm (9-3/8") External dimensions Height: 125 mm (4-29/32") Depth: 236 mm (9-9/32") Weight Approx. 0.9 kg (2.0 lb) External Dimensions (Unit: mm) (1-5/16") 225.5 (8-7/8") 33 (1-5/16") 238 (9-3/8") 73 (2-7/8") 26 (1-1/32") 99 (3-29/32") 125 (4-29/32") ENGLISH - 9...

  • Page 10: Dimensions When Attached To Projector

    Dimensions when Attached to Projector ■ PT-RQ32K / PT-RZ31K / PT-RS30K (Unit: mm) (3-5/16") (2-9/32") 238 (9-3/8") ■ PT-RQ22K / PT-RZ21K / PT-RS20K (Unit: mm) 114 (4-1/2") (3-15/32") 238 (9-3/8") ■ PT-RQ13K / PT-RZ12K / PT-RS11K (Unit: mm) 114 (4-1/2") 88 (3-15/32") 238 (9-3/8") 10 - ENGLISH...
  • Page 11 MEMO ENGLISH - 11...
  • Page 12 Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2019 SS0819AM0 -PS Printed in Japan...
