Table of Contents

Quick Links

Operating Instructions

DLP™ Projector

Model No.

Functional Manual

Commercial Use

PT-RZ670

PT-RW630

LBD/LBDJ: Black model, the lens sold separately

LWD: White model, the lens sold separately

LB: Black model, the lens sold separately

LW: White model, the lens sold separately

ENGLISH

TQBJ0712-1

Table of Contents

Summary of Contents for Panasonic PT-RZ670

Page 1: Operating Instructions

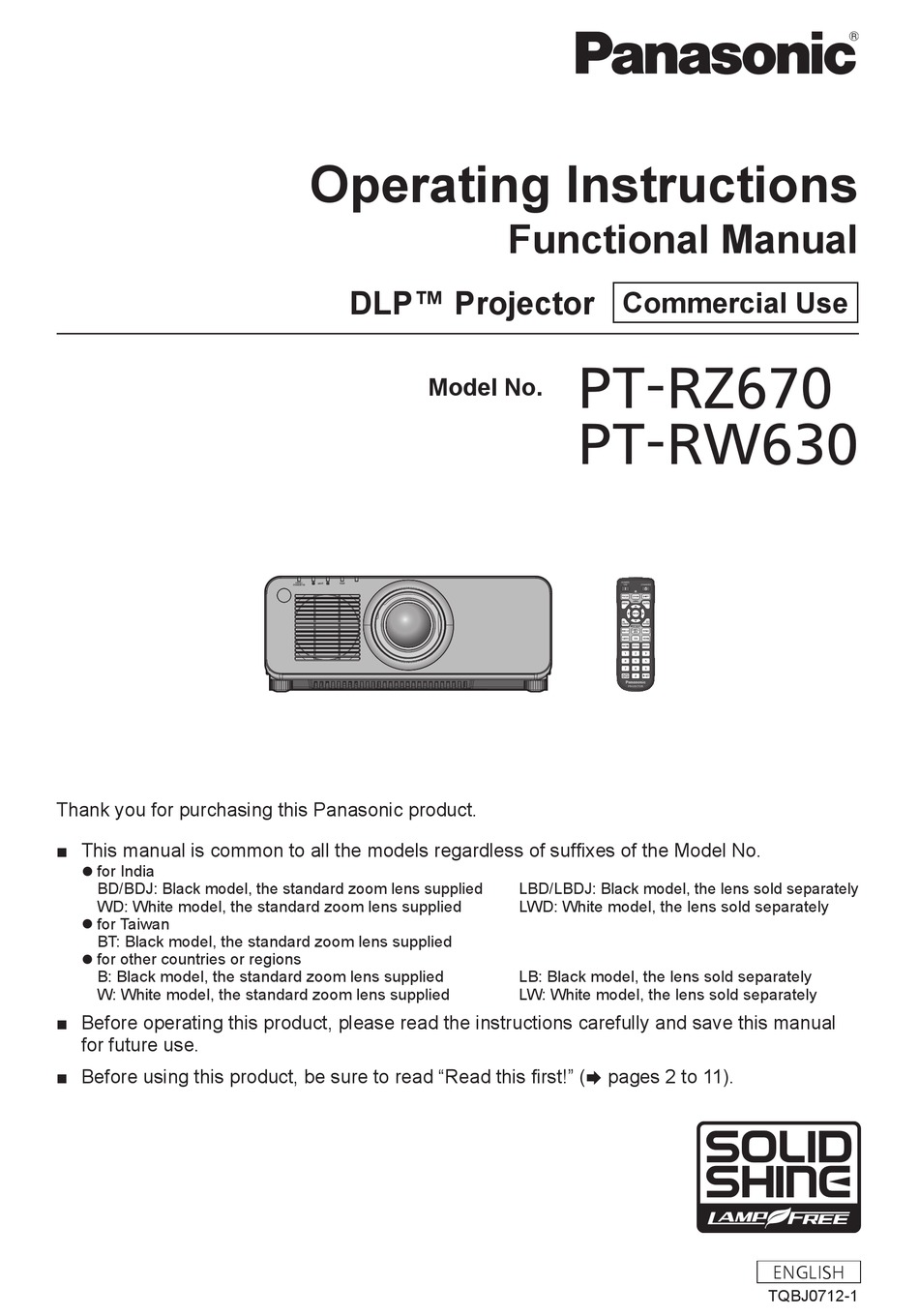

Commercial Use PT-RZ670 Model No. PT-RW630 Thank you for purchasing this Panasonic product. ■ This manual is common to all the models regardless of suffixes of the Model No. z for India BD/BDJ: Black model, the standard zoom lens supplied...
Page 2: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
Page 3 Read this first! Notice on laser This projector is the Class 1 laser product that complies with IEC 60825-1. (Top of product) (Inside of product) CAUTION (North/Middle/South America) Power Supply: This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only. CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V.
Page 4 Model Number: PT-RZ670B / PT-RZ670W / PT-RZ670LB / PT-RZ670LW / PT-RW630B / PT-RW630W / PT-RW630LB / PT-RW630LW Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/contactinfo Projector Contact: http://panasonic.net/avc/projector/ This device complies with Part 15 of the FCC Rules.
Page 5 L or colored RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Center Winsbergring 15, 22525 Hamburg, Germany...
Page 6 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. f If foreign objects or water get inside the projector, cut off the power supply.
Page 7 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
Page 8 Read this first! WARNING: r ACCESSORIES Do not use or handle the batteries improperly, and refer to the following. Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire. f Do not use unspecified batteries. f Do not use chargeable batteries.
Page 9 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
Page 10 Read this first! To remove the battery Remote Control Battery 1. Press the guide and lift the cover. 2. Remove the batteries. (ii) 10 - ENGLISH...
Page 11 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
Page 12 SOLID SHINE is a trademark of Panasonic Corporation. f Windows, Windows Vista, and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. f Mac, Mac OS, OS X, and Safari are trademarks of Apple Inc., registered in the United States and other countries.
Page 13: Features Of The Projector
Easy and flexible setup is achieved by (x page 51) compatibility with DIGITAL LINK and Art- Net, 3G-SDI standard support (only for PT-RZ670), standard support of geometric 5. Switch on the projector. adjustment function (only for PT-RZ670), 360° installation support including...
Page 14: Table Of Contents
Contents Contents Be sure to read “Read this first!” from page 2. Read this first! Projecting Selecting the input signal Adjusting the focus, zoom, and shift Chapter 1 Preparation Moving the lens to the home position Adjustment range by the lens position shift Precautions for use (optical shift) Cautions when transporting...
Page 15 Contents [ADVANCED MENU] menu [PROJECTOR SETUP] menu [DIGITAL CINEMA REALITY] [PROJECTOR ID] [BLANKING] [PROJECTION METHOD] [INPUT RESOLUTION] [COOLING CONDITION] [CLAMP POSITION] [HIGH ALTITUDE MODE] [EDGE BLENDING] [OPERATION SETTING] [FRAME RESPONSE] [LIGHT OUTPUT] [RASTER POSITION] [BRIGHTNESS CONTROL] [STANDBY MODE] [DISPLAY LANGUAGE] menu [SCHEDULE] Changing the display language [STARTUP INPUT SELECT]...
Page 16 Contents [NETWORK] menu [DIGITAL LINK MODE] [DIGITAL LINK SETUP] [DIGITAL LINK STATUS] [NETWORK SETUP] [NETWORK CONTROL] [NETWORK STATUS] [DIGITAL INTERFACE BOX] [Art-Net SETUP] Network connection Connecting to a twisted-pair-cable transmitter Accessing from the web browser Chapter 5 Maintenance Light source/temperature indicators When an indicator lights up Maintenance Before maintaining the projector...
Page 17: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. ENGLISH - 17...
Page 18: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Cautions when transporting f If you purchased the projector with the standard zoom lens, remove the lens cushion before use, and store it for the future use. When transporting the projector, move the lens to the home position and attach the lens cushion. If you purchased the projector with the lens sold separately, remove the lens hole cover before use, and store it for the future use.
Page 19 Chapter 1 Preparation — Precautions for use rFocus adjustment The high clarity projection lens is thermally affected by the light from the light source, making the focus unstable in the period just after switching on the power. It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted.
Page 20: Security
Make your password difficult to guess as much as possible. f Change your password periodically. f Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries.
Page 21: Early Warning Software
2048 units of equipment free of charge. The software can be downloaded for free from the Panasonic website for membership support system “PASS (Projector Asset Support System)” (http://panasonic.net/avc/projector/pass/). First sign up for “PASS” membership (free of charge), and then log in to the site.
Page 22: Accessories
Chapter 1 Preparation — Precautions for use rComputer and external device connections f When connecting a computer or an external device, read this manual carefully regarding the use of power cords and shielded cables as well. f To assure continued performance and FCC compliance, use only high quality DVI-D interface cable with two ferrite cores for connecting with the <DVI-D IN>...
Page 23: Optional Accessories
ET-PKD120H (for high ceilings), ET-PKD120S (for low ceilings), ET-PKD130H (for High Ceiling Mount Bracket Ceilings, 6-axis Adjustment), ET-PKD130B (Projector Mount Bracket) Upgrade Kit ET-UK20 (supported only for PT-RZ670) Auto Screen Adjustment ET-CUK10 (supported only for PT-RZ670) Upgrade Kit Early Warning Software...
Page 24: About Your Projector
Sets the ID number of the remote control in a multiple projector Switches the input signal to project. (x page 63) environment. (x page 27) (SDI input is supported only for PT-RZ670.) 16 Remote control signal transmitter <FUNCTION> button 17 Remote control wired terminal Assigns a frequently used operation as a shortcut button.
Page 25: Projector Body
Chapter 1 Preparation — About your projector f The operation of the <VIDEO> button is disabled in the factory default settings. The operation is enabled when [REMOTE CONTROL] is set to [USER] and [VIDEO BUTTON] of [INPUT SELECT BUTTON] is set to other than [DISABLE], from the [SECURITY] menu → [CONTROL DEVICE SETUP] (x page 132).
Page 26: Control Panel
Automatically adjusts the image display position while projecting <SDI> button the image. [PROGRESS] is displayed while in automatic Switches the input to SDI. adjustment. (x page 64) (Only for PT-RZ670) r Connecting terminals <REMOTE 1 IN> terminal/<REMOTE 1 OUT> terminal <RGB 1 IN> (<R/P /VIDEO>, <G/Y>, <B/P /C>, <SYNC/HD>,...
Page 27: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.
Page 28: Connecting The Remote Control To The Projector With A Cable
Chapter 1 Preparation — Preparing the remote control Connecting the remote control to the projector with a cable When you use the system with multiple projectors, use commercially available M3 stereo mini jack cables and connect the other devices to the <REMOTE 1 IN>/<REMOTE 1 OUT>...
Page 29: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. ENGLISH - 29...
Page 30: Setting Up
Chapter 2 Getting Started — Setting up Setting up Installation mode There are six ways to set up the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 107) depending on the installation mode. Set [COOLING CONDITION] to [AUTO]. Using the projector with [COOLING CONDITION] set incorrectly may shorten the life of the light source.
Page 31: Parts For Ceiling Mount (Optional)
Chapter 2 Getting Started — Setting up Parts for ceiling mount (optional) The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.: ET-PKD120H (for high ceilings), ET-PKD120S (for low ceilings), ET-PKD130H (for High Ceilings, 6-axis Adjustment)) and the Ceiling Mount Bracket (Model No.: ET-PKD130B (Projector Mount Bracket)).
Page 32 Chapter 2 Getting Started — Setting up r For fixed-focus lens (Model No.: ET-DLE030) Projected image Screen Screen (Unit: m) Projected image height Projected image width Projected image size Projection distance (from the screen to the mirror reflection surface Distance between the projector and the screen (from the screen to the tip of the lens) Distance between the projector and the screen (from the screen to the front surface of the projector) Distance between the projector and the screen (from the screen to the rear surface of the projector) Distance between the projector and the screen (from the screen bottom edge to the projector top)
Page 33 Chapter 2 Getting Started — Setting up [GEOMETRY] projection range (Only for PT-RZ670) [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above) Projection distance...
Page 34 Chapter 2 Getting Started — Setting up Standard status Only [KEYSTONE] used [KEYSTONE] and [CURVED] used together Only [CURVED] used Projection Vertical Horizontal Vertical Horizontal Minimum Minimum Minimum Minimum lens Model keystone keystone keystone keystone value of R2/ value of R3/ value of R2/ value of R3/ correction...
Page 35 A ±5 % error in listed projection distances may occur. In addition, when [GEOMETRY] and [KEYSTONE] are used, distance is corrected to become smaller than the specified image size. For PT-RZ670 r When the image aspect ratio is 16:10 (Unit: m)
Page 36 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 16:9 (Unit: m) Optional lens Standard zoom Ultra short focus Short focus zoom Lens type lens Fixed-focus lens zoom lens lens Projection lens Model No. — ET-DLE030 ET-DLE055 ET-DLE085 ET-DLE150...
Page 37 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 4:3 (Unit: m) Optional lens Standard zoom Ultra short focus Short focus zoom Lens type lens Fixed-focus lens zoom lens lens Projection lens Model No. — ET-DLE030 ET-DLE055 ET-DLE085 ET-DLE150...
Page 38 Chapter 2 Getting Started — Setting up For PT-RW630 r When the image aspect ratio is 16:10 (Unit: m) Optional lens Standard zoom Lens type Ultra short focus Short focus zoom lens Fixed-focus lens zoom lens lens Projection lens Model No. —...
Page 39 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 16:9 (Unit: m) Optional lens Standard zoom Ultra short focus Short focus zoom Lens type lens Fixed-focus lens zoom lens lens Projection lens Model No. — ET-DLE030 ET-DLE055 ET-DLE085 ET-DLE150...
Page 40 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 4:3 (Unit: m) Optional lens Standard zoom Ultra short focus Short focus zoom Lens type lens Fixed-focus lens zoom lens lens Projection lens Model No. — ET-DLE030 ET-DLE055 ET-DLE085 ET-DLE150...
Page 41: Standard Zoom Lens
When calculating a projection distance using image size designation (value in inches), multiply the value in inches by 0.0254 and substitute it into SD in the formula for calculating the projection distance. For PT-RZ670 r Standard zoom lens Projection distance (L) formula Projection lens Model No.
Page 42 Chapter 2 Getting Started — Setting up For PT-RW630 r Standard zoom lens Projection distance (L) formula Projection lens Model No. Throw ratio Aspect ratio Min. (LW) Max. (LT) 1.8 - 2.5:1 16:10 = 1.5651 x SD - 0.0746 = 2.1855 x SD - 0.0725 ―...
Page 43: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up Adjusting adjustable feet Install the projector on a flat surface so that the front of the projector is parallel to the screen surface and the projected image is rectangular. If the screen is tilted downward, the projected image can be adjusted to be rectangular by adjusting the front adjustable feet. The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.
Page 44: Removing/Attaching The Projection Lens
Chapter 2 Getting Started — Removing/attaching the projection lens Removing/attaching the projection lens Removing and attaching methods of the projection lens are same for both standard zoom lenses and optional lenses. Move the projection lens to the home position before replacing or removing the projection lens. (x page 61) Attention f Replace the projection lens after turning off the projector.
Page 45 Chapter 2 Getting Started — Removing/attaching the projection lens Turn the projection lens clockwise until it clicks. (Fig. 2) Attach the lens mount cover. (Fig. 3) f Align the lens mount cover and the projector at the dashed line positions in the figure to attach, and turn the lens mount cover clockwise to fix it to the projector.
Page 46: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Page 47: Connecting Example: Av Equipment
Chapter 2 Getting Started — Connecting <DVI-D IN> terminal pin assignments and signal names Outside view Pin No. Signal name Pin No. Signal name T.M.D.S data 2- (13) — T.M.D.S data 2+ (14) +5 V T.M.D.S data 2/4 shield (15) — (16) Hot plug detection (24)
Page 48: Connecting Example: Computers
Chapter 2 Getting Started — Connecting For <SDI IN> terminal (Only for PT-RZ670) Digital VCR for commercial use SD-SDI signal, HD-SDI signal or 3G-SDI signal Note f Use the [PICTURE] menu → [SYSTEM SELECTOR] to switch the input format. f Some external devices to be connected require the [DISPLAY OPTION] menu → [SDI IN] to be set.
Page 49: Connecting Example: Twisted-Pair-Cable Transmitter
For twisted-pair-cable transmitters of other manufacturers of which the operation has been verified with the projector, refer to the Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified.
Page 50: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. 50 - ENGLISH...
Page 51: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily. Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the power cord. For details of power cord handling, refer to “Read this first!”...
Page 52: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Note f While the power indicator <ON (G)/STANDBY (R)> is lit in orange, the fan is running to cool the projector. f For approximately five seconds after the projector is switched off, the indicator does not light up even if the power is switched on. After the power indicator <ON (G)/STANDBY (R)>...
Page 53 Chapter 3 Basic Operations — Switching on/off the projector Press asqw to adjust the focus. LENS FOCUS ADJUST Press the <MENU> button to proceed to the initial setting. Initial setting (display language) Select the language to show on the screen. After completed the initial setting, you can change the display language from the [DISPLAY LANGUAGE] menu. Press as to select the display language.
Page 54 Chapter 3 Basic Operations — Switching on/off the projector [NORMAL] Set this item when high luminance is required. The estimated runtime is approximately 20 000 hours. Although the luminance is lower than that of [NORMAL], set this item to increase the life of the light [ECO] source.
Page 55 Chapter 3 Basic Operations — Switching on/off the projector f When the cursor is moved from [CALIBRATION TIME] using as, [CALIBRATION TIME] is fixed. f Brightness and color are measured at the specified time. Iris is fixed to open during measurement. f When not specifying the time, press as to select [CALIBRATION TIME] (the state where the time is not blinking), and press the <DEFAULT>...
Page 56 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (installation setting) Set [PROJECTION METHOD] and [COOLING CONDITION] depending on the installation mode. Refer to “Installation mode” (x page 30) for details. Set [HIGH ALTITUDE MODE] to [OVER 2700m] when using the projector at high altitudes between 2 700 m (8 858') and 4 200 m (13 780') above sea level.
Page 57 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (screen setting) Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING]. Press as to select an item.
Page 58: Making Adjustments And Selections
Press the input selection (<RGB1> and <RGB2>, or <RGB1/2>, <DIGITAL LINK>, <DVI-D>, <VIDEO>, <SDI>, <HDMI>) button to select the input signal. (SDI input is supported only for PT-RZ670.) Adjust the front, back and sideway tilt of the projector with the adjustable feet. (x page 43) Press the <SHIFT>...
Page 59: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Note f When the projector is switched on for the first time after purchase, as well as when [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu → [INITIALIZE], the focus adjustment screen is displayed after projection starts, then the [INITIAL SETTING] screen is displayed.
Page 60: Projecting
Press the input selection (<RGB1> and <RGB2>, or <RGB1/2>, <DIGITAL LINK>, <DVI-D>, <VIDEO>, <SDI>, <HDMI>) button on the remote control or the control panel. (SDI input is supported only for PT-RZ670.) f The image of the signal being input in the selected terminal is projected.
Page 61: Moving The Lens To The Home Position
Standard zoom lens, ET-DLE150, ET-DLE250, ET-DLE085 ET-DLE350, ET-DLE450 Standard projection position Standard projection position 0.3 H 0.28 H 0.1 H PT-RZ670 0.1 H 0.1 H Projected image width H Projected image width H Standard projection position Standard projection position 0.3 H 0.28 H...
Page 62: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image temporarily.
Page 63: Switching The Input
*1 The operation is disabled in the factory default settings. The operation is enabled when [REMOTE CONTROL] is set to [USER] and [VIDEO BUTTON] of [INPUT SELECT BUTTON] is set to other than [DISABLE], from the [SECURITY] menu → [CONTROL DEVICE SETUP]. *2 SDI input is supported only for PT-RZ670. Note f When the optional Digital Interface Box (Model No.: ET-YFB100G) is connected to the <DIGITAL LINK/LAN>...
Page 64: Using The Automatic Setup Function
Chapter 3 Basic Operations — Operating with the remote control Using the Automatic setup function The automatic setup function can be used to automatically adjust the resolution, clock phase, and image position when analog RGB signals consisting of bitmap images such as computer signals are being input, or to automatically adjust the image position when DVI-D/HDMI signals are input.
Page 65: Setting The Remote Control Id Numbers
Chapter 3 Basic Operations — Operating with the remote control Setting the remote control ID numbers When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector individually using single remote control, if a unique ID number is assigned to each projector. After setting the ID number of the projector, set same ID number on the remote control.
Page 66: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. 66 - ENGLISH...
Page 67: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.
Page 68: Resetting Adjustment Values To The Factory Default
Chapter 4 Settings — Menu navigation Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...
Page 69: Sub-Menu
― [ASPECT] [DEFAULT] [ZOOM] ― [CLOCK PHASE] [GEOMETRY] [OFF] [KEYSTONE] ― *1 Depends on the signal input. *2 Only for PT-RZ670 *3 Only for PT-RW630 [ADVANCED MENU] Sub-menu item Factory default Page [DIGITAL CINEMA REALITY] [AUTO] [BLANKING] ― [INPUT RESOLUTION] ―...
Page 70: Display Language
[STARTUP LOGO] [DEFAULT LOGO] [UNIFORMITY] ― [SHUTTER SETTING] ― [FREEZE] ― [WAVEFORM MONITOR] [OFF] [CUT OFF] ― *1 Only for PT-RZ670 [PROJECTOR SETUP] Sub-menu item Factory default Page [PROJECTOR ID] [ALL] [PROJECTION METHOD] [FRONT/FLOOR] [COOLING CONDITION] [AUTO] [HIGH ALTITUDE MODE]...
Page 71 Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [REMOTE2 MODE] [DEFAULT] [FUNCTION BUTTON] ― [DATE AND TIME] ― [LENS CALIBRATION] ― [SAVE ALL USER DATA] ― [LOAD ALL USER DATA] ― [INITIALIZE] ― [SERVICE PASSWORD] ― [P IN P] Details (x page 125) [TEST PATTERN] Details (x page 127)
Page 72: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. f After selecting the item, press asqw to adjust.
Page 73: [Color]
Chapter 4 Settings — [PICTURE] menu Press qw or the <ENTER> button. f The [BRIGHTNESS] individual adjustment screen is displayed. Press qw to adjust the level. Operation Adjustment Range of adjustment Increases the brightness of the dark (black) parts of the screen. Press w.
Page 74 Chapter 4 Settings — [PICTURE] menu Adjusting desired white balance Press as to select [COLOR TEMPERATURE]. Press qw or the <ENTER> button. f The [COLOR TEMPERATURE] individual adjustment screen is displayed. Press qw to select [USER1] or [USER2]. Press the <ENTER> button. f The [COLOR TEMPERATURE] screen is displayed.
Page 75: [White Gain]
Chapter 4 Settings — [PICTURE] menu Note f Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment does not look suitable, you can press the <DEFAULT> button on the remote control to return the setting for the selected item only to the factory default setting.
Page 76: [System Daylight View]
Chapter 4 Settings — [PICTURE] menu [SYSTEM DAYLIGHT VIEW] You can correct the image to the optimal vividness even if it is projected under a bright light. Press as to select [SYSTEM DAYLIGHT VIEW]. Press qw or the <ENTER> button. f The [SYSTEM DAYLIGHT VIEW] individual adjustment screen is displayed. Press qw to switch the item.
Page 77: [Dynamic Contrast]
Press the <ENTER> button. Press as to select a system format. f If signals are input via the <SDI IN> terminal connection, press asqw to select the system format. (Only for PT-RZ670) f Available system formats vary depending on the input signal.
Page 78: Srgb-Compliant Video
<SDI IN> terminal [1080/24p YP ], [1080/24sF YP ], [1080/25p YP ], [1080/30p YP ], [1080/50i YP (Only for PT-RZ670) [1080/60i YP ], [1080/50p YP ], [1080/60p YP ], [1080/24p RGB], [1080/24sF RGB], [1080/25p RGB], [1080/30p RGB], [1080/50i RGB], or [1080/60i RGB].
Page 79: [Position] Menu
Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. f After selecting the item, press asqw to adjust.
Page 80: [Zoom]
Chapter 4 Settings — [POSITION] menu Press qw or the <ENTER> button. f The [ASPECT] individual adjustment screen is displayed. Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT] Displays images without changing the aspect ratio of the input signals. The projector identifies the video ID (VID) embedded in the video signals and displays the image by [AUTO] automatically switching the screen sizes between 4:3 and 16:9.
Page 81: [Clock Phase]
If you press w while the adjustment value is [+31], the value will become [0]. If you press q while the adjustment value is [0], the value will become [+31]. [GEOMETRY] (Only for PT-RZ670) You can correct various types of distortion in a projected image. Unique image processing technology enables projection of a square image on a special screen shape.
Page 82 Chapter 4 Settings — [POSITION] menu [KEYSTONE] Adjusts any trapezoidal distortion in the projected image. [CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image. [CURVED] Adjusts any curved distortion in the projected image. [PC-1] [PC-2] Uses the computer to perform geometric adjustment. [PC-3] *1 Advanced skills are necessary to use a computer to control geometric adjustment.
Page 83 Chapter 4 Settings — [POSITION] menu [CURVED] [VERTICAL BALANCE] [HORIZONTAL BALANCE] [MAINTAIN ASPECT RATIO] Select [ON] to correct while keeping the aspect ratio. Setting [CORNER CORRECTION] Press as to select [GEOMETRY]. Press qw to select [CORNER CORRECTION]. Press the <ENTER> button. f The [GEOMETRY:CORNER CORRECTION] screen is displayed.
Page 84: [Keystone]
Chapter 4 Settings — [POSITION] menu [KEYSTONE] (Only for PT-RW630) You can correct the keystone distortion that occurs when the projector is installed tilted or when the screen is tilted. Press as to select [KEYSTONE]. Press the <ENTER> button. f The [KEYSTONE] screen is displayed. Press as to select the item to adjust.
Page 85: [Advanced Menu] Menu
When [CUSTOM MASKING] is set to an item other than [OFF] ([PC-1], [PC-2], or [PC-3]), the blanking width can be adjusted to any shape using the computer. Up to three blanking settings adjusted using the computer can be saved. (Only for PT-RZ670) To use the [CUSTOM MASKING] function, the optional Upgrade Kit (Model No.: ET-UK20) is required.
Page 86: [Input Resolution]
Press q. moves upward. Top of the screen [UPPER] The blanking zone Press w. moves downward. PT-RZ670: Top to bottom 0 - 599 PT-RW630: Top to bottom The blanking zone Press w. 0 - 399 moves upward. Bottom of the...
Page 87: [Edge Blending]
Chapter 4 Settings — [ADVANCED MENU] menu [EDGE BLENDING] The edge blending function allows multiple projector images to be seamlessly overlapped by using the inclination of the brightness at the overlapped area. Press as to select [EDGE BLENDING]. Press qw to switch the item. f The items will switch each time you press the button.
Page 88: [Frame Response]
15) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH]. 16) Press qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment. f When PT-RZ670 is used, proceed to Step 17). f When PT-RW630 is used, proceed to Step 19).
Page 89: [Raster Position]
Chapter 4 Settings — [ADVANCED MENU] menu [RASTER POSITION] This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area. Press as to select [RASTER POSITION]. Press the <ENTER>...
Page 90: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub- menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. f Press as to select a language, and press the <ENTER>...
Page 91: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. f After selecting the item, press asqw to set.
Page 92: [Color Correction]
Chapter 4 Settings — [DISPLAY OPTION] menu Adjusting the color matching using a colorimeter Use a colorimeter that can measure chromaticity coordinates and luminance to change the colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE] to desired colors. Press as to select [COLOR MATCHING]. Press qw to select [MEASURED].
Page 93: [Auto Signal]
Chapter 4 Settings — [DISPLAY OPTION] menu Model No. [SCREEN FORMAT] Range when [SCREEN POSITION] is selected [16:10] Cannot be adjusted. PT-RZ670 [4:3] Adjusts the horizontal position between -160 and 160. [16:9] Adjusts the vertical position between -60 and 60. [16:10] Cannot be adjusted.
Page 94: [Backup Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. [ON] Adjust the screen position and size when automatic setup is executed. [OFF] Does not perform automatic adjustment. Adjusting signal level automatically Press as to select [AUTO SETUP]. Press the <ENTER>...
Page 95 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [RGB IN] screen is displayed. Press as to select [RGB1 INPUT SETTING]. Press qw to switch the item. f The items will switch each time you press the button. Select this item when an RGB signal or YC signal is being input to the <RGB 1 IN>...
Page 96: [Dvi-D In]
Chapter 4 Settings — [DISPLAY OPTION] menu f [30Hz], [25Hz], or [24Hz] can be selected only when [1920x1080p] is selected for [RESOLUTION]. 10) Press the <ENTER> button. f The confirmation screen is displayed. 11) Press qw to select [OK], and press the <ENTER> button. Note f The setting details are displayed in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] of [EDID STATUS].
Page 97: [Hdmi In]
Chapter 4 Settings — [DISPLAY OPTION] menu [USER] Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID. f When [DEFAULT] or [SCREEN FIT] is selected, proceed to Step 10). Press the <ENTER> button. f The [RESOLUTION] screen is displayed. Press asqw to select [RESOLUTION]. f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
Page 98: [Digital Link In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch [EDID MODE]. f The items will switch each time you press the button. [DEFAULT] Standard setting. [SCREEN FIT] Changes data of EDID according to the setting of [SCREEN FORMAT]. [USER] Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID.
Page 99: [Sdi In]
Output with resolution and vertical scanning frequency that have been set may not be performed depending on your computer or video device. [SDI IN] (Only for PT-RZ670) Set this item according to the signal to be input to the <SDI IN> terminal. Setting [SIGNAL LEVEL] Select the amplitude of the signal to input.
Page 100: [On-Screen Display]
Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [BIT DEPTH]. Press qw to switch the item. [AUTO] Automatically select [12-bit] or [10-bit]. [12-bit] Fixes to [12-bit]. [10-bit] Fixes to [10-bit]. Setting [3G-SDI MAPPING] Press as to select [SDI IN]. Press the <ENTER>...
Page 101 Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [OFF] Does not rotate the screen. [CLOCKWISE] Rotates the screen by 90° clockwise. [COUNTERCLOCKWISE] Rotates the screen by 90° counterclockwise. Setting [OSD DESIGN] Set the color of the menu screen (OSD).
Page 102: [Closed Caption Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Setting [WARNING MESSAGE] Set the display/hide of the warning message. Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button. f The [ON-SCREEN DISPLAY] screen is displayed. Press as to select [WARNING MESSAGE]. Press qw to switch the item. f The items will switch each time you press the button.
Page 103: [Image Rotation]
Displays the entire projection area in blue. [BLACK] Displays the entire projection area in black. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. Note f To create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
Page 104: [Shutter Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to adjust the level. Item Operation Adjustment Range of adjustment The lower-side color becomes pale, or the upper-side color Press w. becomes dark. [VERTICAL] The upper-side color becomes pale, or the lower-side color Press q.
Page 105: [Freeze]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [SHUTTER SETTING] screen is displayed. Press as to select [STARTUP]. Press qw to switch the item. [OPEN] Starts projection with the shutter function disabled (shutter: open) when the power is turned on. [CLOSE] Starts projection with the shutter function enabled (shutter: closed) when the power is turned on.
Page 106: [Cut Off]
Note f For DVI-D signal, HDMI signal, SDI signal, and DIGITAL LINK signal, confirm that the [SIGNAL LEVEL] setting is correct before adjusting the black level. (SDI signal is supported only for PT-RZ670). [CUT OFF] Each red, green, and blue color component can be removed.
Page 107: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. f After selecting the item, press asqw to set.
Page 108: [Cooling Condition]
Chapter 4 Settings — [PROJECTOR SETUP] menu [COOLING CONDITION] Change the fan control depending on the direction of projection. Set [COOLING CONDITION] according to the projection direction, but set it to [AUTO] normally. Using the projector with [COOLING CONDITION] set incorrectly may shorten the life of the light source. [VERTICAL UP SETTING] 15°...
Page 109 Chapter 4 Settings — [PROJECTOR SETUP] menu Setting [OPERATING MODE] Press as to select [OPERATION SETTING]. Press the <ENTER> button. f The [OPERATION SETTING] screen is displayed. Press as to select [OPERATING MODE]. Press qw to switch the item. f The items will switch each time you press the button. [NORMAL] Set this item when high luminance is required.
Page 110 Chapter 4 Settings — [PROJECTOR SETUP] menu f The [MAX LIGHT OUTPUT LEVEL] settings are not reset to the factory defaults even when [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu → [INITIALIZE] (x page 124). Setting [LIGHT OUTPUT] Adjust the brightness of light source.
Page 111 Chapter 4 Settings — [PROJECTOR SETUP] menu When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC] [MAX LIGHT [MAX LIGHT Luminance (lm) [LIGHT OUTPUT] [LIGHT OUTPUT] OUTPUT LEVEL] Runtime (hour) OUTPUT LEVEL] Runtime (hour) 3 000 100.0 46.0...
Page 112: [Light Output]
Chapter 4 Settings — [PROJECTOR SETUP] menu 11) Press as to select [CALIBRATION MESSAGE]. 12) Press qw to switch the item. f The items will switch each time you press the button. [ON] Displays the message during calibration. [OFF] Does not display the message during calibration. 13) Press as to select [APPLY].
Page 113: [Brightness Control]
Chapter 4 Settings — [PROJECTOR SETUP] menu [BRIGHTNESS CONTROL] The projector is equipped with a brightness sensor to measure brightness and color of the light source, and corrects brightness and color of the projected image according to the changes in brightness and color of the light source. By using this function, in such a condition that multiple screens are configured using multiple projectors, you can reduce changes in overall brightness and white balance of the multiple screens due to light source degradation and suppress variation in brightness and white balance to preserve uniformity.
Page 114 Chapter 4 Settings — [PROJECTOR SETUP] menu 13) Press as to select [CALIBRATION MESSAGE]. 14) Press qw to switch the item. f The items will switch each time you press the button. [ON] Messages are displayed during calibration. [OFF] Messages are not displayed during calibration. 15) Press as to select [APPLY].
Page 115 Chapter 4 Settings — [PROJECTOR SETUP] menu [BRIGHTNESS CONTROL STATUS] screen display example When [CONSTANT MODE] of [BRIGHTNESS CONTROL When [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] is set to [OFF] SETUP] is set to [AUTO] and [LINK] is set to [OFF] The screen shows the status that the brightness control is disabled.
Page 116: [Standby Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu Error message Measures to take [Please check the USER NAME f Assign the same [User name] and [Password] strings that have web control administrator rights to and PASSWORD in the COMMAND all projectors to be linked. CONTROL setting.] [Cannot apply BRIGHTNESS CONTROL.
Page 117: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press qw to switch the item. f The items will switch each time you press the button. [NORMAL] Select this item to use the network function during standby. [ECO] Select this item to reduce power consumption during standby. Note f When [ECO] is set, the network function, the <SERIAL OUT>...
Page 118: [Startup Input Select]
*1 Only for PT-RZ670 *2 When the Panasonic twisted-pair-cable transmitter (such as the optional Digital Interface Box (Model No.: ET-YFB100G)) is connected to the projector, its input name is reflected from [INPUT1] to [INPUT10] automatically. If an item where the input name is not reflected is selected, it is disabled.
Page 119 *1 Only for PT-RZ670 *2 When the Panasonic twisted-pair-cable transmitter (such as the optional Digital Interface Box (Model No.: ET-YFB100G)) is connected to the projector, its input name is reflected from [INPUT1] to [INPUT10] automatically. If an item where the input name is not reflected is selected, it is disabled.
Page 120: [Status]
Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the communication condition of the <SERIAL OUT> terminal Press as to select [RS-232C]. Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [(OUT) BAUDRATE]. Press qw to switch the item. [9600] [19200] Select the proper speed.
Page 121: [No Signal Shut-Off]
*1 The temperature status is indicated with text color (green/yellow/red) and bar scale. Use the projector within the range that the indication is green. *2 Only for PT-RZ670 Note f E-mail including the content of status can be sent to the E-mail addresses (up to two addresses) set in “[E-mail set up] page” (x page 149) by pressing the <ENTER>...
Page 122: [Remote2 Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press qw to switch the item. f The items will switch each time you press the button. [DISABLE] Disables the No signal shut-off function. [10MIN.] - [90MIN.] Sets the time in increments of 10 minutes. [REMOTE2 MODE] You can set the <REMOTE 2 IN>...
Page 123: [Lens Calibration]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [DATE AND TIME] screen is displayed. Press as to select [ADJUST CLOCK]. Press the <ENTER> button. f The [ADJUST CLOCK] screen is displayed. Press as to select an item, and press qw to set the local date and time. Press as to select [APPLY], and press the <ENTER>...
Page 124: [Load All User Data]
Chapter 4 Settings — [PROJECTOR SETUP] menu When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button. f [PROGRESS] is displayed while saving data. Note f Data set from the computer application is not included in [ALL USER DATA]. [LOAD ALL USER DATA] Load the various setting values saved as a backup in the built-in memory of the projector.
Page 125: [P In P] Menu
Chapter 4 Settings — [P IN P] menu [P IN P] menu On the menu screen, select [P IN P] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. f After selecting the item, press asqw to set.
Page 126 Chapter 4 Settings — [P IN P] menu 14) Press qw to switch the item. [MAIN WINDOW] Set frame lock to the input signal set in the main window. [SUB WINDOW] Set frame lock to the input signal set in the sub window. 15) Press as to select [TYPE].
Page 127: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. f Press qw to switch. [TEST PATTERN] Display the test pattern built-in to the projector.
Page 128: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. r Registered signal details A1 (1-2) Memory number: Sub memory number...
Page 129: Protecting The Registered Signal
Chapter 4 Settings — [SIGNAL LIST] menu Press the <DEFAULT> button on the remote control. f The [REGISTERED SIGNAL DELETE] screen is displayed. f To cancel the deletion, press the <MENU> button to return to the [REGISTERED SIGNAL LIST] screen. Press the <ENTER> button. f The selected signal will be deleted.
Page 130: Sub Memory
Chapter 4 Settings — [SIGNAL LIST] menu Sub memory The projector has a sub memory function that can register the multiple image adjustment data, even if it is recognized as the same signal by the frequency or format of the synchronization signal source. Use this function when you need to adjust the picture quality such as switching of the aspect ratio or white balance by the same synchronization signal source.
Page 131: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...
Page 132: [Display Setting]
Chapter 4 Settings — [SECURITY] menu Note f The entered password is displayed with*marks on the screen. f When numerical values are used for the security password, the security password is required to be initialized if the remote control is lost. Consult your dealer for the method of initialization.
Page 133 [ON SCREEN BUTTON] — <ON SCREEN> button Buttons not listed above [OTHER BUTTON] asqw, <ENTER> button *1 SDI input is supported only for PT-RZ670. Press qw to switch the item. [ENABLE] Enables button operations. [DISABLE] Disables button operations. f The following items are available only when [RGB1/2 BUTTON] of [INPUT SELECT BUTTON] is selected.
Page 134: Control Device Password Change
Chapter 4 Settings — [SECURITY] menu [CONTROL DEVICE PASSWORD CHANGE] The control device password can be changed. Press as to select [CONTROL DEVICE PASSWORD CHANGE]. Press the <ENTER> button. f The [CONTROL DEVICE PASSWORD CHANGE] screen is displayed. Press asqw to select the text, and press the <ENTER> button to enter the text. Press asqw to select [OK], and press the <ENTER>...
Page 135: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. f After selecting the item, press asqw to set.
Page 136: [Digital Link Status]
Chapter 4 Settings — [NETWORK] menu When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button. Note f The projector does not support 10BaseT Full/Half. When the projector is connected to a twisted-pair-cable transmitter Press as to select [DIGITAL LINK SETUP]. Press the <ENTER>...
Page 137: [Network Control]
Chapter 4 Settings — [NETWORK] menu [IP ADDRESS] Enter the IP address when you do not use a DHCP server. [SUBNET MASK] Enter the subnet mask when you do not use a DHCP server. [DEFAULT GATEWAY] Enter the default gateway address when you do not use a DHCP server. [STORE] Save the current network settings.
Page 138: [Digital Interface Box]
Chapter 4 Settings — [NETWORK] menu [DIGITAL INTERFACE BOX] When the optional Digital Interface Box (Model No.: ET-YFB100G) is connected to the <DIGITAL LINK/LAN> terminal, the main menu of ET-YFB100G is displayed. Refer to the Operating Instructions of ET-YFB100G for details. Note f When [EXTRON XTP] is set to [ON], [DIGITAL INTERFACE BOX] cannot be selected.
Page 139: Connecting To A Twisted-Pair-Cable Transmitter
Chapter 4 Settings — [NETWORK] menu r Example of a normal network connection Computer Projector LAN cable (straight) LAN cable (straight) f A web browser is required to use network function. Confirm that the web browser can be used beforehand. Compatible browser: Internet Explorer 7.0/8.0/9.0/10.0/11.0 (Windows OS), Safari 4.0/5.0/6.0/7.0 (Mac OS) f Communication with an E-mail server is required to use the E-mail function.
Page 140: Accessing From The Web Browser
Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 141 Chapter 4 Settings — [NETWORK] menu Note f If you use a web browser to control the projector, set [WEB CONTROL] to [ON] in [NETWORK CONTROL] (x page 137). f Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers.
Page 142 Chapter 4 Settings — [NETWORK] menu [Projector status] page Click [Status] → [Projector status]. Display the status of the projector for the following items. [PROJECTOR TYPE] 10 [OSD] Displays the type of the projector. Displays the status of the on-screen display. [MAIN VERSION] 11 [LIGHT OUTPUT] Displays the firmware version of the projector.
Page 143: Error Information Page
Chapter 4 Settings — [NETWORK] menu Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the self-test display of the [Projector status] screen, click it to display the error/ warning details. f The projector may go into the standby status to protect the projector depending on the contents of the error. Self-test result display Displays the item check results.
Page 144 Chapter 4 Settings — [NETWORK] menu r [WARNING] items Item Description AC input voltage is weak. Use electric wiring that can sufficiently withstand the power [AC POWER] consumption of the projector. The temperature around the optics module inside the projector is low. Projection cannot [LOW-TEMPERATURE] be started until the optics module becomes warm.
Page 145 Switches whether to use the shutter function (enabled (shutter: set to off (hide). closed)/disabled (shutter: open)). [INPUT SELECT] [OSD] Switches the input signal. Switches on (display)/off (hide) the on-screen display function. (SDI input is supported only for PT-RZ670.) [SYSTEM] Switches the system method. ENGLISH - 145...
Page 146 Chapter 4 Settings — [NETWORK] menu [Detail control] page Click [Projector control] → [Detail control]. Control of the projector [P IN P] The projector is controlled by clicking the buttons in the same Switches the P IN P setting. way as the buttons on the remote control. After control, the on- [WAVEFORM MONITOR] screen display of the projector at the right of the control page is Displays the waveform of the input signal.
Page 147 Chapter 4 Settings — [NETWORK] menu [Network config] page Click [Detailed set up] → [Network config]. f Click [Network config] to display the [CAUTION!] screen. f The current settings are displayed by pressing the [Next] button. f Click [Change] to display the setting change screen. [PROJECTOR NAME] [DNS1] Enter the name of the projector.
Page 148: Adjust Clock] Page
Chapter 4 Settings — [NETWORK] menu [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to be changed. [Set time zone] [Time] Updates the time zone setting. Enter the time to be changed. [NTP SYNCHRONIZATION] [Submit] Set to [ON] to adjust the date and time automatically.
Page 149 Chapter 4 Settings — [NETWORK] menu [E-mail set up] page When there is a problem or the runtime of the light source reaches the set value, an E-mail can be sent to previously set E-mail addresses (up to two addresses). Click [Detailed set up] → [E-mail set up]. [ENABLE] [MINIMUM TIME] Select [Enable] to use the E-mail function.
Page 150 Chapter 4 Settings — [NETWORK] menu [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
Page 151 Chapter 4 Settings — [NETWORK] menu Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : RZ670 Serial No...
Page 152 Chapter 4 Settings — [NETWORK] menu Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : RZ670 Serial No : SH1234567 ----- check system -----...
Page 153 Chapter 4 Settings — [NETWORK] menu [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to change the setting of the password. [User] Used to change the setting of the [User]. [Administrator] account [Account] [New] Displays the account to change.
Page 154 Chapter 4 Settings — [NETWORK] menu [User] account [Account] [OK] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again.
Page 155 Chapter 4 Settings — [NETWORK] menu Operation page [Tools], [Info], [Help] [Input Select] Tabs for selecting the setting, information, or help page of the Controls input selection. projector. Not available when the power of the projector is turned off. Menu screen control buttons [POWER] Turns on/off the power.
Page 156 Chapter 4 Settings — [NETWORK] menu [Info] page Click [Info] on the operation page. [Projector Name] [Source] Displays the projector name. Displays the selected input. [Mac Address] [Error Status] Displays the MAC address. Displays the error status. [Lamp1 Hours], [Lamp2 Hours] [Exit] Displays the runtime of the light source 1 and 2.
Page 157: Chapter 5 Maintenance
Maintenance Chapter 5 This chapter describes inspection when there are problems, and maintenance methods. ENGLISH - 157...
Page 158: Light Source/Temperature Indicators
Chapter 5 Maintenance — Light source/temperature indicators Light source/temperature indicators When an indicator lights up If a problem occurs inside the projector, the light source indicators <LIGHT1>/<LIGHT2> or temperature indicator <TEMP> will inform you by lighting or blinking. Check the status of the indicators and manage the indicated problems as follows. Attention f When switching off the projector to deal with problems, make sure to follow the procedure in “Switching off the projector”...
Page 159: Maintenance
Chapter 5 Maintenance — Maintenance Maintenance Before maintaining the projector f Make sure to turn off the power before maintaining the projector. (x pages 51, 59) f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 59). Maintenance Outer case Wipe off dirt and dust with a soft, dry cloth.
Page 160: Troubleshooting
Chapter 5 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
Page 161 Chapter 5 Maintenance — Troubleshooting Problems Points to be checked Page f Are the connections between the twisted-pair-cable transmitter and the projector or ― an external device correctly done? Cannot control the projector with Art-Net. f Is [Art-Net SETUP] set to other than [OFF]? f Are the [NET], [SUB NET], [UNIVERSE], and [START ADDRESS] settings correct? f Are the connections between the twisted-pair-cable transmitter and the projector or ―...
Page 162: [Self Test] Indications
Chapter 5 Maintenance — [SELF TEST] indications [SELF TEST] indications Details and measures for the alphanumeric symbols indicated in [SELF TEST] from the [PROJECTOR SETUP] menu → [STATUS] are as follows. Self-test indication Details Measure Intake air temperature warning f The operating environment temperature is too high.
Page 163 Chapter 5 Maintenance — [SELF TEST] indications Self-test indication Details Measure f If the display does not clear after switching the Light source 2 error main power off and on, consult your dealer. Intake fan 3 error Phosphor wheel 1 fan error Phosphor wheel 2 fan error Power intake fan error f If the display does not clear after switching the...
Page 164: Chapter 6 Appendix
Appendix Chapter 6 This chapter describes specifications and after-sales service for the projector. 164 - ENGLISH...
Page 165: Technical Information
INPT Input selection RGB2 DVI-D HDMI INPT? Input selection query DIGITAL LINK SDI (Only for PT-RZ670) AVMT Shutter control Shutter function disabled (shutter: open) AVMT? Shutter status query Shutter function enabled (shutter: closed) Indicates fan errors, and returns f 0 = No error is 1st byte 0 - 2.
Page 166: Using Art-Net Function
RGB2 16-23 DVI-D 24-31 HDMI 32-39 DIGITAL LINK 40-47 Input selection ― SDI (Only for PT-RZ670) 48-55 No operation 56-127 Execute P IN P, USER1 128-135 Execute P IN P, USER2 136-143 Execute P IN P, USER3 144-151 No operation...
Page 167: Control Commands Via Lan
“xxxxxx:yyyyy:zzzzzzzz” xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzz 8-byte random number obtained in Step 2) Command transmission method Transmit using the following command formats.
Page 168: Error Response
Chapter 6 Appendix — Technical information r Error response Termination String Details symbol “ERR1” Undefined control command “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period (CR) Message 0x0d “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes...
Page 169: Serial In>/ Terminal
Chapter 6 Appendix — Technical information r Error response Termination String Details symbol “ERR1” Undefined control command “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period (CR) Message 0x0d “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes...
Page 170: Pin Assignments And Signal Names
Chapter 6 Appendix — Technical information Pin assignments and signal names D-Sub 9-pin (female) Pin No. Signal name Details Outside view ― Transmitted data Received data ― Earth ― Connected internally ― D-Sub 9-pin (male) Pin No. Signal name Details Outside view ―...
Page 171: When Multiple Projectors Are Controlled
Chapter 6 Appendix — Technical information Basic format (has subcommands) Same as the basic format Sub command (5 bytes) Parameter (6 bytes) Symbol “+” or “–” (1 byte) and setting or adjustment value (5 bytes) Operation (1 byte) “=” (Set the value specified using parameter) *1 When transmitting a command which does not need a parameter, an operation (E) and parameter are not necessary.
Page 172: Control Command
Power standby STANDBY Power query Power on RGB1 RGB2 DVI-D Switching the input signal HDMI DIGITAL LINK SDI (Only for PT-RZ670) Shutter control OPEN Shutter status query CLOSE DEFAULT/VID AUTO Aspect ratio switch 16:9 THROUGH HV FIT Aspect ratio settings...
Page 173: Remote 2 In> Terminal
Power on <b> button, power standby <v> button, <RGB1> button, <RGB2> button, <RGB1/2> button, <DVI-D> button, <HDMI> button, <DIGITAL LINK> button, <SDI> button, <SHUTTER> button (SDI input is supported only for PT-RZ670.) Note f For pin (2) to pin (8) settings, you can make changes if you set [REMOTE2 MODE] to [USER]. (x page 122)
Page 174: Two-Window Display Combination List
*3 Only supports 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24sF, 1080/24p, 1080/25p, 1080/30p, 1080/50p, and 1080/60p *4 Only for PT-RZ670 Note f In the combination of a, if P IN P (picture in picture) is performed with the signals of a different frequency, images in the sub window will not be displayed.
Page 175: Upgrade Kit
Chapter 6 Appendix — Technical information Upgrade Kit (Only for PT-RZ670) If the optional Upgrade Kit (Model No.: ET-UK20) is applied, the following functions are extended. Function Standard status When the Upgrade Kit is applied Adjustment range of Maximum of ±40°...
Page 176: List Of Compatible Signals
Symbols that indicate formats are as follows. g V: VIDEO, Y/C g R: RGB g Y: YC g D: DVI-D g H: HDMI g S: SDI (Only for PT-RZ670) Scanning freq. Plug and play Dot clock Resolution Mode freq.
Page 177 *7 Only for PT-RZ670 Note f The number of display dots is 1 920 x 1 200 for PT-RZ670, and 1 280 x 800 for PT-RW630. A signal with a different resolution is converted to the number of display dots.
Page 178: Specifications
PT-RZ670BDJ, PT-RZ670LBDJ, PT-RW630BDJ, PT-RW630LBDJ PT-RZ670BT, PT-RW630BT Approx. 0.2 W when [STANDBY MODE] is set to [ECO] Approx. 3 W when [STANDBY MODE] is set to [NORMAL] PT-RZ670 17 mm (0.67") (aspect ratio 16:10) Size PT-RW630 16.5 mm (0.65") (aspect ratio 16:10)
Page 179 Chapter 6 Appendix — Specifications Width 498 mm (19-19/32") Height 200 mm (7-7/8") (with legs at shortest position) Dimensions PT-RZ670, PT-RW630 581 mm (22-7/8") (including standard zoom lens) Depth PT-RZ670L, PT-RW630L 538 mm (21-3/16") (excluding lens mount cover and optional lens) PT-RZ670, PT-RW630 Approx.
Page 180 Horizontal: 15.73 kHz, Vertical: 59.94 Hz; Horizontal: 15.63 kHz, Vertical: 50 Hz For Y/C signal Horizontal: 15 kHz to 100 kHz, Vertical: 24 Hz to 120 Hz PIAS (Panasonic Intelligent Auto Scanning) system For RGB signal f Dot clock frequency: 162 MHz or less...
Page 181 1 set, HDMI 19 p, HDCP compatible, Deep Color compatible 1 set (BNC) SD-SDI signal SMPTE ST 259 compliant <SDI IN> terminal (Only for PT-RZ670) HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant <SERIAL IN>/<SERIAL OUT>...
Page 182: Dimensions
Chapter 6 Appendix — Dimensions Dimensions Unit: mm 249 (9-13/16") 221 (8-11/16") 457 (18") 442 (17-13/32") 498 (19-19/32") * Actual dimensions may differ depending on the product. 182 - ENGLISH...
Page 183: Precautions For Attaching The Ceiling Mount Bracket
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of a ceiling mount bracket not manufactured by Panasonic or the inappropriate choice of location for installation, even if the warranty period of the projector has not expired.
Page 184: Index
Index Index <REMOTE 2 IN> terminal [REMOTE2 MODE] Accessories [GAMMA] Remote control <AC IN> terminal 25, 51 [GEOMETRY] Remote control operations Adjusting adjustable feet Removing/attaching the projection lens [ADVANCED MENU] 69, 85 Renaming the registered signal Art-Net 20, 166 <HDMI> button Resetting to the factory default Projector body 26, 63...
Page 185 Directive for the chemical involved. Panasonic Corporation Web Site : http://panasonic.net/avc/projector/ © Panasonic Corporation 2014 Panasonic System Communications Company of North America 5th Floor, Two Riverfront Plaza, Newark, NJ 07102-5490 TEL: (877) 803 - 8492 Panasonic Canada Inc.

This manual is also suitable for:

Pt-rw630

Panasonic PT-RZ670 Operating Instructions Manual

Read this First

Chapter 1 Preparation

Precautions for Use

About Your Projector

Preparing the Remote Control

Chapter 2 Getting Started

Setting up

Removing/Attaching the Projection Lens

Connecting

Chapter 3 Basic Operations

Switching On/Off the Projector

Projecting

Operating with the Remote Control

Chapter 4 Settings

Menu Navigation

[PICTURE] Menu

[POSITION] Menu

[ADVANCED MENU] Menu

[DISPLAY LANGUAGE] Menu

[DISPLAY OPTION] Menu

[PROJECTOR SETUP] Menu

[P in P] Menu

[TEST PATTERN] Menu

[SIGNAL LIST] Menu

[SECURITY] Menu

[NETWORK] Menu

Chapter 5 Maintenance

Light Source/Temperature Indicators

Maintenance

Troubleshooting

[SELF TEST] Indications

Chapter 6 Appendix

Technical Information

Specifications

Dimensions

Precautions for Attaching the Ceiling Mount Bracket

Index

Quick Links

Operating Instructions

Related Manuals for Panasonic PT-RZ670

Summary of Contents for Panasonic PT-RZ670
