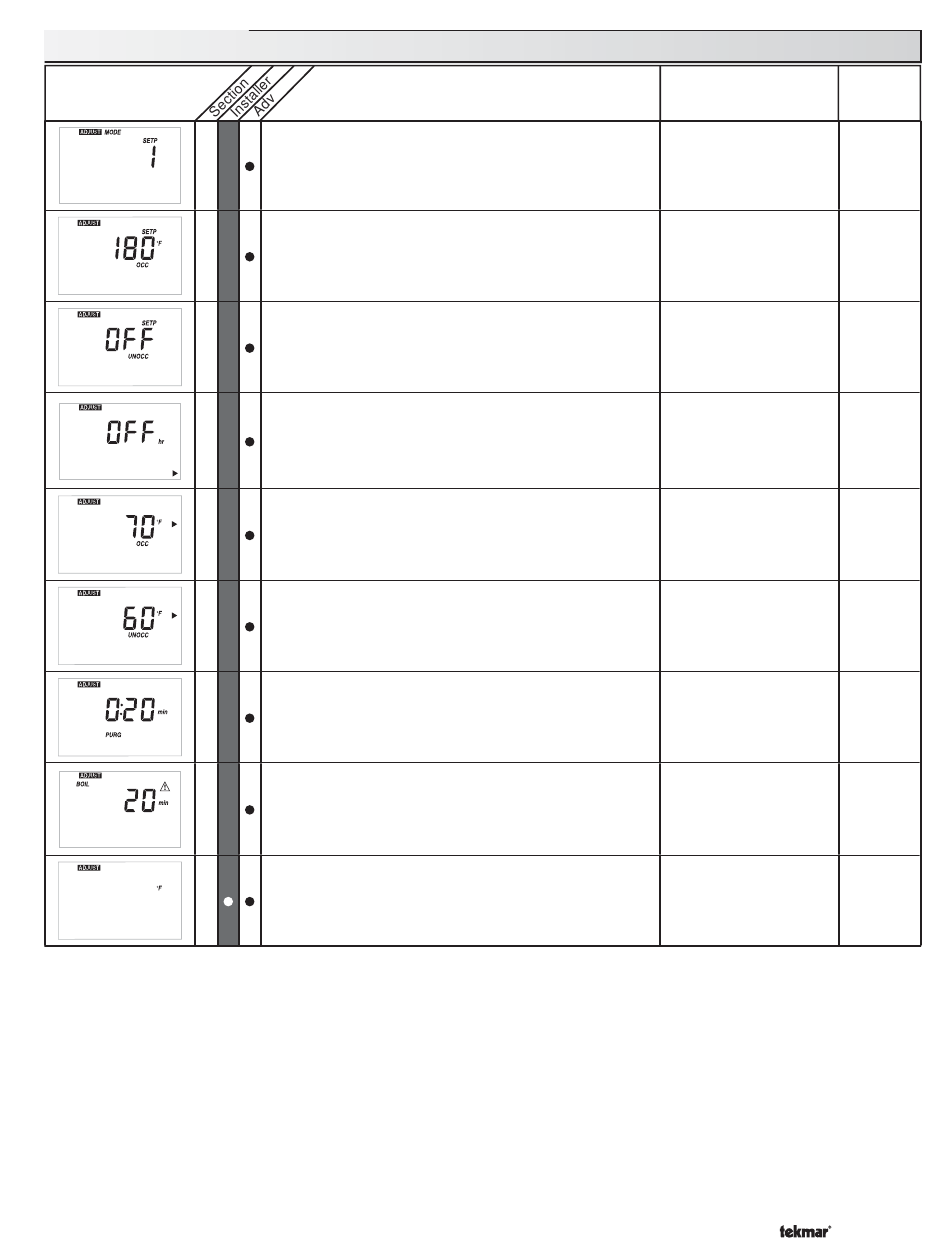

Tekmar Boiler Control 265 Data Brochure page 33

Adjust Menu (5 of 5)
Display
E
E
E
D1
C
C
G
A
Description
Setpoint Mode Selects the Setpoint Mode of operation.
This item is only available when DHW MODE is set
to OFF.
Setpoint Occupied The minimum supply temperature
when a setpoint demand is present during the Occupied
period.
This item is only available when DHW MODE is set
to OFF.
Setpoint UnOccupied Selects whether or not a
setpoint demand will be responded to during the
UnOccupied period.
This item is only available when DHW MODE is set
to OFF.
Priority Override Determines the amount of time the
override waits to provide DHW or Setpoint priority
before resuming space heating.
This item is only available when Boiler Minimum is not
set to OFF.
WWSD Occupied The system's warm weather shut
down temperature during the Occupied period.
This item is only available when the External Input /
Stand Alone DIP switch is set to Stand Alone.
WWSD UnOccupied The system's warm weather shut
down temperature during the UnOccupied period.
This item is only available when the External Input / Stand
Alone DIP switch is set to Stand Alone.
Primary Pump Purge The maximum length of time
that the primary pump will continue to operate after the
boiler demand has been removed.
Boiler Alert The alert signal will be activated if the
boiler supply temperature does not increase within the
selected time.
This item is only available when the Alert / C.A. DIP
switch is set to Alert.
The units of measure that all of the temperatures are to
be displayed in by the control.
33 of 36
Range
Setting
1 (parallel, no priority),
2 (parallel, priority),)
3 (primary pump)
Default = 1
OFF, 60 to 220°F
(OFF, 16°C to 104°C)
Default = 180°F (82°C)
OFF, On
Default = OFF
0:20 to 4:00 hr, OFF
(10 minute increments)
Default = OFF
35 to 100°F, OFF
(2 to 38°C, OFF)
Default = 70°F (21°C)
35 to 100°F, OFF
(2 to 38°C, OFF)
Default = 60°F (16°C)
OFF, 0:10 to 19:55 min
(5 sec increment)
Default = 0:20 min
OFF, 3 to 40 min
(1 min increment)
Default = 20 min
°F, °C
Default = °F
