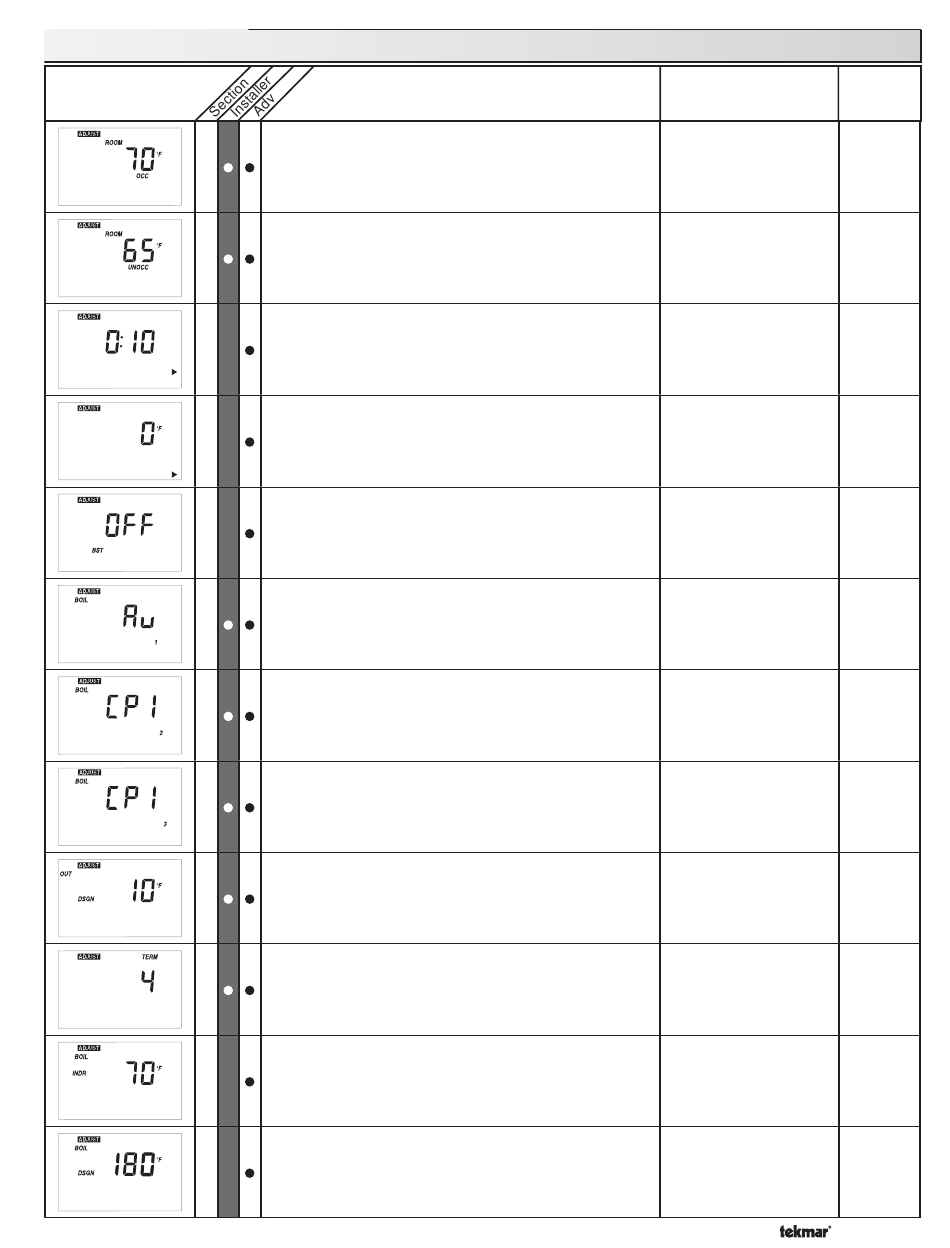

Adjust Menu (1 of 5)
Display
C
C
F
F
C
B
B
B
C
C
C
C
Description
Room Occupied The desired room air temperature
during the occupied period.
This item is only available when the External Input / Stand
Alone DIP switch is set to Stand Alone.
Room Unoccupied The desired room air temperature
during the UnOccupied period.
This item is only available when the External Input / Stand
Alone DIP switch is set to Stand Alone.
External Input Signal Selects the range of the external
input signal.
This item is only available when the External Input / Stand
Alone DIP switch to External Input.
Offset Sets the temperature offset used in calculat-
ing the boiler target temperature with an external input
signal.
This item is only available when the External Input / Stand
Alone DIP switch is set to External Input.
Boost The amount of morning boost when changing
from the UnOccupied to the Occupied period.
This item is only available when the External Input / Stand
Alone DIP switch is set to Stand Alone.
Boiler 1 Selects whether or not boiler 1 is operational.
Boiler 2 Selects whether or not boiler 2 is operational.
CP1 copies the settings of Boiler 1 to Boiler 2.
Boiler 3 Selects whether or not boiler 3 is operational.
This item is only available when DHW MODE is set to
OFF. CP1 copies the settings of Boiler 1 to Boiler 3.
Outdoor Design The design outdoor air temperature used
in the heat loss calculations for the heating system.
This item is only available when the External Input /
Stand Alone DIP switch is set to Stand Alone.
Terminal Unit The type of terminal units that are being
used in the heating system.
This item is only available when the External Input /
Stand Alone DIP switch is set to Stand Alone.
Boiler Indoor The design indoor air temperature used
in the heat loss calculation for the heating system.
This item is only available when the External Input /
Stand Alone DIP switch is set to Stand Alone.
Boiler Design The design supply water temperature used
in the heat loss calculations for the heating system.
This item is only available when the External Input /
Stand Alone DIP switch is set to Stand Alone.
29 of 36
Range
Setting
35 to 100°F
(2 to 38°C)
Default = 70°F (21°C)
35 to 100°F
(2 to 38°C)
Default = 65°F (18°C)
0:10, 2:10
Default = 0:10
-10 to 10°F
(-6 to 6°C)
Default = 0°F (0°C)
OFF, 0:20 to 8:00 hr
(5 minute increment)
Default = OFF
Au (Auto), OFF
Default = Au
CP1, Au (Auto), OFF
Default = CP1
CP1, Au (Auto), OFF
Default = CP1
-60 to 45°F
(-51 to 7°C)
Default = 10°F (-12°C)
1 (HRF1), 2 (HRF2),
3 (COIL), 4 (CONV),
5 (RAD), 6 (BASE)
Default = 4
35 to 100°F
(2 to 38°C)
Default = 70°F (21°C)
70 to 220°F
(21 to 104°C)
Default = 180°F (82°C)
