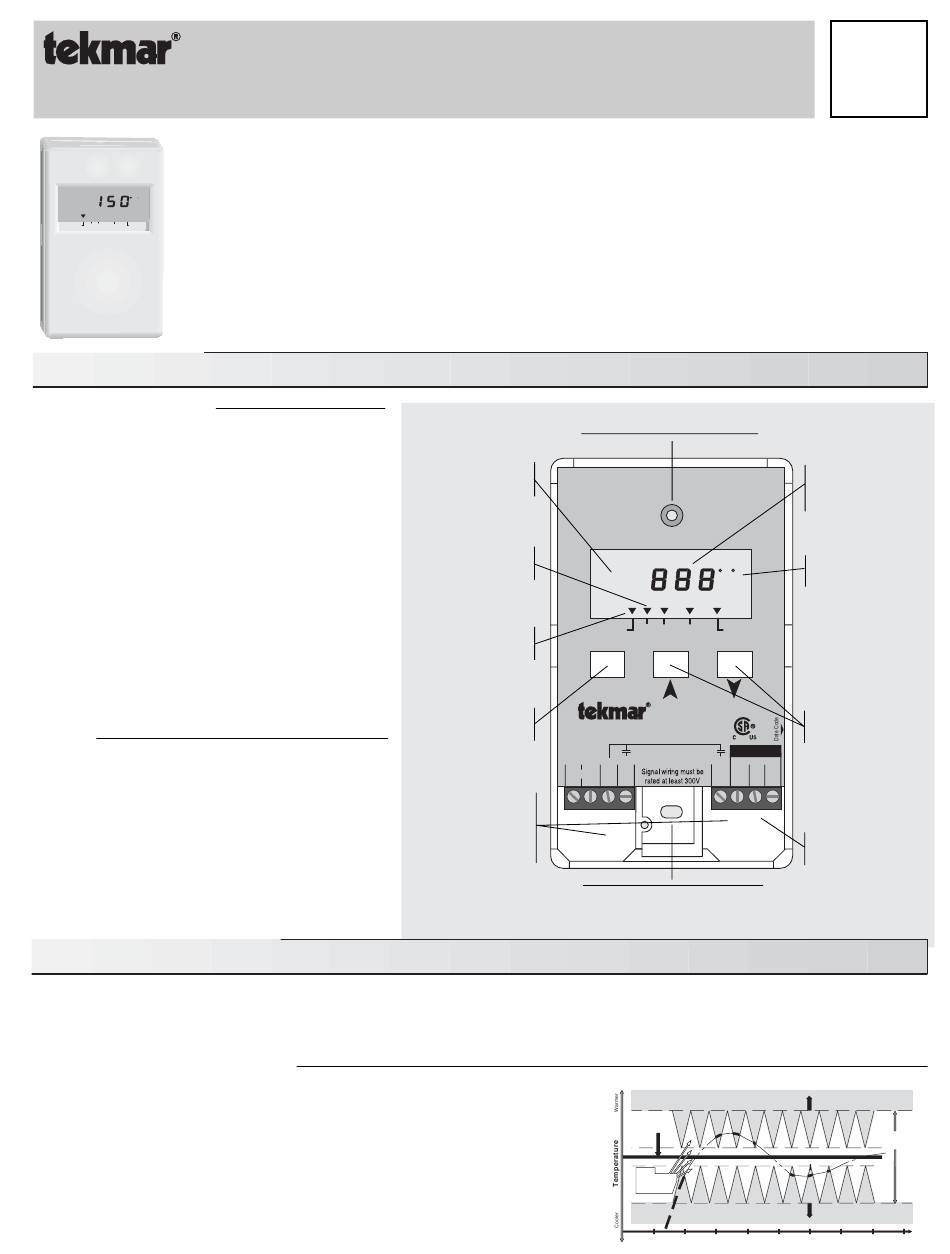

Tekmar Mixing Setpoint Control 153 Data Brochure

- Data Brochure
Mixing Setpoint Control 153

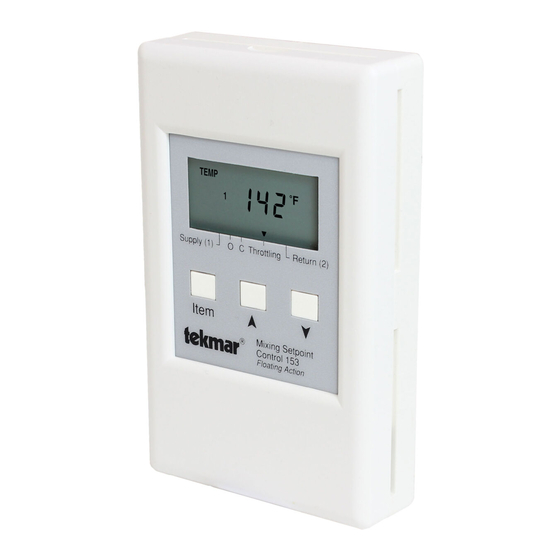

The tekmar Mixing Setpoint Control 153 is a microprocessor-based control with a floating action output
intended to operate a mixing valve, damper, etc. through an actuating motor.
This reliable and versatile control has an adjustable throttling range and a very wide setpoint range that
F C
1
makes it useable in many different applications. The control has a digital LCD window that normally shows
Supply(1) O C Throttling Return(2 the actual sensor temperature and can be used to view the setpoint and other programmed settings.
A Universal Sensor 071 is supplied with the control. The wire to the sensor may be extended for any length
up to 500 ft. (150m) by standard 18 AWG low voltage wire. When an optional return sensor is added, a
minimum boiler return temperature can be constrained. The display will indicate a sensor fault whenever
the sensor is disconnected or short circuited, or the return sensor is short circuited.
Technical Data
Technical specifications
Dimensions — 2-7/8" x 4-3/4" x 7/8"
(74 x 120 x 22 mm)
Gross Weight — 1 lb (450g)
Ambient — –20 to 120° F (–30 to 50°C)
< 90% RH non-condensing
Power supply — 24 V (ac) ±10%, 50/60 Hz, 3 VA
24 V DC ±10%, 0.03 A
Relay capacity — 240 V (ac), Max 10 A, 1/3hp
Sensor — 10 kΩ @ 77° F (25 ± 0.2°C),
NTC thermistor, ß = 3892
accurate with up to 500 ft.
(150m) of 18 gauge wire
Control accuracy — ± 0.5°F ( ± 0.3°C) at
70°F (21°C)
Settings
Temperature Display — –85 to 302° F (–65 to 150° C)
Supply (1) Setpoint — –40 to 239° F (–40 to 115° C)
Throttling Range — 16 to 67° F (9 to 37° C)
Boiler Return (2) — –40 to 239° F (–40 to 115° C)
Temperature Scale — Fahrenheit/Celsius
Program settings — Ten year memory backup
Sequence of Operation
• When the Mixing Setpoint Control 153 Floating Action is powered-up the digital display will show all of the display elements. The
control will then monitor sensor Supply (1) temperature. If a Boiler Return (2) sensor is connected, pressing and releasing the
Item button will toggle the display between Supply (1) and Boiler Return (2) temperature readings.
Floating Action Operating Mode
• If the relay Open (O) is constantly on, the measured temperature is at least
1/2 the throttling range setting below the setpoint. The mixing valve should
be opening or fully opened because more heat is required.
• If the relay Close (C) is constantly on, the measured temperature is at least
1/2 the throttling range setting above the setpoint. The mixing valve should
be closing or fully closed.
• Floating Action occurs when the measured temperature is between these two
points (Throttling range).
Programming
Meets Class B:
mode indicator
Canadian ICES
FCC Part 15
Made in Canada
tektra 906-07
Relay operation
indicators
Item
Identifiers
Item selection and
display button Mixing Setpoint
Control 153 Floating Action
1
Power
C -
Wiring Chamber;
Terminals for 24V (ac)
power supply and
control circuit
to actuating motor
Hole for mounting screw
Power: 24 V ±10% 50/60 Hz 3 VA
24 V (dc) ±10% 0.03 A
Relays: 240 V (ac) 10 A 1/3 hp
H1096F
F C
PRGM
1
2
O
Supply (1) C Throttling Return (2)
Item
No power
5 6 7
2 3
4
Open Close Com Sup
Pwr
Mix Sen Sen
R +
Mix Mix
Hole for mounting screw
24 V (ac) Floating Action
Desired
Temperature
Setting
BOTH
RELAYS OFF;
NO VALVE
MOVEMENT
Time
D 153
12/08
Temperature and
Throttling range
Display
° C or °F
indicators
Programming and
display buttons
8
Ret
Sen
Wiring Chamber;
Terminals for
Sensor(s)
CLOSE RELAY ON
Throttling
Range
OPEN RELAY ON
