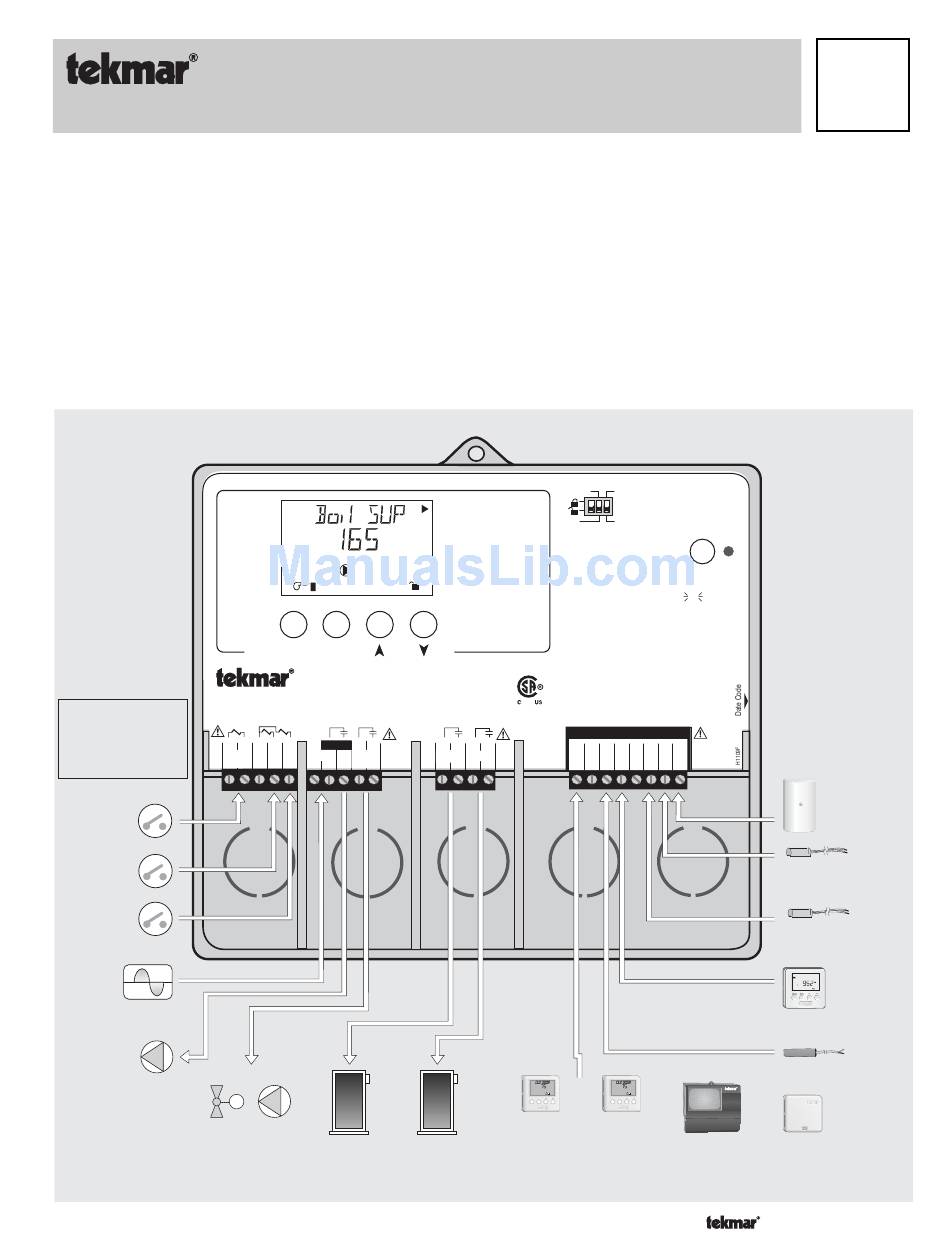

Boiler Control 262
The Boiler Control 262 is a micro processor based control designed to maximize the comfort and efficiency of a hydronic heating system.
The control is designed to operate in two distinct modes.
MODE —1— (Two Stage Boiler & DHW) allows for the control of two separate on /off boiler stages (or one low / high fire) based on outdoor
air temperature, control for indirect Domestic Hot Water (DHW) generation and a Setpoint load. For single zone temperature control
with indoor temperature feedback, a Room Temperature Unit (RTU) or indoor sensor may be connected to the 262. Multiple zone
temperature control is achieved by using either a conventional thermostat system or by connecting a tekmar Zone Control to the 262.
MODE —2— is designed specifically for dedicated DHW applications. In Mode 2, the 262 can stage and rotate two on / off boiler stages
(or one low / high fire) in order to provide heat to a DHW storage system.
The 262 control includes a large Liquid Crystal Display (LCD) in order to view system status and operating information. The same LCD
is used when setting up and installing the control. Standard features include Equal Run Time Rotation, intelligent boiler operation, digital
temperature readouts, and pump exercising. With the addition of a monitoring feature, it is now possible to track pump and boiler running
hours, DHW tank temperature, outdoor and system high and low temperatures, boiler firing cycles, plus many other useful items.
Several energy saving features have been incorporated into the 262 such as Warm Weather Shut Down (WWSD), DHW post purge,
system setback, DHW priority and an automatic differential for boiler operation.
