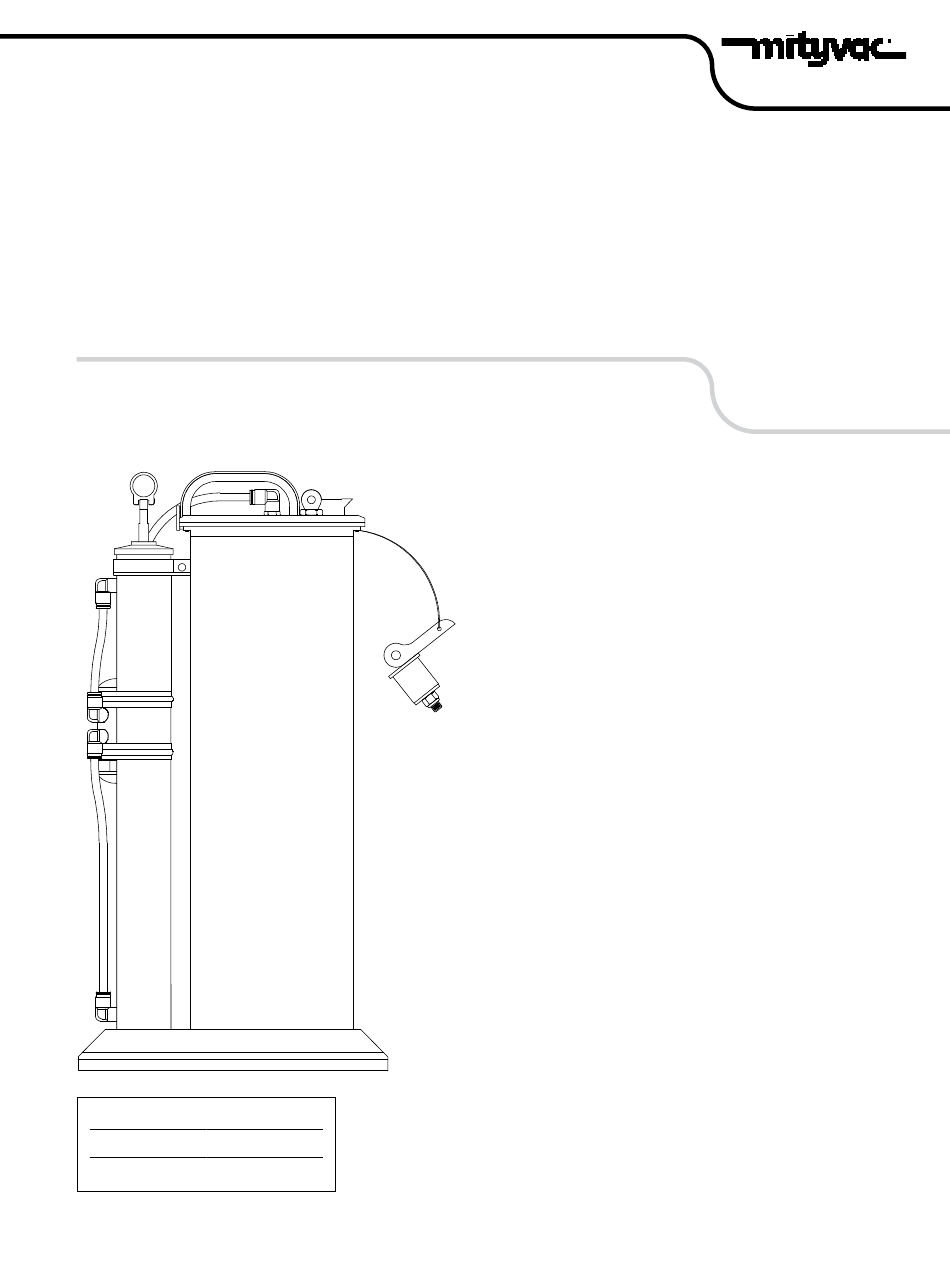

User and maintenance instructions
Fluid evacuator plus
Model MV7201
Date of issue
November 2017
Form number
801672
Version
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MityVac MV7201 and is the answer not in the manual?

Questions and answers

Summary of Contents for SKF MityVac MV7201

  • Page 1 User and maintenance instructions Fluid evacuator plus Model MV7201 Date of issue November 2017 Form number 801672 Version...
  • Page 2: Table Of Contents

    Contents Safety Explanation of signal words for safety Read and carefully observe operating instructions before unpacking and operating Safety ......pump.
  • Page 3: Precaution

    Precaution Extract from and Automatic shut-off valve dispense motor oil Equipment is designed for servicing a variety Reservoir tank of fluid evacuator plus is into crankcase of vehicles in a safe and convenient manner; equipped with automatic shut-off valve to however, differences in engine blocks and prevent over-filling of reservoir tank.
  • Page 4: Extract From And Dispense Fluid Into Transmission Cases And Differentials

    Extract from and 12 Once oil is extracted from crankcase, 6 Place selector valve mounted on side of dispense fluid into remove expandable rubber plug from pump assembly to evacuate. reservoir tank. 7 Raise pump handle on reservoir tank transmission cases 13 Pour oil from tank into suitable until highest limit is reached.
  • Page 5: Extract And Dispense Coolant Into Cooling System

    Extract and dispense Extract brake fluid Technical questions coolant into cooling from master cylinder If you have questions, or require technical system service, please contact trained service 1 Clean exterior of master cylinder and technicians at: 1-314-679-4200 ext. 4782. master cylinder cap. This will prevent dirt Visit website www.mityvac.com for new from entering master cylinder reservoir products, catalogs and instructions for...
  • Page 6: Illustrated Parts Break Down

    Fig. IPB 1 12.38 in (314,4 mm) 9.25 in (125, 7 mm) 23.92 in (607,5 mm) Dipstick tubes. Main suction tube. Model MV7201 service parts list Item Description Part no. Item Description Part no. Vacuum tube kit 822559 Evacuator top kit 822576 Handle kit 822561...
  • Page 7 This page left intentionally blank.
  • Page 8 | mityvac.com ® SKF and MityVac are registered trademarks of the SKF Group. © SKF Group 2017 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permission is granted. Every care has been taken to ensure the accuracy of the information contained in this publication but no liability can be accepted for any loss or damage whether direct, indirect or consequential arising out of the use of the information contained herein.
