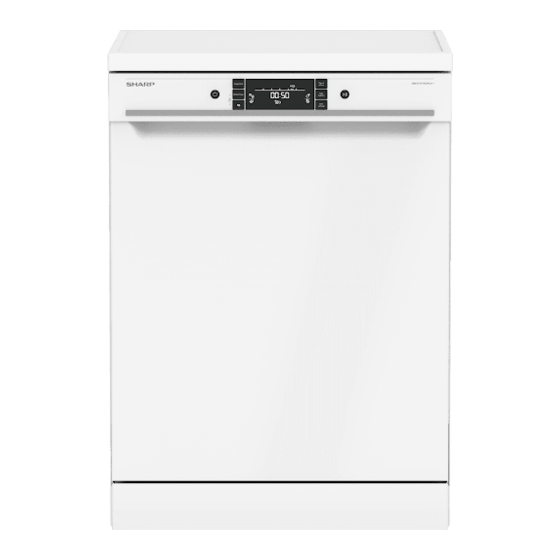

Sharp QW-GT31F452W-DE User Manual
  1. Manuals
  2. Brands
  3. Sharp Manuals
  4. Dishwasher
  5. QW-GT31F452W-DE
  6. User manual
Sharp QW-GT31F452W-DE User Manual

Sharp QW-GT31F452W-DE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Home Appliances
QW-GT31F452W-DE
QW-GT31F452I-DE
Dishwasher
EN-1

Advertisement

Table of Contents
loading

Related Manuals for Sharp QW-GT31F452W-DE

Summary of Contents for Sharp QW-GT31F452W-DE

  • Page 1 Home Appliances QW-GT31F452W-DE QW-GT31F452I-DE Dishwasher EN-1...
  • Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................1 1.3. During Use........................2 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................6 2.5. Electrical Connection ....................7 2.6.
  • Page 4 8.CLEANING AND MAINTENANCE ................. 1 8.1. Cleaning the Machine and Filters ................19 8.2. Spray Arms ........................19 9.TROUBLESHOOTING ....................10.PRACTICAL INFORMATION ..................2...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed.

  • Page 6: Installation Warnings

    1.2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.
  • Page 7 The machine door should not be left open. It may cause accidents. Place knives and other sharp objects in the cutlery basket in a blade-down position. For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program.
  • Page 8 be performed by an authorised service company, otherwise the warranty will be void. Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap. Operation at a low voltage will cause a decline in performance levels.
  • Page 9 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

  • Page 10: Installation

    2. INSTALLATION new hose before connecting. 2.1. Machine positioning WARNING: Connect the hose directly to the water inlet tap. The pressure When positioning the machine, place it in supplied by the tap should be a minimum an area where dishes can be easily loaded of 0.03 MPa and a maximum of 1 MPa.

  • Page 11: Electrical Connection

    WARNING: After removing the top panel of your dishwasher, the machine should be placed in a space of the dimensions shown in the figure below. 2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

  • Page 12: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 15 place Capacity settings Dimensions (mm) Height 850(mm) Width 598(mm) Depth 598(mm) Net weight 53 kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) 3.1. General appearance 1. Worktop 2. Upper basket with racks Total power 3.

  • Page 13: Before Using The Appliance

    . BEFORE USING THE APPLIANCE .1. Preparing your Dishwasher for first use • Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine. • Remove all packaging material inside the machine. •...

  • Page 14: Test Strip

    .3. Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) NOTE: The level is set 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 15: Filling The Detergent

    .8. Filling the detergent In order to change the rinse aid level, follow the below steps before turning on Push the latch to open the dispenser and the machine: pour in the detergent. • Push the programme button and hold it Close the lid and press it until it locks in down.

  • Page 16: Recommendations

    . GESCHIRRSPÜLER BELADEN Um bestmögliche Ergebnisse zu erzielen, beachten Sie die folgenden Hinweise. Stellen Sie stark verschmutzte größere Teile in den unteren Korb (Töpfe, Pfannen, Deckel, Teller und Schüsseln). Der obere Korb ist für empfindlicheres und leichteres Geschirr ausgelegt, wie Gläser, Kaffee- und Teetassen sowie Untertassen.
  • Page 17 Foldable racks Foldable racks on the upper basket are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained.
  • Page 18 The basket is easily removed from the dishwasher, therefore allows ease of use WARNING: Knives and other sharp objects when removing your items, along with the must be placed horizontally in the cutlery basket, after washing.

  • Page 19: Alternative Basket Loads

    5.2. Alternative Basket Loads Lower Basket Top basket Incorrect loads EN - 15...

  • Page 20: Programme Table

    6. PROGRAMME TABLE Programme Duration (min) Description Prewash To rinse heavily soiled dishes before a wash programme. Fast programme intended for recently used dishes which are lightly soiled. Mini 14’ Suitable for 4 place settings. Quick 30’ Quick wash programme for lightly soiled dishes. Standard programme for dishes which are used daily but are not heavily (Reference) soiled.

  • Page 21: The Control Panel

    THE CONTROL PANEL Starting the Machine and Selecting a Programme 3 4 5 6 7 8 Press the Power On/Off button (1), the display (15) will show the most recently used programme. Select the programme most suitable for P P P P P P P P your dishes using the Programme button (4).

  • Page 22: Changing A Programme

    The Remaining Time Display (15) shows When it finishes, the time remaining for the programme durations and the time cancellation will show on the display. remaining of the programme in operation. The water discharge process will start when the time remaining finishes and the End NOTE: A programme may take a symbol will illuminate.

  • Page 23: Cleaning And Maintenance

    8. CLEANING AND the filters. Replace the filter insert, and MAINTENANCE rotate it clockwise (4). • Never use your Dishwasher without a Cleaning your Dishwasher is important filter. to maintain the machine’s service life. • Incorrect fitting of the filter will reduce Oil and lime may build up in your the washing effectiveness.

  • Page 24: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 25 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.

  • Page 26: Practical Information

    AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing Separate the inlet hose from the tap and clean the filter of Insufficient water the hose.
  • Page 28 Service & Support Visit Our Website sharphomeappliances.com EN-2 52260568 R35...
