USCutter LaserPoint3 User Manual & Assembly Instructions page 7

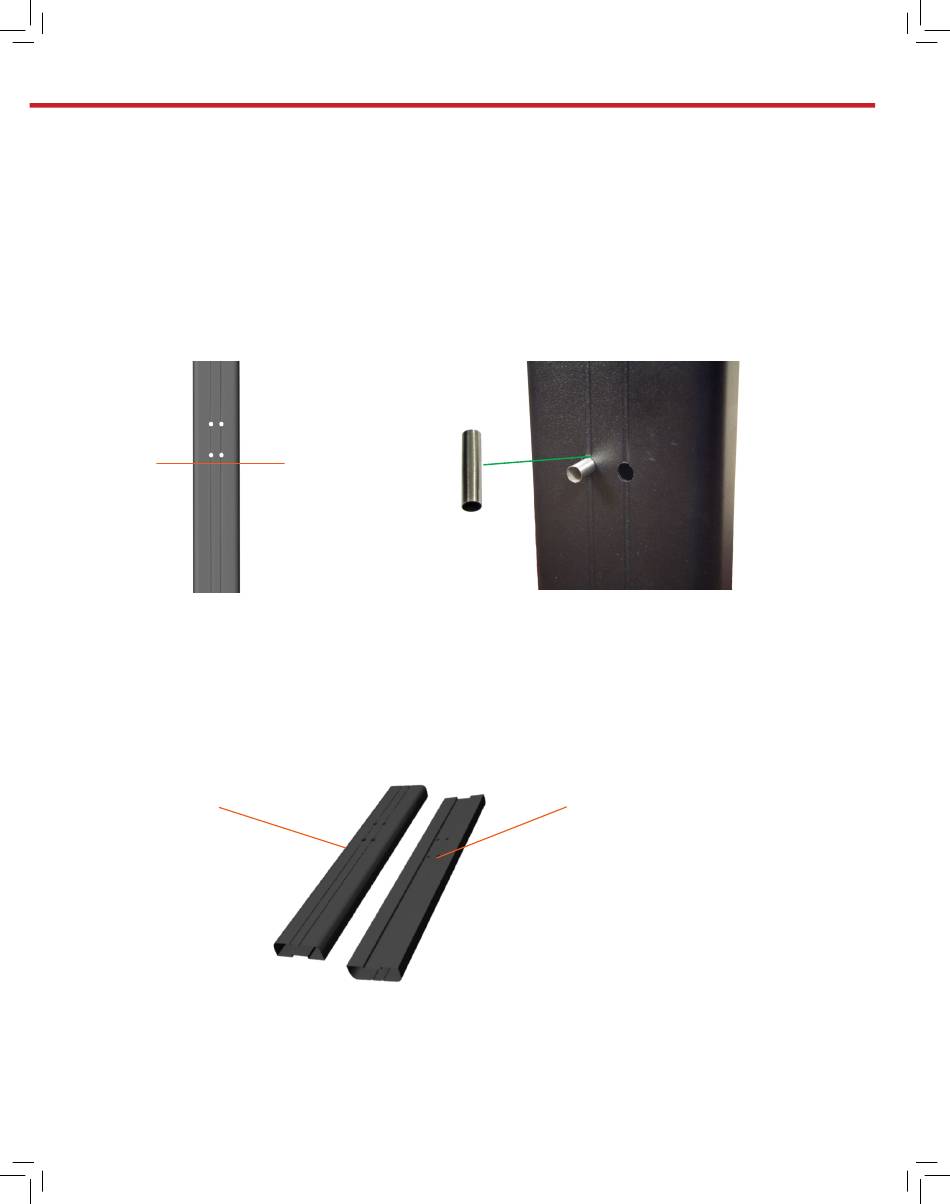

Which end of the leg do I attach the foot?
Good question. See those two holes that are further toward one end of the
leg? That's where your cross piece is going to attach and hold the two legs
together. Attach the foot to the other end.
Also, note the use of the tubular screw guide and how to place it in the leg
holes when attaching the leg to the cross beam. If you cannot find your screw
guide, you can use a large drinking straw or thick milkshake straw instead.
Install foot here
One side is rounded and the other has sharp corners? Which side
should face out?
The rounded edge side should face out. If you look closely at the holes
you will see that one side is biger than the other. The small holes will
attach the cross piece and you'll screw them in through the larger hole.
Face out
Attach the foot to the leg with four #1 screws using the Phillips screw-
driver. Repeat with the other leg and foot making sure the rounded
edge faces out and the holes for the cross piece are close to the top.
L
Screw Guide
(place in leg)
7
425.481.3555
Assembling the stand
Face in
