Cleaning & Maintenance

Fuse Replacement

CAUTION: DISCONNECT POWER BEFORE ATTEMPTING TO REMOVE
THE FUSES OR SERIOUS INJURY OR DEATH MAY OCCUR.
Replace the fuses in the Power Input Module with the fuses
indicated in the Specifications section of this manual.
1. Remove input power to the instrument.
2. Remove the Fuse Holder by pressing in on the side tabs,
and pull out the Fuse Holder from the Power Input Module.
Refer to Figure MM-04.
3. Install new fuses (P/N RFAG20039) into the Fuse Holder.
Refer to Figure MM-05.
Note: When ordering replacement fuses from Reichert, use only
the part number listed above.
Note: Any fuse meeting the specifications listed in the Specifi-
cations section of this manual may be used in the device.
4. Push the Fuse Holder into the Power Input Module.

Storage

There is a storage compartment located at the top of the instru-
ment behind the LCD Screen. Lift the door to access the stor-
age compartment. Refer to Figure MM-06.

Power Cord Replacement

Replace the power cord with the following P/N's. When ordering a
replacement power cord, use only the part numbers listed below.
• Power cord - 120 V (P/N WCBL10018)
• Power cord - 230 V (P/N WCBL10027)
15180-101 Rev. F
(continued)
Push Tabs In

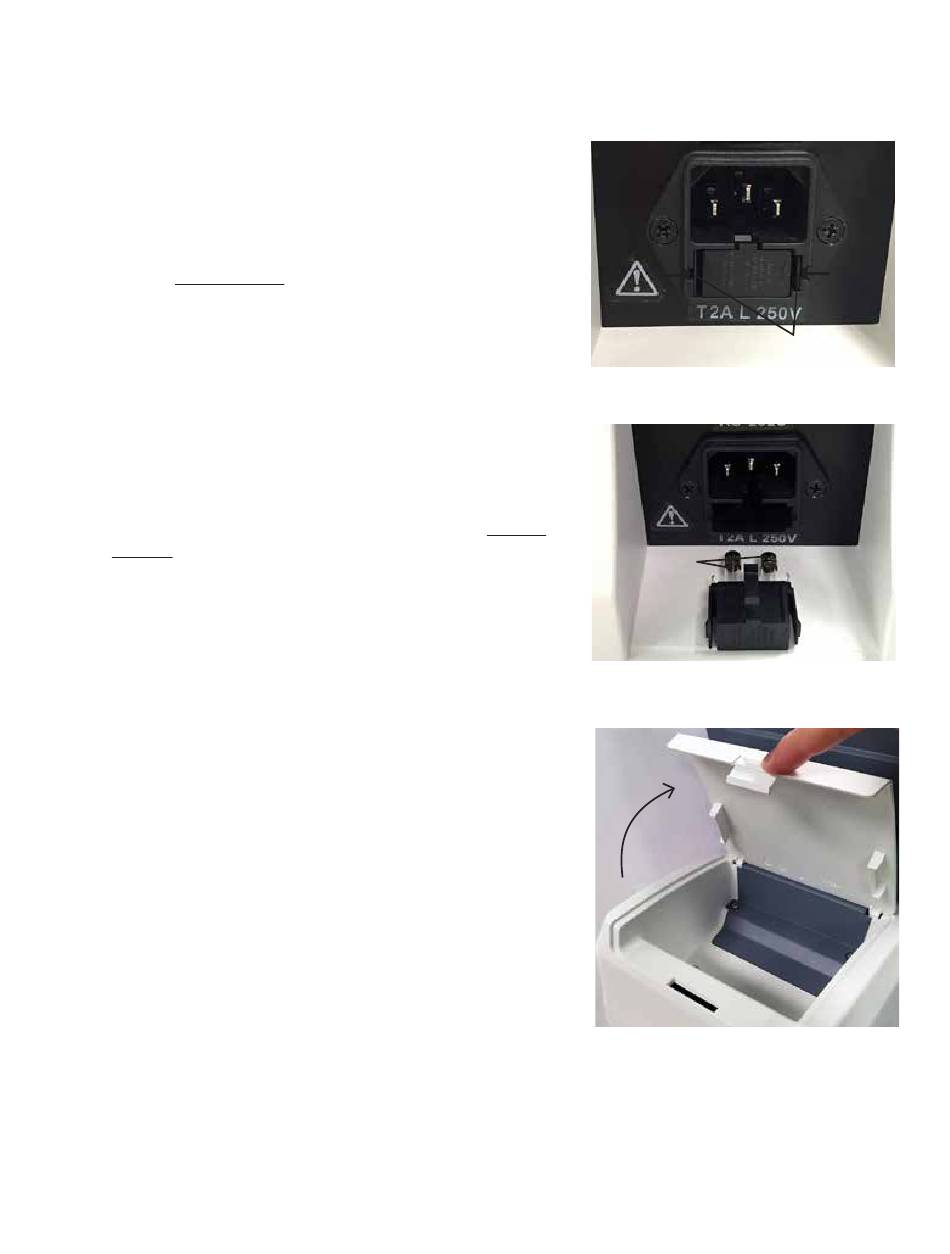

Figure MM-04 Fuse Holder
Fuses
Figure MM-05 Replace Fuses
Figure MM-06 Storage Compartment
