Measurement Screen

Description of Measurement Screen

Measurement
Setting
Axis Mark

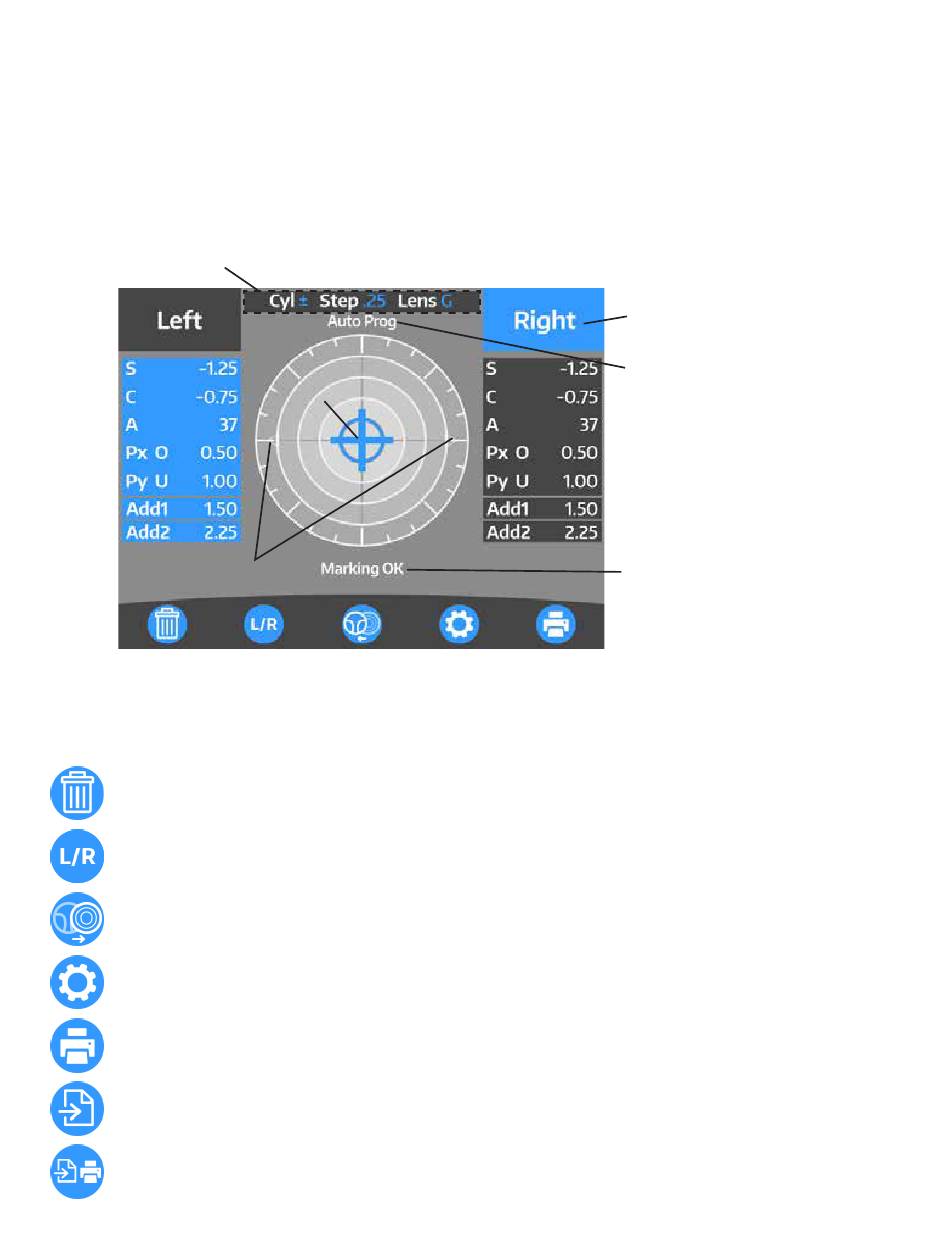

Figure SU-07 Measurement Screen
The functions of the buttons under the monitor correspond to the icons displayed at the bottom of the
screen. At the time of normal measurement, they correspond to the icons shown below.
Clear Icon: Clears the measurement values. (The data stored in memory is also cleared by
selecting this icon.)
S/R/L,R/L Icon: Selects single, left or right lens.
Measurement Selection Icon: Switches measurement mode from single vision lens to
progressive lens.
Setup Icon: Switches to Setup screen.
Print Icon: Prints measurement results.
Output Icon: Outputs data from the RS232C port.
Print and Output Icon: Prints measurement results and outputs data from the RS232C
port.
12
(continued)
Cross
Cursor
Type of Lens
(Left/Right/Single)
Progressive Lens
Auto-Detect Mode
(Displayed when "Auto
Prog" is set to ON)
Display of Alignment
Condition or Error Message
15180-101 Rev. F
