Instrument Setup
Parts Identification
Marking Pens
Lens Holder
Nose Pads*
Lens Stand
Memory/Add Button
Lens Holder Lever:
Use this lever to raise and lower the Lens Holder on the lens.
Marking Lever:
Use this lever to raise or lower the Marking Pens on the lens.
Lens Holder:
Secures the lens to the Lens Stand.
Marking Pens:
Use these pens to place ink marks on the lens.
Lens Stand:
Install this cover on the Nosepiece to measure eyeglass lenses.
Contact Lens Cover:
Install this cover on the Nosepiece to measure contact lenses. Refer to the Contact Lens section of this
manual.
Lens Table:
Adjust this table against the bottom edge of the lens to help position it.
Nose Pads:
The Nose Pads allow for the automatic measurement of the Pupillary Distance (PD). (LensChek Pro only)
Memory/Add Button:
Press this button to manually store measurement values and to perform ADD measurements.
10
(continued)
(continued)

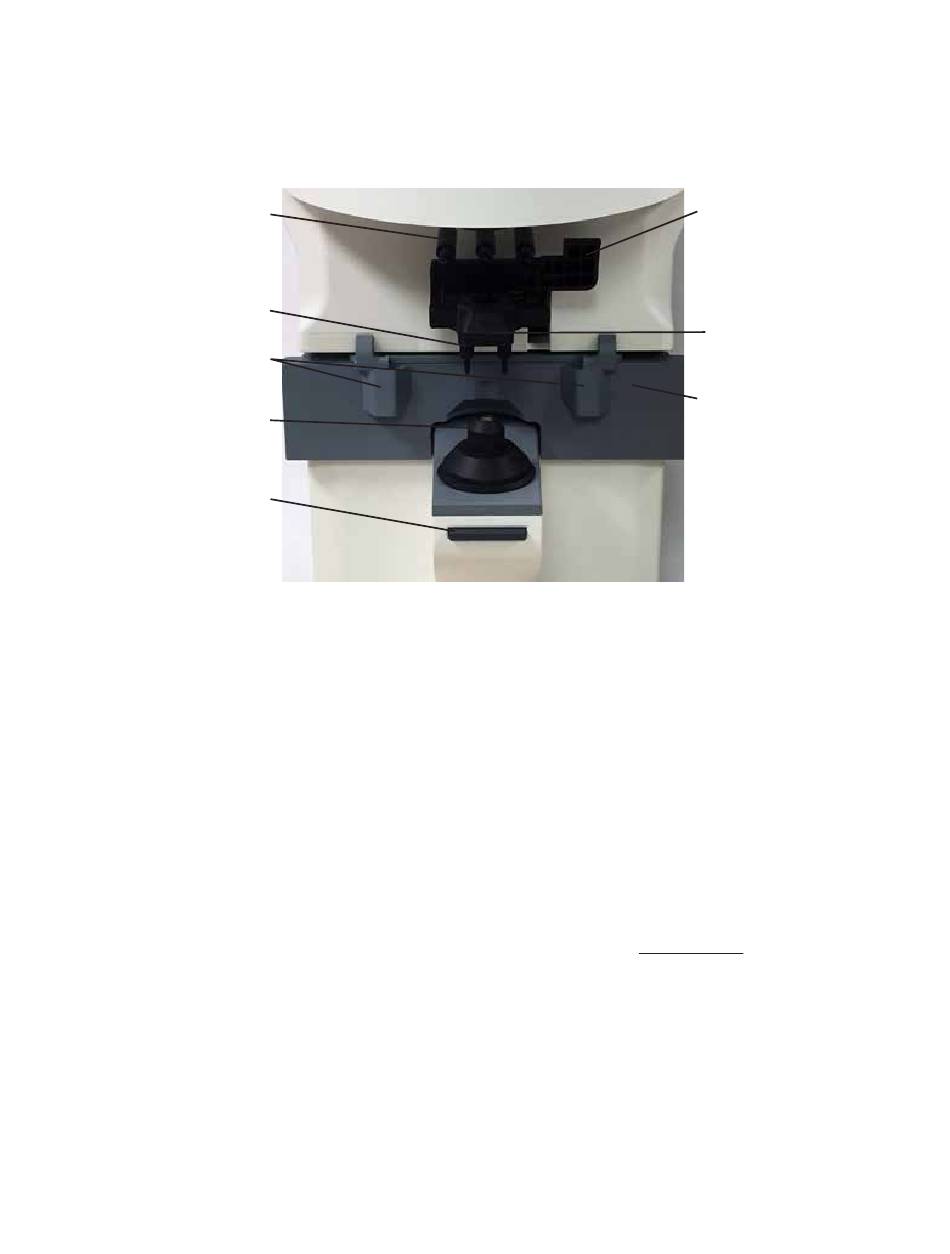

Figure SU-06 Measurement Area
Marking Lever
Lens Holder/Lever
Lens Table
