Instrument Setup
Instrument Settings
Setup Screens
(continued)
The second page of the Setup Screen contains the following
categories:
Prism Selects display of prism value and unit to be
displayed. (Off / X-Y / P-B)
Off: No display
X-Y: X-Y display
P-B: Prism value - base direction.
Prism(mm)
Displays the offset from the optical center in mm
(On / Off)
Abbe Selects Abbe number. (20 / 30 / 40 / 50 / 60)
Ray Selects measurement wavelength. (e / d)
e: measures the e line
d: measures the d line
Output Device Select where the measurement data will go. (Printer / RS232C / Both)
Auto Comm Set to either continuously send data to comm port or not. (Off / On)
Baud Rate Select the baud rate. (115200 / 38400 / 9600)
Prog. Graph Sets display of ADD value and assessment graph on progressive lens measurement
screen. (On / Off)
Graph Print Sets printing of ADD value and assessment graph after measuring progressive lens.
(On / Off)
The third page of the Setup Screen contains the following
categories:
Practice Input the Practice Name as it will appear on
printouts. (Enter Data)
Set ID# Sets the starting point for the Patient Identification
Number (up to 5 digits).
Print ID# Display the Patient ID on the printout. (Off / On)
Display ID# Display the Patient ID on the screen. (Off / On)
Date Format Select how the date is displayed.
(MDY / DMY / YMD)
Date
Set the current date.
Time Format Display the time in either 12 hour or 24 hour
format. (12hrs / 24hrs)
Time
Set the current time.
15180-101 Rev. F
(continued)
(continued)

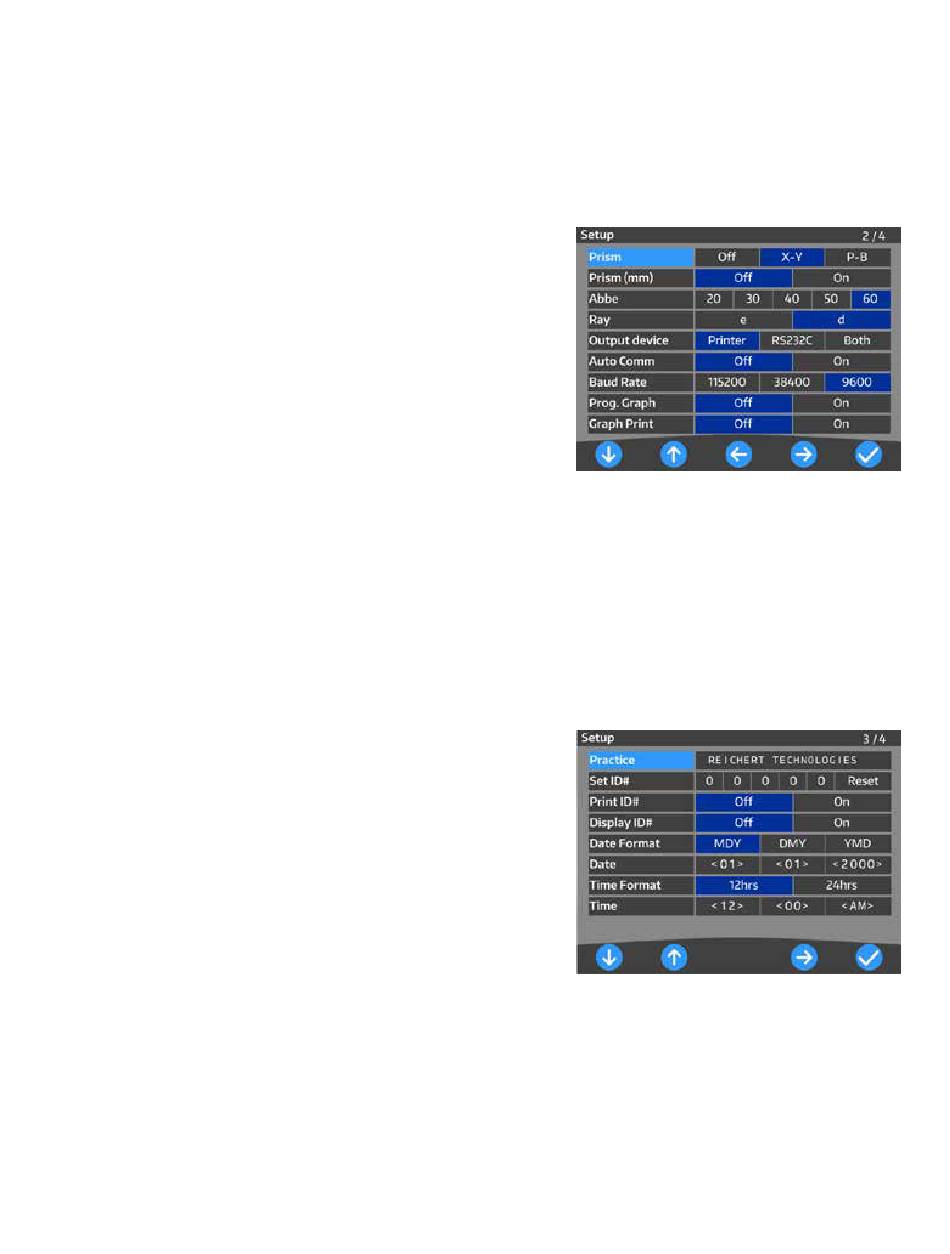

Figure SU-11 Page 2, Setup Screen
Figure SU-12 Page 3, Setup Screen
