Note: This sprinkler is a Control Mode sprinkler.
Features:
1.
Utilizes Standard Response center strut
solder sensor.
2.
165°F (74°C), 212°F (100°C) and 286°F
(141°C) temperature ratings.
3.
Available in brass, lead coated, wax
coated and wax over lead coated finishes.
4.
Provides higher flows at much lower
pressures for all occupancies, especially in
high density applications, such as the
protection of high-piled storage.
5.
Limits density increases for plastic pallet
applications per NFPA 13.
Listings & Approvals
1. Listed by Underwriters Laboratories Inc. and UL
certified for Canada (cULus) to include storage
applications.
2. NYC MEA 258-93-E
3. FM Approved
Technical Data
Applications
Wet, Dry and Pre-Action Sprinkler Systems
Hazards
Ordinary, Extra Hazard and Storage
Occupancies per NFPA 13
For Sprinkler Spacing, Positioning, and Density/Area Flow
Calculations: refer to NFPA 13
Minimum Working Pressure
7 psi (0,5 bar) residual (flowing)
Maximum Working Pressure
Rated 175 psi (12,1 bar)
Factory tested to 500 psi (34, 5 bar)
Discharge Coefficients (K Factor)
½
K=16.8 GPM/psi
(241,9 LPm/bar)
Pipe Thread Connection
¾ NPT (R3/4)
Overall Length
7
2
inch (73 mm)
8
Refer to CA-167
The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
½

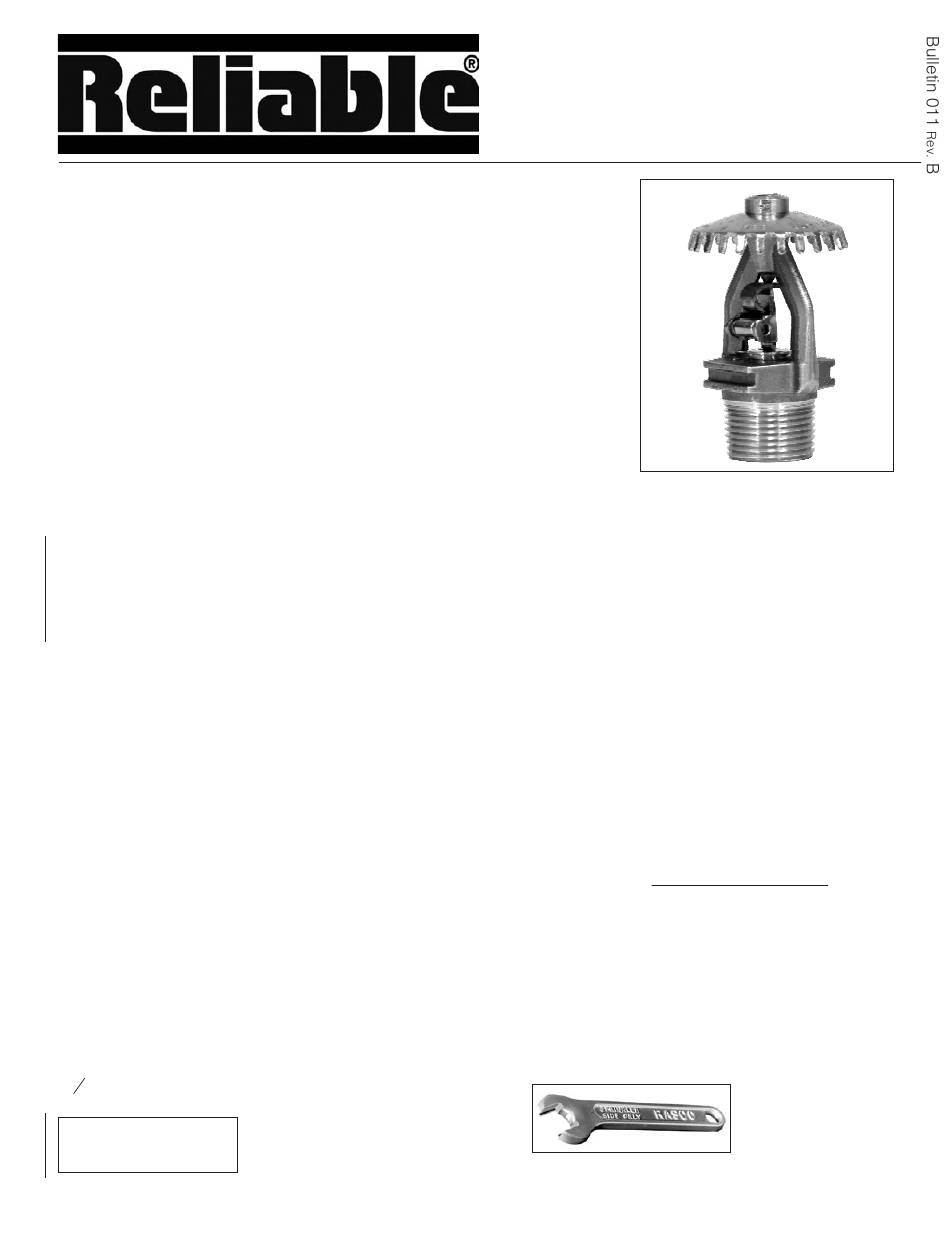

Model J168
Standard Response
Upright Sprinkler
(SIN RA1124)
Sprinkler Identification Number
Product Description

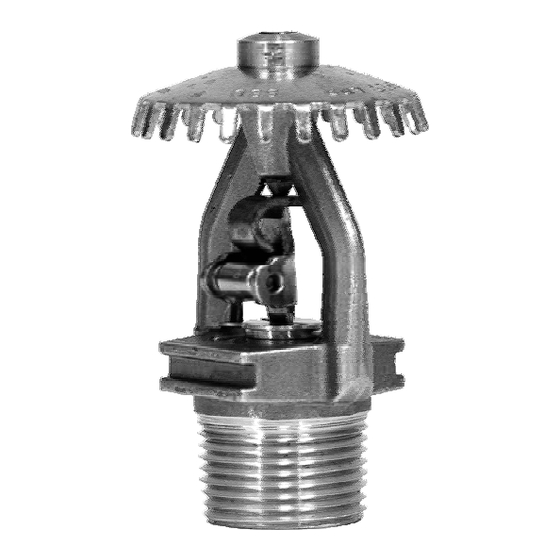

The Reliable Model J168 Automatic sprinkler utilizes the
center strut solder in compression principle of construction.
The fusible alloy is captured in the cylinder of the solder
capsule by a stainless steel ball. When the fusible alloy melts,
the ball moves into the cylinder allowing the cylinder to
separate from the center strut. When this happens, the lever is
released to spring free from the sprinkler so that all operating
parts clear the waterway allowing the deflector to distribute the
discharging water in a hemispherical pattern.
The Reliable Model J168, 16.8 K-factor sprinklers were
tested in full scale fire tests to qualify them for the protection of
rack and high piled storage.
Availability & Service
Reliable products are available through an extensive
network of domestic and international distributors. See the
Reliable Web site at www.reliablesprinkler.com for additional
information.
Ordering Information
Specify:
1. Model J168 Upright
2. Temperature rating (see page 2)
3. Finish (see page 2)
4. Model J1 Installation Wrench
Model J1 Wrench
Bulletin 011
B
Rev.
RA1124
