Reliable JL-17 Quick Start Manual

Features:

1. cULus, VdS, and LPCB listed as a nominal
K16.8 (240 metric) ESFR sprinkler.
2. FM Approved as a quick-response, storage
and non-storage, sprinkler.
3. Fusible link operating element.
4. Compact design allows piping to be in-
stalled farther from the ceiling and obstruc-
tions compared with larger sprinklers.

Listings and Approvals

1. Listed by Underwriters Laboratories Inc. and UL certified
for Canada (cULus) - Category Code VNWH.
2. FM Approved as a quick-response, storage and non-
storage, sprinkler.
3. VdS Schadenverhütung GmbH (VdS).
4. Loss Prevention Certification Board (LPCB).
5. CNBOP Technical Approval.

Product Description

The Reliable Model JL-17 Early Suppression Fast
Response (ESFR) Sprinkler with a nominal k-factor of
16.8 (240 metric). This sprinkler is designed to respond
quickly to growing fires and will deliver a heavy water
discharge to "suppress" rather than "control" fires. FM
Global classifies the Model JL-17 as a quick-response
sprinkler, storage and non-storage, when the sprinkler is
used in accordance with FM Global Property Loss Pre-
vention Data Sheets.
The Model JL-17 ESFR sprinkler utilizes a levered fus-
ible alloy solder link in either a 165°F (74°C) or a 212°F
(100°C) rating. Model JL-17 sprinklers are cULus Listed
for compliance with UL/ULC 1767, including the high
clearance test for rack storage.
The Model JL-17 ESFR sprinkler was designed to be
shorter and more compact than other ESFR sprinklers.
The shorter sprinkler allows piping to be installed farther
from the ceiling and obstructions. The JL-17 ESFR sprin-
kler is also less susceptible to damage due to smaller
deflector and frame design. The lighter JL-17 ESFR
passed rough use and abuse listing tests without plastic
protectors.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model JL-17 (SIN RA1914)
K16.8 (240 metric)
Early Suppression
Fast Response Sprinkler

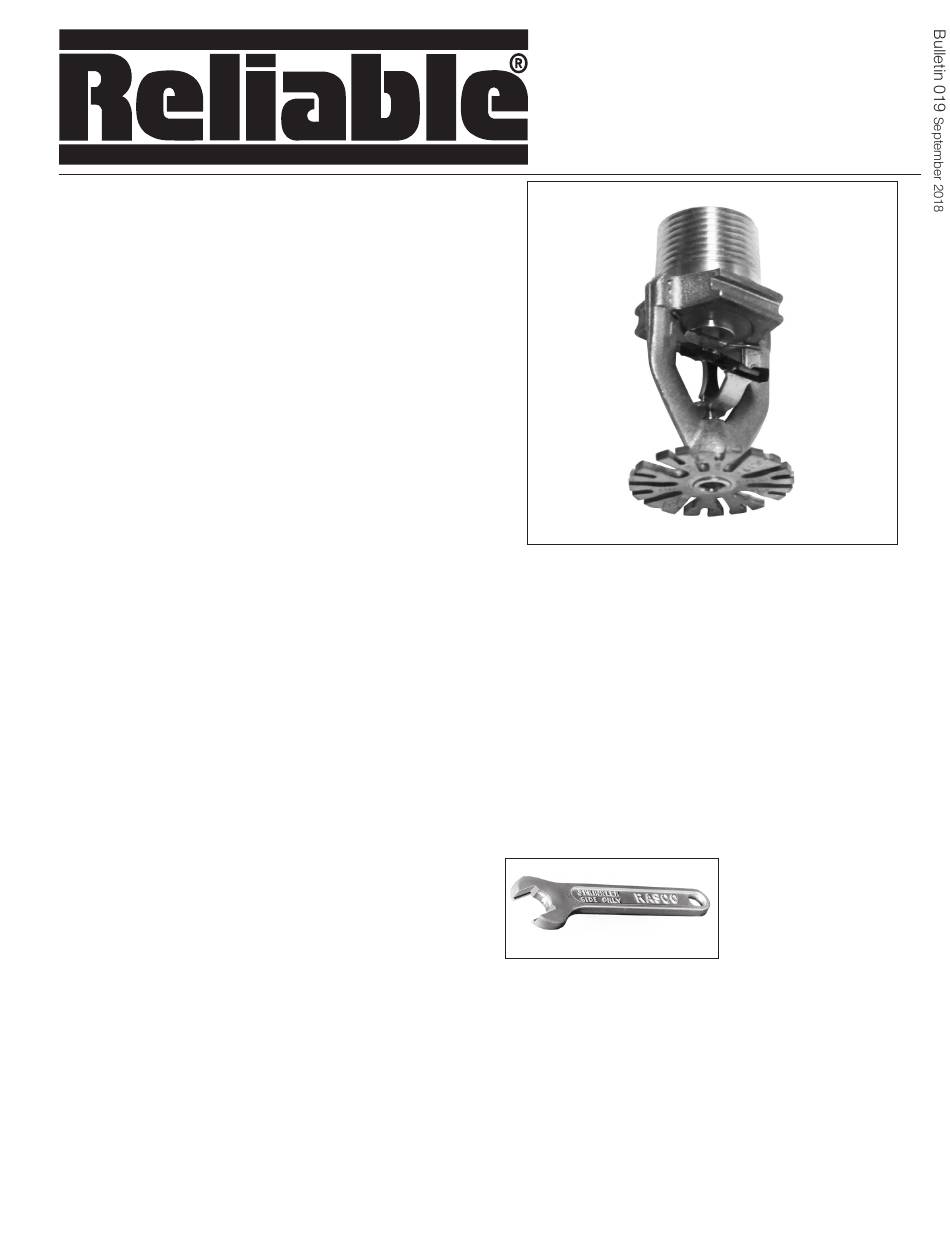

Model JL-17 ESFR Sprinkler

Application and Installation

The Model JL-17 ESFR sprinkler is intended for instal-
lation in accordance with NFPA 13 and FM Loss Pre-
vention Data Sheets 2-0 and 8-9, as well as the require-
ments of any Authorities Having Jurisdiction. See Table
B for information on NFPA and FM Global design criteria
for the Model JL-17 sprinkler.
Use only the Model J1 sprinkler wrench for removal
and installation. Any other type of wrench may damage
the sprinkler. A grooved wrench boss is provided on
the sprinkler to limit the potential for the wrench to slip
during installation.
Model J1
Sprinkler Wrench
Sprinklers not tightened to recommended torque may
cause leakage or impairment of the sprinkler. Damage
sprinklers must be replaced immediately.
Bulletin 019
September 2018
When handling sprin-
klers, hold sprinklers
only on frame arms and
do not apply any force on
the link assembly. Sprin-
klers should be tight-
ened between 14 - 40 ft-
lbs (19 - 54 N-m) torque.
