KEY COMPONENTS


SHEAR BANK consisting of 8, 10, or 30 shear test stands including panel holder, trip
plate, panel rack, and mounting drum.

TIMER BOX displays test bank position, time. Temperature is only displayed with the
optional Thermocouple accessory.

SHEAR PANEL HOLDER mounted chrome clips providing a bracket to hold shear
panels in place for testing purposes.

PANEL RACK consisting of horizontal flat bar providing mounting points for the Shear
Panel Holders.

PANEL RACK MOUNTING DRUM consisting of cylinder shaped mounting points for the
Panel Rack.

TRIP PLATE steel plate mounted below shear station to provide switch action when the
test weight (not included) drops.

ADJUSTABLE TENSION SPRINGS consisting of two coil type springs providing tension
for the movement of Trip Plate.

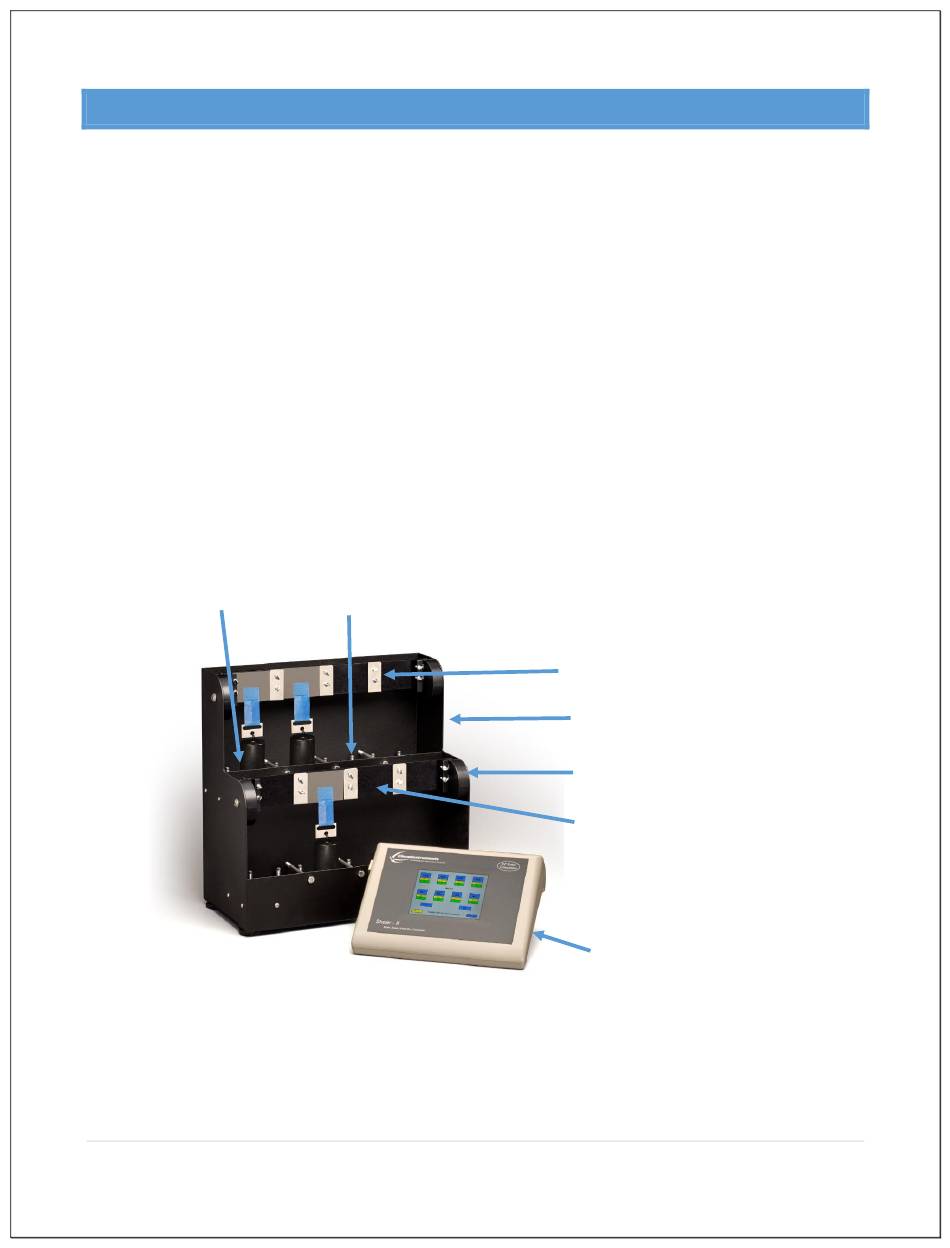

Trip Plate
Static Shear Tester Operating Instructions (SS-RT-10, SS-HT-8, SS-HT-30)
Adjustable Tension Springs
Shear Panel Holder
Shear Bank
Panel Rack Mounting Drum
Panel Rack
Timer Box
