TEST DATA



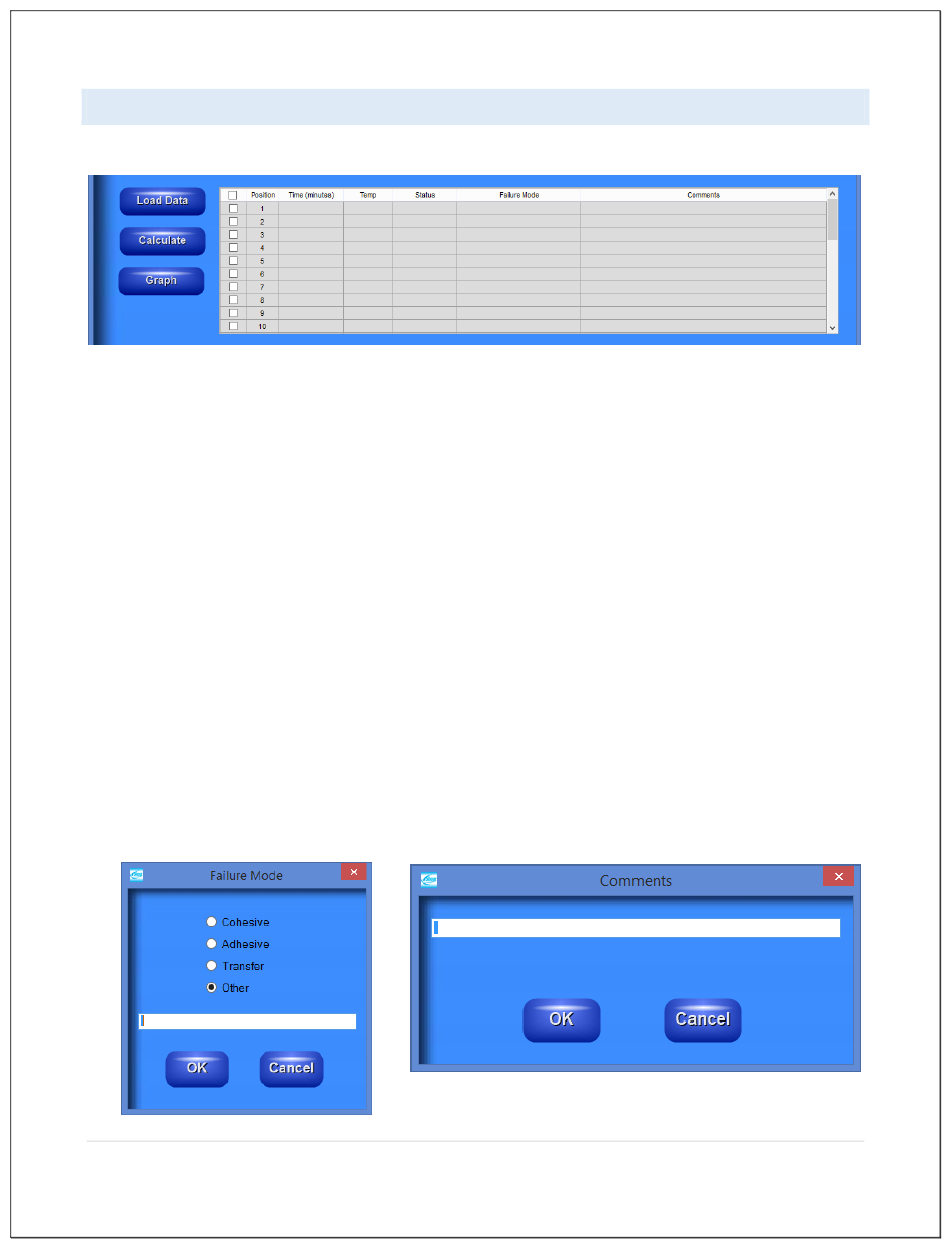

LOAD DATA – Click to load the test data from the Shear Tester.

CALCULATE – Click to calculate the selected positions desired for statistics and graph.

GRAPH – Displays a graph of the selected positions.

DATA TABLE – Changes the screen back to the Data Table from the graph.

ZOOM – Displays an enlarged version of the graph.

□ – Click to select/unselect all positions. Click the box next to an individual position to
select/unselect individual positions. Selected positions will be used in calculations and
graph.

POSITION – Displays the position of the test on the Shear Bank.

TIME (MINUTES) – Displays the duration of the test in minutes.

TEMP – ONLY IF OPTIONAL THERMOCOUPLE IS PURCHASED. Displays the
temperature recorded at the completion of the test. If no thermocouple is being used for
testing, the field will display NA.

STATUS – Indicates if a test is COMPLETED or RUNNING.

FAILURE MODE – Enter your own failure mode or choose from the preselected list and
click OK or hit the Enter key.

COMMENTS – Enter a comment and click OK or hit the Enter key.
