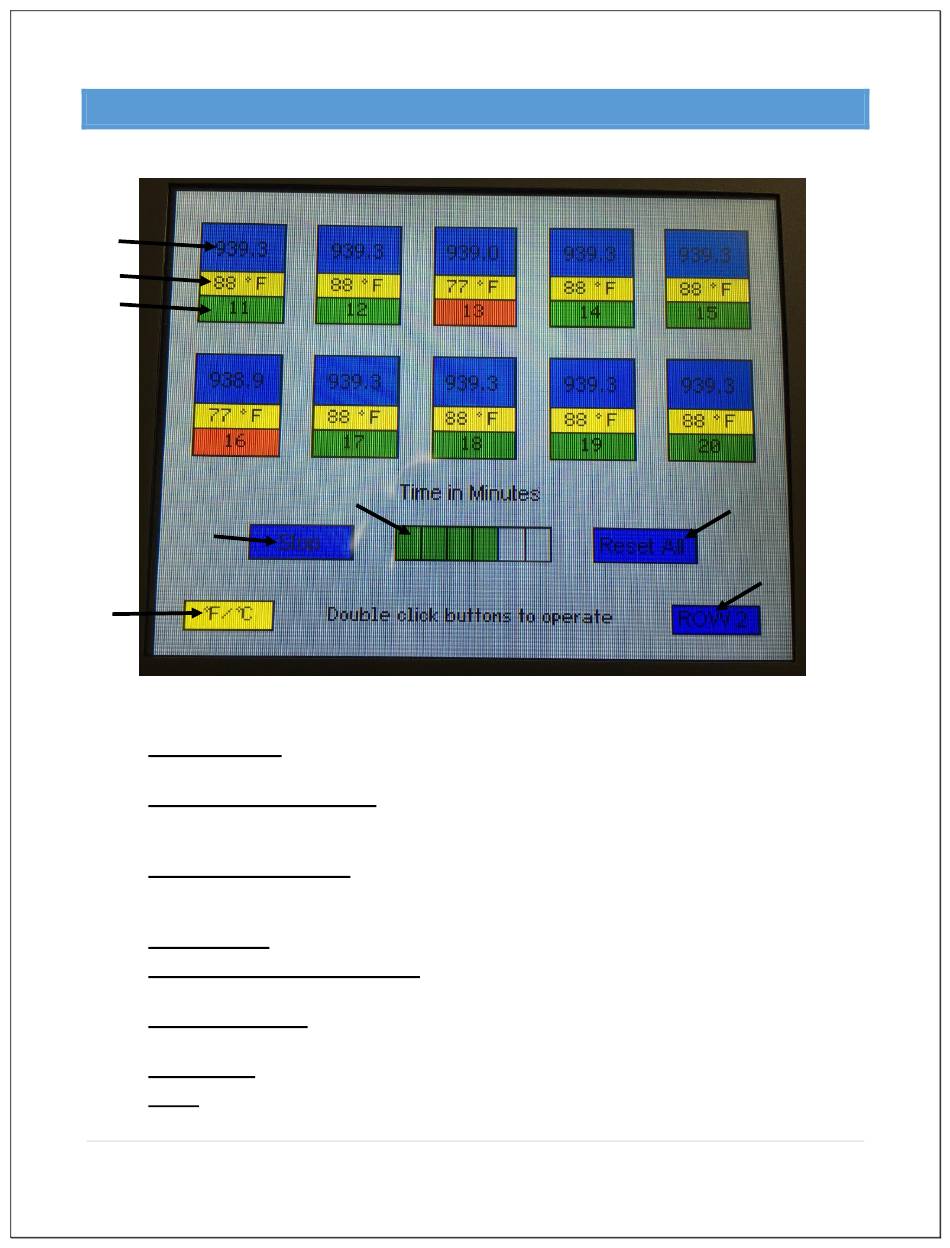

TIMER BOX SCREEN

1
2
3
4
5
1. TIME DISPLAY: Displays time in minutes. Double clicking a Test Bank's Time Display
will reset the time to zero for that Test Bank. Maximum time value is 99,999 minutes.
2. TEMPERATURE DISPLAY: ONLY IF OPTIONAL THERMOCOUPLE IS PURCHASED.
Displays the current temperature during testing. Once a test has ended, the temperature
recorded at the end of the test will be displayed.
3. TEST BANK POSITION: Indicates the Test Bank position. The field is green during
testing to show a test is in progress. Once a test is completed, the field will turn red to
show the test is over.
4. START/STOP: Starts or Stops a test.
5. TEMPERATURE CONVERSION: Only displays if using the OPTIONAL
THERMOCOUPLE. Converts temperature display from Fahrenheit to Celsius.
6. TIME IN MINUTES: Cells light up every second, in succession, to indicate the timer is
counting.
7. RESET ALL: Resets all Time Displays to zero.
8. ROW: Button only appears on the SS-HT-30 model. Scrolls between rows 1, 2 & 3 of the
Shear Bank.
Static Shear Tester Operating Instructions (SS-RT-10, SS-HT-8, SS-HT-30)
6
7
8
8 | P a g e
