SAFETY INSTRUCTIONS Carefully read the Instruction manual! If instructions are not followed, there is a risk of injury, damage of the appliance and loss of the right to free warranty service. We recommend to keep the Instruction manual the whole time you have the appliance.
IF THE APPLIANCE IS PRODUCED WITH THE SPECIAL SUPPLY CORD IT CAN BE EXCHANGED ONLY BY THE SAME SPECIAL SUPPLY CORD PROVIDED BY THE MANUFACTURER. TO AVOID HAZARDS, DAMAGED POWER SUPPLY CORDS SHOULD BE REPLACED ONLY BY THE MANUFACTURER, A MAINTENANCE TECHNICIAN, OR A PERSON WITH AN EQUIVALENT QUALIFICATION.
government authorities, the shop where you bought the appliance or the manufacturer’s representatives. If you decided to scrap the appliance, make it impossible to use in order to prevent possible misadventure. Pull out the electric plug from the electricity supply socket and then cut off the cord.
Page 5
Product data sheet Data according to requirements of standard EN ISO 23953-2:2005 Model CD480 Total gross volume, L Refrigerator net volume , L External overall dimensions (H/W/D), mm: for installation with the shield 202,5 / 60 / 73 for installation without the shield...
Page 6

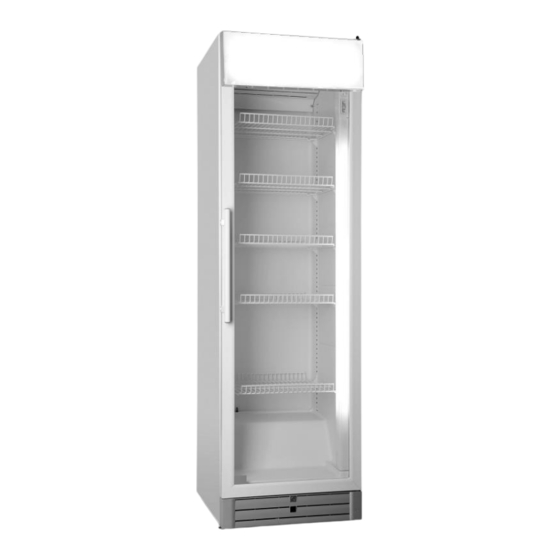

DESCRIPTION OF THE APPLIANCE, BASIC PARTS Blower Thaw water channel cleaner Thermostat knob Promotional shield * Blower switch Interior light Double switch -(ON/OFF) Supply cord Thermometer* Thaw water drip tray Adjustable height shelves REMARK. The promotional shield is optional and must be ordered specially.
REVIEW OF MECHANICAL CONTROL (see Fig.1) 2 ― Thermostat knob. Connecting the appliance plug to the socket and setting the thermostat knob 2 to any position except for „0“, the appliance starts cooling (a compressor and a blower run). Turning the thermostat knob clockwise the temperature in the appliance lowers. 3 ―...
POSITIONING Place the appliance in a dry, well ventilated room. • WARNING! The appliance should not be operated in an unheated room or porch. Place the appliance away from heat sources such as kitchen stove/oven, radiators, or direct sunlight. WARNING! The appliance must not touch any pipes for heating, gas or water supply or any other electrical devices.
DEFROSTING The refrigerator compartment defrosts automatically. Drops of ice that form on the back wall of the refrigerator compartment thaw during the time the compressor is not working and the thaw water runs down the thaw water runoff channel to the tray on top of the compressor, where it evaporates.
CHANGING THE INTERIOR LIGHT BULB Turn off the appliance and pull the plug out of the • electricity supply socket. Unscrew the screw 1 and unlink the back wall of the • cover 2 from the metal bracket 3 along all cover length in the direction D (fig.
Page 11
1. Unscrew four fixing screws 2 of the promotional shield 1 and remove the shield; 2. In the front part unscrew two fixing screws 4 of holders 5 of the connection cable of the promotional shield; 3. In the back part unscrew four screws 21, remove the cover 22 and disconnect the supply plug 23 of the connection cable;...
Page 12
6. Unscrew fixing screws 14 of the bottom grid 19 and remove the grid by unlinking grid hooks from the cabinet. The lock cam 17 must be in a horizontal position; 7. Remove the cover 18 on the left of the grid to the opposite side; 8.
WARRANTY SERVICE IF YOUR APPLIANCE IS NOT WORKING PROPERLY, ASCERTAIN WHETHER YOU CAN REMEDY THE CAUSE OF THE FAULTY FUNCTIONING OF THE APPLIANCE YOURSELF. If you cannot solve the problem yourself, contact the nearest refrigerator service representative by telephone or in writing. When making contact necessarily indicate the refrigerator model 1 and number 2.
