SAFETY INSTRUCTIONS CAREFULLY READ THE INSTRUCTION MANUAL. If instructions are not followed, there is a risk of injury, damage of the appliance and loss of the right to free warranty service. We recommend to keep the Instruction manual the whole time you have the appliance.
Page 3
as aerosol cans with a flammable propellant. It is prohibited to store petrol and other flammable liquids near the appliance. – CONNECTION TO THE MAINS The appliance should only be connected to an earthed socket installed in – accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label.
IF THE APPLIANCE IS OUT OF ORDER AND IT IS NOT POSSIBLE TO REPAIR IT BY MEANS OF GIVEN RECOMMENDATIONS, UNPLUG IT, OPEN THE DOORS AND CALL THE SERVICE EXPERT. ONLY A SERVICE REPRESENTATIVE CAN REMEDY ALL TECHNICAL OR CONSTRUCTION FAULTS. ENVIRONMENTAL PROTECTION INFORMATION This symbol indicates that once the appliance is no longer needed, it cannot be disposed together with other miscellaneous municipal waste.
Page 5
Product data sheet Modell F 27FG Category Freezer Energy efficiency class Annual energy consumption, kWh/annum Actual consumption will depend on how the appliance is used and where it is located Freezer net volume, L Frost-free Temperature rise time Freezing capacity, kg / 24 h...

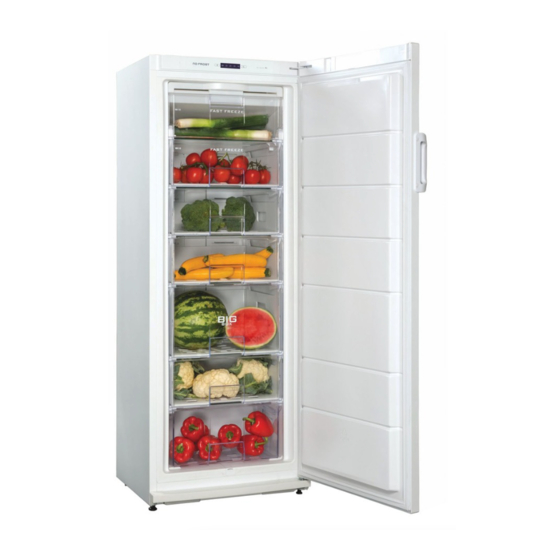

DESCRIPTION OF THE APPLIANCE, BASIC PARTS (fig. 1) 1 Control panel 4 Glass shelf 2 FAST FREEZE sections 5 Condenser 3 Frozen products sections 6 Compressor PREPARING THE APPLIANCE FOR OPERATIO It is recommended to prepare the appliance for operation with a helper. Remove package.
Page 7
Take two supports 1 from the bag and insert • them into the guides 2 at the top back part of the appliance (see picture). If the appliance is brought in from the cold • (temperature is not higher than +12 °C), you should wait for two hours before connecting it to the mains.
REVIEW OF ELECTRONIC CONTROL TEMPERATURE REGULATION When connecting the appliance to the mains for the first time, the blue temperature indicating segment lights up at -18 (factory temperature setting -18 °C, but you can select the preferred temperature according to your needs). ...
Page 9
. The FAST FREEZE function is activated by tapping button 3 marked with the “S“ symbol. When the FAST FREEZE function is on, the white segment in the centre of the button is on. The FAST FREEZE function automatically shuts off after 26 hours or when a temperature below –18 °C is achieved.
CLEANING AND CARE REGULARLY CLEAN THE APPLIANCE. Remember that before defrosting the freezer compartment and cleaning the back part of the appliance body you must disconnect the appliance from the electrical energy supply socket by pulling the plug out of the electricity outlet. Protect the appliance inner surfaces and plastic parts from fats, acids and sauces.
Page 11
2. Remove the covers c from the body of the refrigerator and of the inner side of the door. Also remove the upper bracket 6 together with the nut and washers and the spacer under the bracket. 3. Remove the door of the freezer compartment. 4.
Page 12
OPERATION PROBLEMS AND THEIR SOLUTIONS (TROUBLESHOOTING). What if … The appliance is plugged in to the mains but it does not work and the • electricity supply voltage indicator is not illuminated. Check that your house electricity supply installations are in order. Check that the plug is correctly inserted into the electricity supply socket.
WARRANTY SERVICE IF YOUR APPLIANCE IS NOT WORKING PROPERLY, ASCERTAIN WHETHER YOU CAN REMEDY THE CAUSE OF THE FAULTY FUNCTIONING OF THE APPLIANCE YOURSELF. If you cannot solve the problem yourself, contact the nearest refrigerator service representative by telephone or in writing. When making contact necessarily indicate the refrigerator model and number.
