I N S T R U C T I O N S
Type OSA4-10
67027E 07/16 (LOA)
English

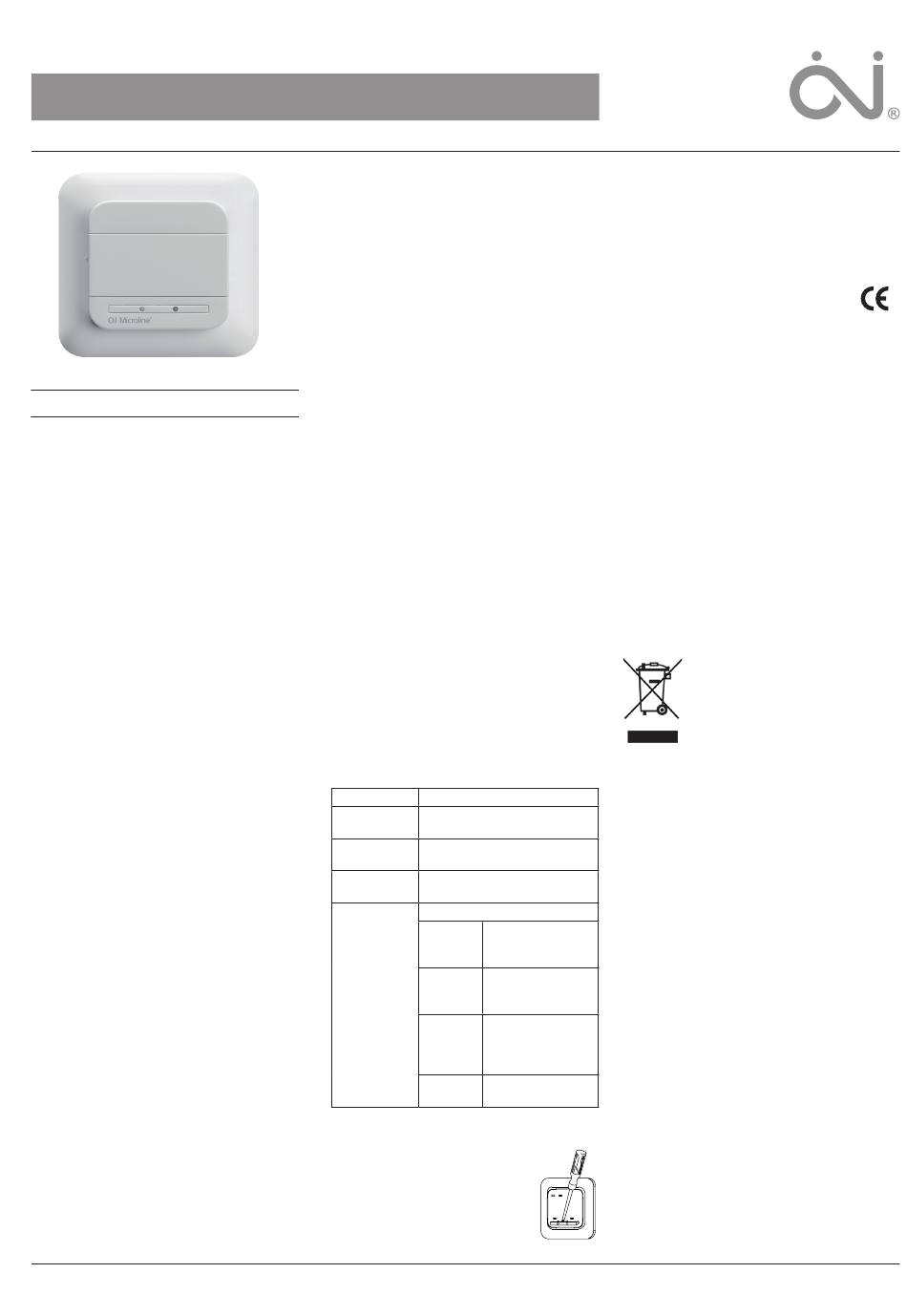

RELAY MODULE FOR CS4
TM
Relay module for controlling electric heating
panels, etc., featuring night setback, frost pro-
tection and floor sensing thermostat mode.
Only for use in combination with the Central
Controller for wireless communication.
PRODUCT PROGRAMME
OSA4-10 Relay module incl. mount-
ing box
OSC4/MCS4-10 Central Controller incl.
floor sensor
WARNING – Important Safety Instructions
Disconnect the power supply before carrying
out any installation or maintenance work on this
unit and associated components. This unit and
associated components should only be installed
by a competent person (i.e. a qualified electri-
cian). Electrical installation must be in accord-
ance with appropriate statutory regulations
INSTALLING THE RELAY MODULE
The Relay module is designed for flush mount-
ing in a wall socket or in the accompanying
mounting box.
Fig. 1:
1. Slide the power button down to Off "0".
2. Release the front cover ONLY by inserting a
small screwdriver into the hole on either side
of the Relay module.
Fig. 2, 2a eller 2b:
3. Connect the wires in accordance with the
diagram.
4. Mount the unit in a wall socket or the accom-
panying mounting box.
5. Fit the frame and carefully press the cover
onto the Relay module. Ensure that both
the power slide button on the cover and the
power switch pin are down.
DO NOT open the Relay module by releasing
the four fixing clips on the back.
APPLICATION
The relay module can be used for three different
control types: Night setback, Frost protection or
with an external floor sensor.
Fig. 2: Night setback
Connect the heating panel to terminal 4. The
relay module sets the heating panel in setback
mode according to the time programmed in the
4-event time schedule from the Central Control-
ler (most heating panels have a built-in "night
setback input-connector").
Fig. 2a: Frost protection
Short-circuit terminals 5 and 6 to set the relay
module to frost protection.
The relay module enters frost protection mode
and uses the built-in room sensor to maintain
the frost protection temperature.
In frost protection mode, the relay module
ensures that the heating panel maintains the
setpoint set on the Central Controller.
Fig. 2b: Thermostat with external sensor
Connect a floor sensor to terminals 5 and 6.
Now the relay module works as a thermostat
controlling the heating according the floor
temperature.
The relay module controls the temperature ac-
cording to the 4-event time schedule from the
Central Controller.
MOUNTING THE RELAY MODULE
The accompanying mounting box makes it
easy to mount the Relay module on the wall.
Draughts and direct sunlight or other heat
sources must be avoided.
Fig. 3:
Observe the minimum distance of 0,5m, from
large metal surfaces, electronic equipment,
electric motors, etc.
Fig. 3a:
To ensure good signal transmission the unit
should be mounted as high as possible.
The unit should be mounted min. 0,5m above
the floor, away from the heating source, in such
a way that the unit is unaffected by the floor
heat.
Fig. 3b:
To ensure good wireless transmission without
interference, all wireless units in the Comfort
System CS4 should always be placed with
TM
min. 1,0m between them.
SETTINGS
See user manual for CS4 for further options
TM
and how to plan you system.
LED READOUTS
Green ON: Power ON, Relay module OK.
Green flashes Connection sequence in
quickly: progress
Green flashes No connection to Central
slowly: Controller
Red ON: Relay ON, power to heating
source
Red flashes Error code
quickly:
1 flash E1: Internal sensor
2 flashes E2: External sensor
5 flashes E5: Internal
6 flashes E6: Communica-
FACTORY RESET
Allows factory settings to be re-
stored and cancels the connection
to the Central Controller.
1. Remove the cover by inserting
a small screwdriver into the hole
on one side of the thermostat.
2. Now hold the screwdriver on
© 2016 OJ Electronics A/S
the contact points under the LEDs.
Hold it until both LEDs flash three times. The
relay module has now been reset.
3. Mount the cover and turn the power off and
on again. The relay module will now connect
to the Central Controller.
CERTIFICATION
OJ Electronics A/S hereby declares that
the product conforms with the following
Directives of the European Parliament and
of the Council:
LVD, EMC, R&TTE, RoHS and WEEE
Applied standards
Please see the document "EC DECLARATION OF
CONFORMITY" in the back.
CLASSIFICATION
The product is a Class II device (enhanced insu-
lation) and must be connected in the following
way:
Term. 1:
Term. 2:
Term. 3-4: Load, max. 16 A / 3600 W
Term. X:
Term. 5-6: Night setback, frost protection or
ENVIRONMENT AND RECYCLING
Please help us to protect the environment by
disposing of the packaging in accordance with
national regulations for waste processing.
RECYCLING OF OBSOLETE APPLIANCES
TECHNICAL DATA
Voltage .......................... 230 V AC ±10 % 50 Hz
Max. pre-fuse .............................................. 16 A
Built-in circuit breaker .................... 2-pole, 16 A
Output relay ............ Make contact - SPST - NO
Output ............................... Max. 16 A / 3600 W
Control principle ................................... PWM/PI
Stand-by power ........................................... 1 W
RF frequency band ...............................868 MHz
RF transmission range ..... 100 metres/open field
Frost protection ..................................+5/+10 °C
Ambient operating temperature ..........+0/+25 °C
Pollution degree ............................................... 2
defective or Overvoltage ...............................................Cat. II
short-circuited.
Rated impulse voltage ................................ 4 kV
Enclosure rating ........................................ IP 21*
Dimensions ..................... H/81, W/81, D/40 mm
defective or
Mounting depth ...................................... 20 mm
short-circuited
EU Registered Design ........ 001101349-0001/2
Automatic action type 1
overheating.
Inspect the
* IP 21 applies only to front with cover after
installation.
mounting in a flush box
tion error
The relay module is maintenance free.
OJ ELECTRONICS A/S
Stenager 13B · DK-6400 Sønderborg
Tel: +45 73 12 13 14 · Fax: +45 73 12 13 13
oj@ojelectronics.com · www.ojelectronics.com
Neutral (N)
Phase (L) 230 V ±10 %, 50/60 Hz
Do not connect
external floor sensor
Appliances with this label must not be
disposed of with general household
waste. They must be collected
separately and disposed of in
compliance with local regulations.
