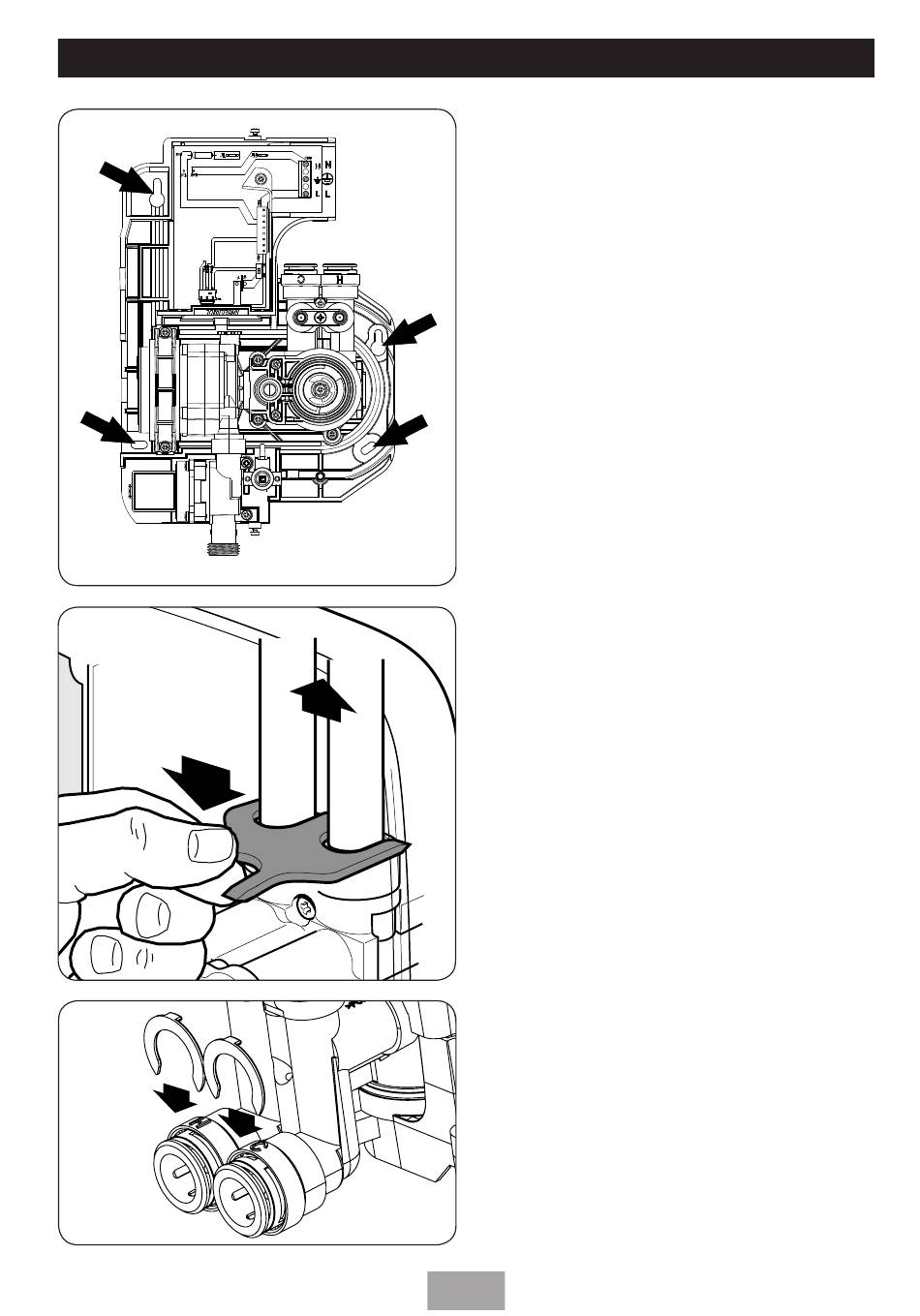

Using the backplate as template, mark the
Fig.14
positions for the four wall fixing holes (fig.14).
Using the pipe removal tool supplied, push
back and hold the collets from the pipework to
disengage the pipework from the inlets (fig.15).
Remove the unit from the wall.
Drill and plug the wall using the appropriate
drill and fixings for the wall type (i.e. brick,
plasterboard)
Note: If fitting rising supplies to the unit, ensure
debris does not enter the pipes when drilling the
wall.
Offer the backplate unit back up to the
completed pipework and again manoeuvre so
that the end of the pipes fully enter into the
inlet fittings.
Check the backplate is square and the fixing
holes are aligned and secure to the wall.
Once the backplate is secured, add retaining
clips to hot and cold inlets as shown in fig.16.
This will prevent pipes from moving by locking
the push fit collets.
