Summary of Contents for Triton Zante 3

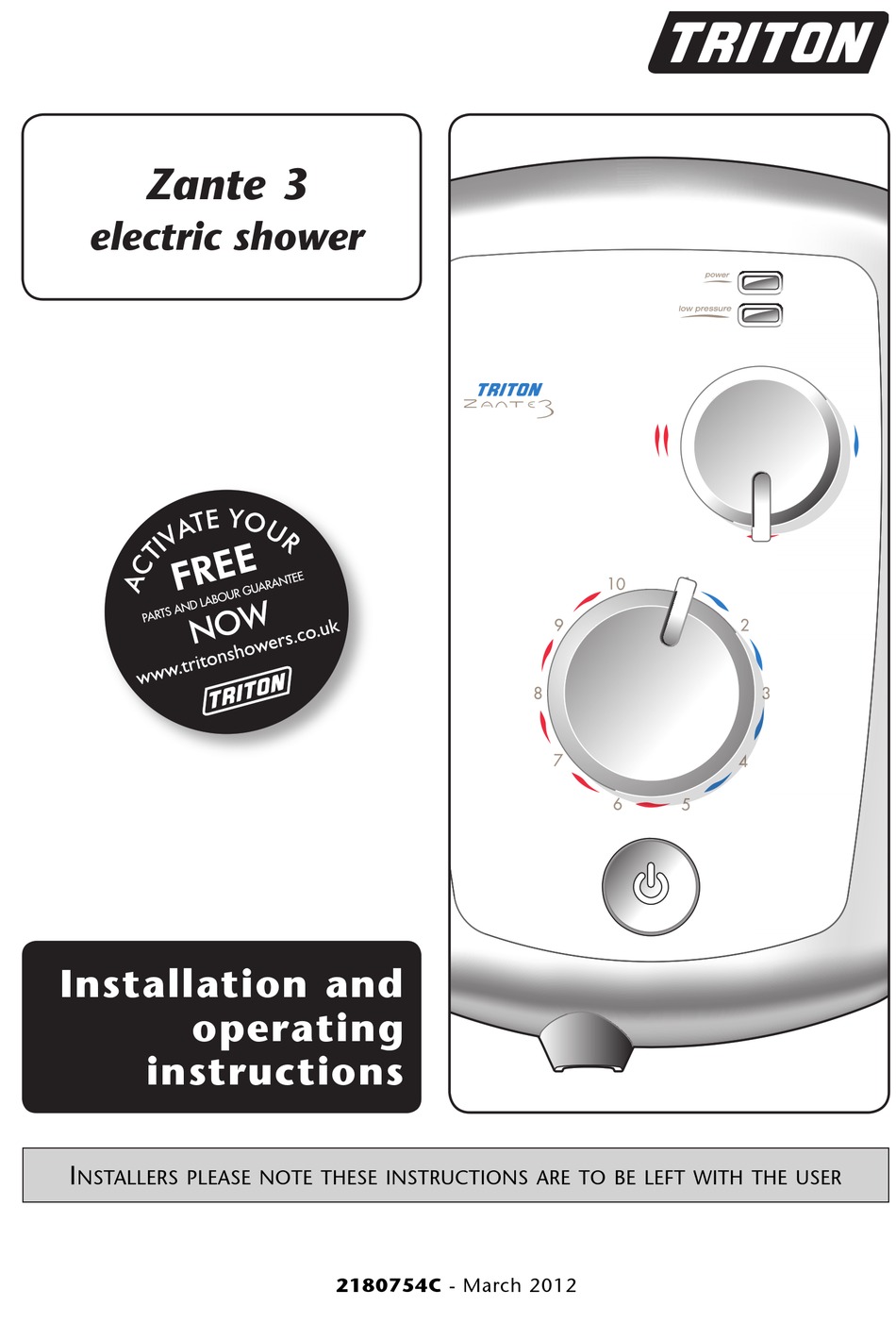

- Page 1 Zante 3 electric shower Installation and operating instructions nstallers please note these InstructIons are to be left wIth the user 2180754C - March 2012...
-
Page 2: Table Of Contents
Children may not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. -
Page 3: Important Safety Information
Zante 3 PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out before using. -
Page 4: Introduction
ADVICE TO USERS This book contains all the necessary fitting and IMPORTANT: When first installed the unit operating instructions for your Triton electric will be empty. It is essential the unit should shower. Please read them carefully. contain water before the elements are The shower installation must be carried out by a switched on. -
Page 5: Main Components
Zante 3 MAIN COMPONENTS Fig.1 Inside unit (fig.1) Top cable entry Bottom pipe entry Rear pipe entry area Rear cable entry area Wall screw fixing Terminal block 299mm Power selector Stabilising valve Solenoid valve 10. Guide pockets Inlet 11. Can and element assembly 12. -
Page 6: Electrical Requirements
Zante 3 ELECTRICAL REQUIREMENTS Fig.3 Triton Showers, Triton Road, Nuneaton, Warwickshire, CV11 4NR WARNING! W-006-A xxxx THIS APPLIANCE MUST BE EARTHED The installation, supply cable and circuit protection must conform with BS 7671 (IEE wiring regulations) and be sufficient for the amperage required. - Page 7 Zante 3 A 45 amp double pole isolating switch with 9.3 In any event, it is essential that individual a minimum contact gap of 3 mm in both site conditions are assessed by a competent poles must be incorporated in the circuit.
-
Page 8: Water Requirements
Zante 3 WATER REQUIREMENTS Mains electric supply (via double pole switch) The installation must be in accordance with Water Regulations/Bylaws. To guarantee activating the heating elements, the shower must be connected to a mains water Double supply with a minimum running pressure of pole 100kPa (1.0 bar) at a minimum flow rate of nine... -
Page 9: Siting Of The Shower
Zante 3 SITING OF THE SHOWER WARNING! IMPORTANT: If installing onto a tiled wall The shower MUST NOT be positioned always mount the unit on the surface of the where it will be subjected to freezing tiles. NEVER tile up to the unit. -
Page 10: Fitting The Shower To The Wall
Zante 3 FITTING THE SHOWER TO THE WALL Fig.7 WARNING! Check there are no hidden cables or pipes before drilling holes for wall plugs. Use great care when using power tools near water. The use of a residual current device (RCD) is recommended. - Page 11 Zante 3 If surface cable entry from the top is required Fig.10 then a small area will need to be cut out in the backplate (fig.10). If installing a feed pipe from the rear or bottom, the centre of the inlet valve to the wall surface is 21mm (fig.11).
-
Page 12: Plumbing Connections
Zante 3 PLUMBING CONNECTIONS WARNING! Plumbing to be carried out before wiring The outlet of the shower acts as a DO NOT use jointing compounds on any pipe vent and must NOT be connected to fittings for the installation. anything other than the hose and DO NOT solder fittings near the shower unit showerhead supplied. -
Page 13: Electrical Connections
Zante 3 ELECTRICAL CONNECTIONS Fig.13 SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAINS. Fig.13 shows a schematic wiring diagram. The cable entry points are shown in fig.1. The cable can be surface clipped, hidden or via 20mm conduit. Note: Conduit entry can only be from rear. -
Page 14: Replacing The Cover
Zante 3 REPLACING THE COVER Fig.15 Refit the trimplate. Turn the POWER selector spindle clockwise to the position shown in Position flat Power selector on right face fig.15. spindle of spindle Turn the stabiliser valve spindle fully clockwise until resistance is felt (fig.16). -
Page 15: Commissioning
Zante 3 COMMISSIONING Fig.20 WARNING! Before normal operation of the shower, it is essential the following commissioning procedure is completed correctly. IMPORTANT: The first operation of the shower is intended to flush out any remaining unit debris, and to make sure the heater unit contains water before the elements are switched on. -
Page 16: Operating The Shower
Zante 3 OPERATING THE SHOWER Fig.22 WARNING! Before normal operation of the shower, it is essential that the commissioning procedure has been completed correctly. To start the shower Press the START/STOP button and water will flow. To stop the shower Fig.23... -
Page 17: Operating The Shower
Zante 3 To adjust the shower temperature WARNING! The water temperature is altered by increasing After any servicing of mains water or decreasing the flow rate of the water through the shower via the temperature control supply, always make sure the unit is (fig.23). -
Page 18: Operating Functions
Zante 3 OPERATING FUNCTIONS Fig.24 Power on indicator (fig.24) When the electricity supply to the shower is Power switched on at the isolating switch, the neon indicator light power indicator will light. Low pressure indicator (fig.24) If this indicator lights, this means the water... -
Page 19: Cleaning The Inlet Filter
Zante 3 INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY CLEANING THE INLET FILTER Fig.25 It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower. It is essential that this operation is carried out by an installer or service engineer. -
Page 20: Spare Parts
Zante 3 SPARE PARTS Ref. Description Part No. Power selector including S12121011 microswitches Terminal block & outlet S12721003 pipe assembly Thermal cut-out 22011180 Heater can assembly 8.5kW P12120701 9.5kW P12120702 Stabiliser valve/solenoid P12120806 assembly PRD & ‘O’ ring 82800450 Inlet pipe assembly... -
Page 21: Fault Finding
Zante 3 FAULT FINDING IMPORTANT: Switch OFF the electricity at the mains supply and remove the circuit fuse before attempting any fault finding inside the unit. Problem/Symptom Cause Action/Cure 1. Shower 1.1 Interrupted power 1.1.1 Blown fuse or circuit breaker. Check inoperable, no water supply. -
Page 22: Fault Finding
When fitting a new PRD, follow the commissioning procedure. It is advised all electrical maintenance/repairs to the shower should be carried out by a suitably qualified person. In the unlikely event of a fault occurring please contact Triton Customer Service. Do not remove the shower from the installation. - Page 23 Entry Points WEEE Directive – Policy Statement As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and the compliance with the WEEE directive. Triton Showers is fully registered with the Environment Agency under the following schemes:...
- Page 24 Triton is a division of Norcros Group (Holdings) Limited E-mail: serviceenquiries@tritonshowers.co.uk Extended Warranty AVAILABLE NOW. Call 0844 980 0740 for more details. TRITON reserve the right to change product specification without prior notice. E&OE. © TRITON SHOWERS 2013 4-12-2012 - 2 yr elec...
