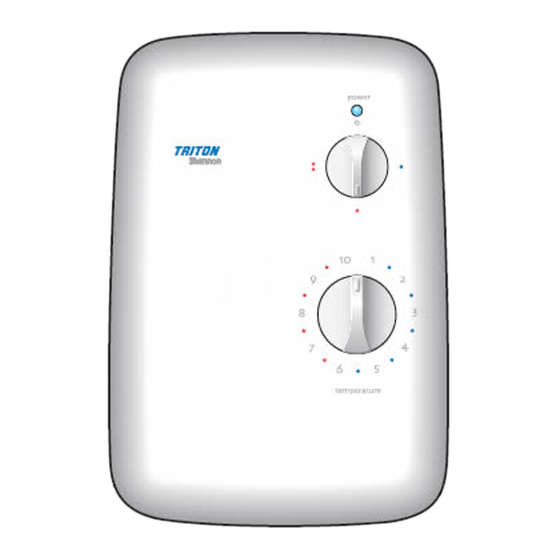

Summary of Contents for Triton Shannon
- Page 1 Shannon electric shower Installation and operating instructions T00310 nstallers please note these InstructIons are to be left wIth the user 2180424F July 2009...
-
Page 2: Table Of Contents
Instructions for installers and service engineers only ...... 17 Spare parts .................18 - 19 Fault finding ................20 - 21 Guarantee, service policy, etc...........rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: 0844 980 0730... -
Page 3: Important Safety Information
Shannon electric shower PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out ... -
Page 4: Introduction
ADVICE tO uSERS This book contains all the necessary fitting and IMPORTANT: When first installed the unit operating instructions for your Triton electric will be empty. It is essential the unit should shower. Please read them carefully. contain water before the elements are... -
Page 5: Main Components
Shannon electric shower MAIN COMPONENTS MAIN COMPONENtS Fig. Inside unit (fig.) top cable/pipe entry Wall screw fixings Cover screw fixings thermal safety cut-out Power selector assembly Can and element assembly Pressure switch/flag assembly Stabilising valve terminal block 10. Earth connection 11. -
Page 6: Electrical Requirements
9kW, it is advisable to contact the local electricity supply company. Shannon electric shower 1.1 The electrical rating of the shower is shown on the rating label (Fig.3) within the unit. ELECTRICAL REQUIREMENTS Before making any sort of electrical... - Page 7 5.1 A 30mA residual current device (RCD) must be installed in all UK electric and pumped provided by the shower, use the shortest Shannon electric shower shower circuits. This may be part of the cable route possible from the consumer unit consumer unit or a separate unit.
-
Page 8: Water Requirements
Shannon electric shower WATER REQUIREMENTS WAtER REquIREMENtS The installation must be in accordance with Water Regulations/Bylaws. Mains electric supply To ensure activation of the heating elements, the (via double pole switch) shower must be connected to a mains water supply with a minimum running pressure of 100kPa (1.0 bar) at a minimum flow rate of nine... -
Page 9: Siting Of The Shower
Shannon electric shower SITING OF THE SHOWER SItING OF tHE SHOWER WARNING! FOR EASE OF SERVICING, THE UNIT MUST The shower must not be positioned W-008-A ALWAYS BE MOUNTED ON THE SURFACE OF where it will be subjected to freezing TILED WALLS. -
Page 10: Fitting The Shower To The Wall
Shannon electric shower FITTING THE SHOWER TO THE WALL FIttING tHE SHOWER tO tHE WAll Fig. WARNING! Check there are no hidden cables or pipes before drilling holes for wall W-005-A plugs. Use great care when using power tools near water. The use of a residual current device (RCD) is recommended. - Page 11 Shannon electric shower leaving the base of the screw head protruding 6 mm out from the wall. Fig.9 Hook the backplate over the bottom screw and fit the top fixing screw into position. DO NOt fully tighten the screws at this stage,...
-
Page 12: Plumbing Connections
Shannon electric shower PLUMBING CONNECTIONS PluMBING CONNECtIONS WARNING! Plumbing to be carried out before wiring. The outlet of the shower acts as a W-004-A vent and MUST NOT be connected to DO NOt use jointing compounds on any pipe anything other than the hose and fittings for the installation. -
Page 13: Electrical Connections
Shannon electric shower ELECTRICAL CONNECTIONS ElECtRICAl CONNECtIONS Fig. SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAINS. Fig. shows a schematic wiring diagram. The cable entry points are shown in (fig. ). The cable can be surface clipped, hidden or via 20 mm conduit. -
Page 14: Replacing The Cover
Shannon electric shower REPLACING THE COVER REPlACING tHE COVER Fig. the power selector spindle must be aligned as shown (fig.). to check that the temperature control is correctly positioned on the stabilising valve, temporarily place the cover in position so that the splines engage and rotate the temperature control fully anti-clockwise. -
Page 15: Commissioning
Shannon electric shower COMMISSIONING COMMISSIONING Fig. WARNING! Before normal operation of the W-001-A shower, it is essential the following commissioning procedure is completed correctly. the first operation of the shower is intended to flush out any remaining unit debris, and to guarantee that the heater unit contains water before the elements are switched on. -
Page 16: Operating The Shower
Shannon electric shower OPERATING THE SHOWER OPERAtING tHE SHOWER Fig. WARNING! Before normal operation of the W-001-A shower, it is essential the following Power commissioning procedure is completed selector correctly. to start the shower turning the power selector to the red or blue symbol positions will start the flow of water. - Page 17 Shannon electric shower performance throughout the year. temperature WARNING! adjustment at this setting is via the temperature After any servicing of mains water control. supply, always flush out the pipework W-002-A to adjust the shower temperature to remove any debris.
-
Page 18: Operating Functions
Shannon electric shower OPERATING FUNCTIONS OPERAtING FuNCtIONS Fig. Power on indicator (fig.) When the electricity supply to the shower is switched on at the isolating switch, the ‘POWER’ Power on indicator will light. indicator Low water pressure cut-out If the water pressure falls below the minimum... -
Page 19: Instructions For Installers And Service Engineers Only
Shannon electric shower INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY INStRuCtIONS FOR INStAllERS AND SERVICE ENGINEERS ONlY CLEANING THE INLET FILTER ClEANING tHE INlEt FIltER Fig. It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower. -
Page 20: Spare Parts
Shannon electric shower SPARE PARTS SPARE PARtS Ref. Description Part No. 1. Can assembly 8.5kW P84500520 2. terminal block 22011410 3. Switching module assembly c/w actuator & microswitches 82500210 4. Solenoid valve assembly 83300450 5. thermal cut-out (main) 22009860 6. Stabiliser valve assembly 82600550 7. -
Page 21: Spare Parts
Shannon electric shower SPARE PARTS Ref. Description Part No. 12. Hose retaining ring 7052252 13. Flexible hoses are available in the following sizes: 1.00 m in white, chrome and gold 1.25 m in white, chrome and gold 1.75 m in chrome only... -
Page 22: Fault Finding
See 'Water too hot' causes 2.1, 2.2 and cycling hot/cool at on outlet 2.3 and their appropriate action/cures. If intervals. thermal cut-out. it continues, contact Triton Customer Service. Water too cool or Too much flow. 4.1.1 Reduce flow rate via temperature control. - Page 23 Renew or reset fuse or circuit breaker. If it fails again, consult a X-003-A qualified electrician. FAULT FINDING Electrical 4.5.1 Have unit checked by suitably qualified malfunction or electrician or contact Triton Customer Problem/Symptom Cause Action/Cure safety cut-out Service. operated. Shower varies from Water pressure 5.1.1...
- Page 24 Shannon electric shower...
- Page 25 Shannon electric shower...
- Page 26 Shannon electric shower...
- Page 27 Shannon electric shower...
-
Page 28: Service Policy
01 628 6845 Triton Road Earthridge International Ltd Nuneaton Warwickshire CV11 4NR Maynooth Triton is a division of Norcros Group (Holdings) Limited Co. Kildare. 29-5-2009 TRITON reserve the right to change product specification without prior notice. E&OA. © TRITON SHOWERS 2009...
