Summary of Contents for Triton AS2000XT
- Page 1 Installation and operating instructions The showerhead and hose supplied with this product are a safety critical part of your shower. Failure to use genuine Triton parts may cause injury and invalidate your guarantee. 2180404R - Oct 2017...
-
Page 2: Table Of Contents
InstructIons are to be left wIth the user To check the product suitability for commercial and multiple installations, please contact Triton’s speci cation advisory service before installation. Please see back of book for contact information. - Page 3 Aquasensation AS2000XT PLUMBING NOTES ELECTRICAL NOTES 1.1 All installations must comply with Water 2.1 The installation must comply with BS 7671 Regulations or Water Bylaws. ‘Requirements for electrical installations’ (IEE wiring regulations). Make sure the 1.2 Supply pipes must be flushed to clear incoming hot and cold water supplies to debris before connecting the shower unit.
-
Page 4: Introduction
A 30mA residual current device (RCD) MUST be installed in all UK 230V electric and pumped shower circuits. This may be part of Replacement parts can be ordered from Triton the consumer unit or a separate unit. Customer Service. See ‘spare parts’ for details and part... -
Page 5: Main Components
Aquasensation AS2000XT MAIN COMPONENTS Fig.1 1. Top pipe entry and cable entry 2. Terminal block 3. Cover screw fixing 4. Motor retaining bracket 5. Rear pipe entry and cable entry 6. Wall fixing holes 7. Pipe inlet elbow – top (contains single check valves) 8. -
Page 6: Site Requirements - Water
Aquasensation AS2000XT SITE REQUIREMENTS Fig.3 illustrates all the incorrect connections that must be avoided. Water All pipework to the shower unit must be routed The installation must be in accordance with where it remains below the level of water in Water Regulations/Bylaws and BS 6700. -
Page 7: General Installation Notes
Aquasensation AS2000XT the infill rate from the float operated valve meets 5. The unit must be mounted onto the finished the output requirements.. wall surface (on top of tiles). It is recommended that there is a minimum DO NOT tile up to the unit after fixing to of approximately 114 litres (25 gallons) of hot the wall. -
Page 8: Siting Of The Shower
Aquasensation AS2000XT SITING OF THE SHOWER Potentiometer Fig.4 (schematic view ) WARNING! The shower must not be positioned Switch where it will be subject to freezing Thermal conditions. fuse Motor IMPORTANT: If fitting to a tiled wall, always mount the unit on the surface of the tiles. -
Page 9: Removing The Cover
Aquasensation AS2000XT REMOVING THE COVER To remove the cover, first pull off the cover trim from the temperature control (fig.6) and undo the retaining screw. Pull off the temperature control. This will reveal the maximum temperature stop (fig.7). This should be left in position. - Page 10 Aquasensation AS2000XT cylinder on the opposite side of the cistern Fig.9 to the float operated valve (see fig.2). This minimises air ingress into the pipework. Plumbing options other than those outlined in these fitting instructions could impair the performance. For example, if hot and cold connections are made after draw-off points to other outlets, (eg.
- Page 11 Aquasensation AS2000XT Note: The pipe inlets contain filters. These Fig.11 should be periodically removed and cleaned in order to maintain the performance of the shower. See section ‘cleaning’ on how to access the filters. side IMPORTANT: The inlets contain check valves,...
-
Page 12: Fitting The Shower To The Wall
Aquasensation AS2000XT FITTING THE SHOWER TO THE WALL Fig.15 IMPORTANT: Before fitting the shower, make sure the pipework is flushed out to remove all debris, flux, etc. For top pipe entry or top cable entry, remove the relevant cut-outs by either breaking out or by using a knife or junior hacksaw (fig.15). -
Page 13: Electrical Connections
Aquasensation AS2000XT ELECTRICAL CONNECTIONS Fig.18 WARNING! This unit must be earthed. Isolate the supply before starting. The supply cable must conform to relevant tables in current IEE regulations. In most cases 1 mm² twin and earth will be adequate. The electrical rating of the shower is on the rating label within the unit. -
Page 14: Commissioning
Aquasensation AS2000XT COMMISSIONING Fig.20 WARNING! Before normal operation of the shower, it is essential that the commissioning and setup procedure are correctly completed. Failure to do so could cause the pump to run dry without water and invalidate your guarantee. -
Page 15: Commissioning
Aquasensation AS2000XT (cold) anti-clockwise to 6 o’clock position (hot) Fig.23 and vice versa. DO NOT force it beyond these limits. To stop the water flow, switch off the electricity supply at the isolating switch. Check for leaks in the pipework and remedy if necessary. -
Page 16: Temperature Control Spindle Setting
Aquasensation AS2000XT Replace the temperature control by push fitting Fig.25 onto the splined spindle. When fitting the temperature control, the pointer must relate to the ‘5’ on the temperature scale when the cover is fitted (fig.25). Refit the retaining screw and push fit the cover trim back into place. -
Page 17: Operating The Shower
Aquasensation AS2000XT Fig.27 OPERATING THE SHOWER Make sure all plumbing and electrical supplies are connected and switched on. To start the shower, press the Start/Stop button (fig.27). Adjust the flow control (fig.28) until the flow rate is satisfactory. For maximum flow, turn the flow control fully clockwise. -
Page 18: Adjusting The Maximum Temperature Stop
Aquasensation AS2000XT ADJUSTING THE MAXIMUM Fig.31 TEMPERATURE STOP As a safety feature the shower has a built-in maximum temperature stop to prevent you accidentally exceeding your highest desired temperature. This is set in the factory to provide a maximum temperature based on the hot and cold water supplies being 65°C and 15°C... -
Page 19: Cleaning The Filters
Aquasensation AS2000XT INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY CLEANING THE FILTERS Fig.33 Upper filter shown WARNING! Switch off the electricity supply and turn off both hot and cold water supplies to the unit before proceeding further. To remove the unit cover first pull off the cover trim from the temperature control and then remove the retaining screw. -
Page 20: Spare Parts
Aquasensation AS2000XT SPARE PARTS Ref. Description Part No. Terminal block .......22001320 Plastic inlet elbow plug x1 ..7052140 Pump & motor assembly..84000130 Link pin .........22009060 PCB unit ........7073738 Temperature valve ....83305270 Solenoid assembly ....22012190 Filter (pair) ......83305330 Cover c/w selector knob..P09430600 &... -
Page 21: Fault Finding
Aquasensation AS2000XT FAULT FINDING IMPORTANT: Switch OFF the electricity at the mains supply and remove the correct circuit fuse before attempting any fault finding inside the unit. Symptom Cause Action/Cure 1 Water too hot. 1.1 Not enough cold water 1.1.1 Turn the temperature control clockwise. -
Page 22: Fault Finding
8 Unit running 8.1 Blanking plugs not 8.1.1 Fit blanking plugs into unused inlets. erratically. fitted into unused inlets. In the unlikely event of a fault occurring please contact Triton Customer service. DO NOT remove the shower from the installation. - Page 23 Cable Entry Points WEEE Directive – Policy Statement As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and the compliance with the WEEE directive. Triton Showers is fully registered with the Environment Agency under the following schemes:...
- Page 24 fixed charge. 4. Total loss of the product due to non-availability of parts. 9. If a debt is outstanding from a previous visit, or from any other Triton 5. Compensation for loss of use of the product or purchase, Triton reserves the right to withhold service until the debt has been settled.
Need help?
Do you have a question about the AS2000XT and is the answer not in the manual?
Questions and answers

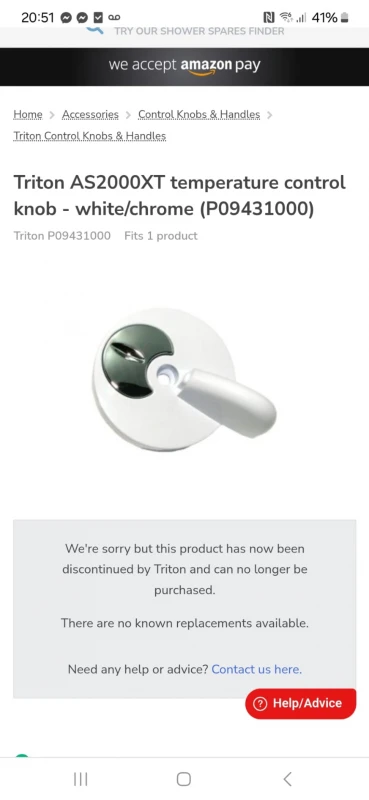

Temperature control knob AS200XT
