- Page 1 PC to Video Overlay ID# 686 Operation Manual...
- Page 2 Introduction The PC to Video Overlay system is designed to overlay PC/Graphics onto a Video signal, and can also convert a variety of VGA sources to a Video signal. It is ideal for use in applications such as video conference, home theater, video production, and business presentations.

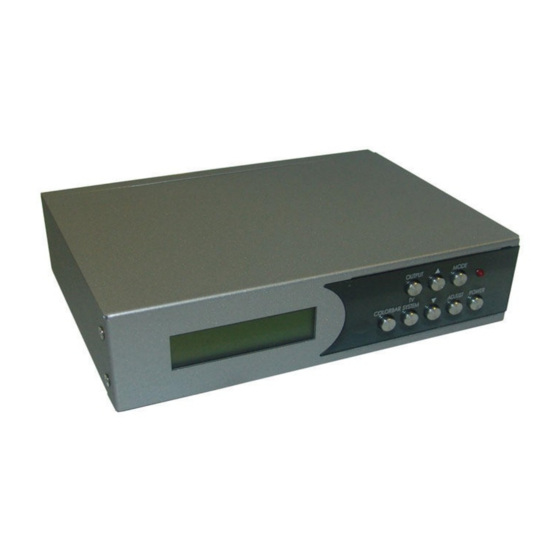

- Page 3 Operating Functions Controls Front Panel The following sections describe the hardware components of the unit. IR sender. Colorbar: The color bar test pattern can test each key function. Output: Press to select output mode. TV system: Press to select video output system. ▲...
- Page 4 Rear Panel PC input: Connect the PC input port to the PC output port. PC output (Pass through): Connect the PC output port to the display. Video/S-video input: Connect the Video/S-Video input port to the source equipment such as DVD player or set-top-box. ideo output: Connect the Video/S-Video output port to the Video/S-V display.
- Page 5 Installation and Connection Specifications S-Video Bandwidth 5.5 MHz Input Format 640 x 480 resolution up to 85Hz 800 x 600 resolution up to 85Hz 1024 x 768 resolution up to 85Hz 1280 x 1024 resolution up to 85Hz 1600 x 1200 resolution up to 60Hz NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM Input ports...
