- Page 1 HDMI to PC/HD Converter ID# 661 Operation Manual...
- Page 2 Introduction HDMI to PC/HD Converter converts Digital HDMI input to Analog PC/RGB or SD/HD output. It enables you to connect a HDMI source to an analog PC monitor, projector or TV. Its high bandwidth capability supports a wide range of PC and HDTV resolutions. Connect to your monitor via VGA or Component input for display.

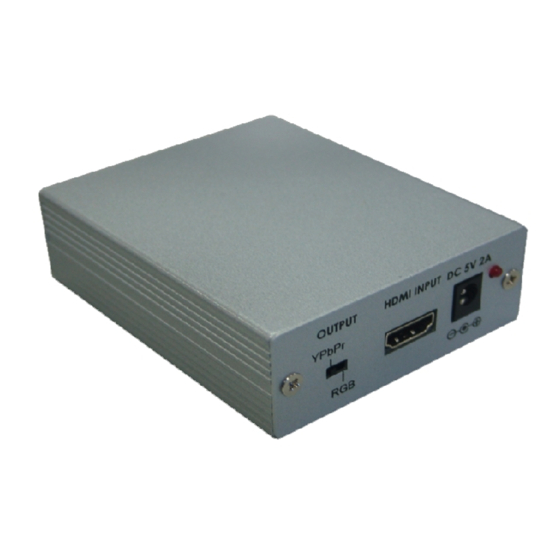

- Page 3 Operating Functions Controls Front Panel The following sections describe the hardware components of the unit. YPbPr/RGB switch: Set the switch to RGB when your HDMI source equipment is PC graphic card or other digital RGB source signal. Use HD-15 to HD-15 VGA cable to connect between the unit's RGB out and the RGB input of your PC monitor, or projector.
- Page 4 Installation and Connection HDMI Pin...
-
Page 5: Specifications
Configuration Specifications Operation frequency Up to 225MHz Input port 1 x HDMI Output ports 1 x HD-15 D-Sub (RGBHV or YPbPr) 1 x Analog L/R 3.5mm phone jack Output signal RGB: 0.7Vp-p 75ohm H/V: 3 to 5 Vp-p Or Y: 1 Vp-p 75ohm PB/Pr: 0.7 Vp-p 75ohm Input/Output resolution PC: 640x480= VGA59 , VGA60, VGA72, VGA75,...
